Overview

Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required.
Features

  • HDCP 2.2 compliant
  • Supports 18Gbps bandwidth
  • Supports resolution up to 4K@60Hz 4:4:4
  • Supports HDR function
  • Supports COPY/AUTO EDID control via dialling the DIP switch
  • Compact design for easy and flexible installation

Specifications

Technical

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: 480i ~1080p50/60Hz, 4K2K@30Hz, 4K2K@60Hz
  • HDMI Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
  • ESD Protection: Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

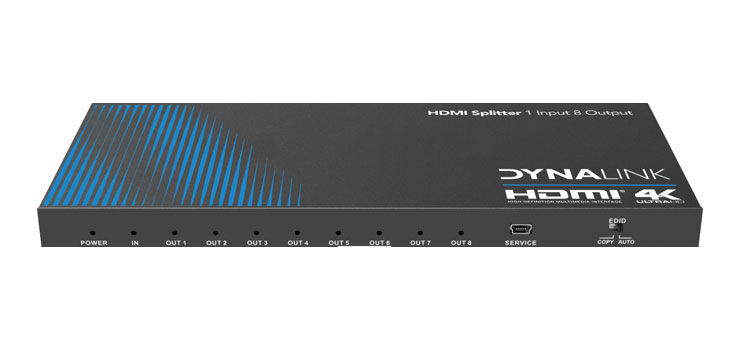

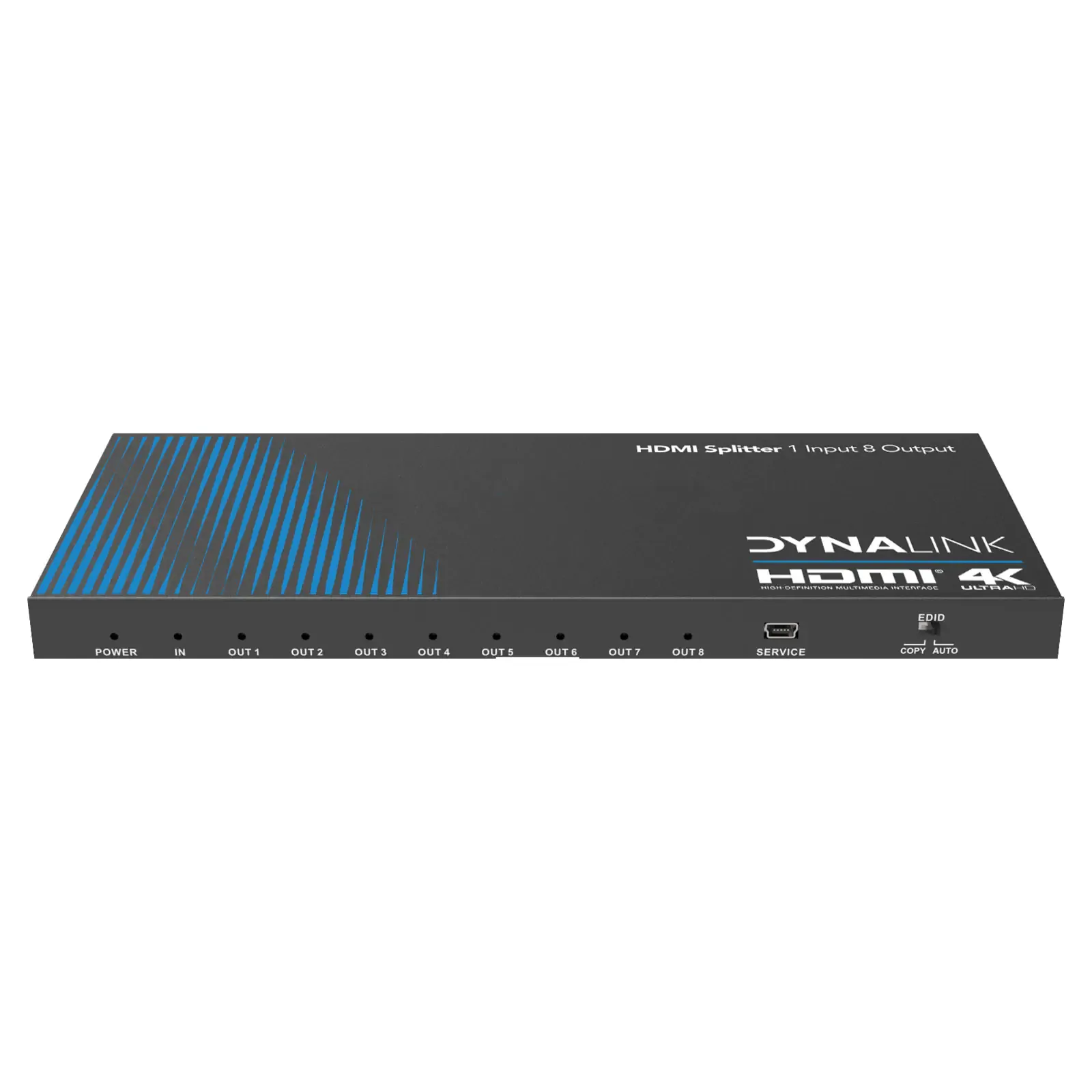

  • Input Ports: 1×HDMI Type A (19-pin female),  1×SERVICE (Micro USB, Update port)

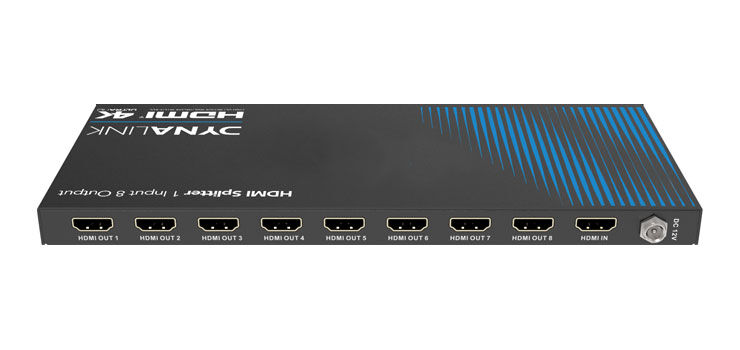

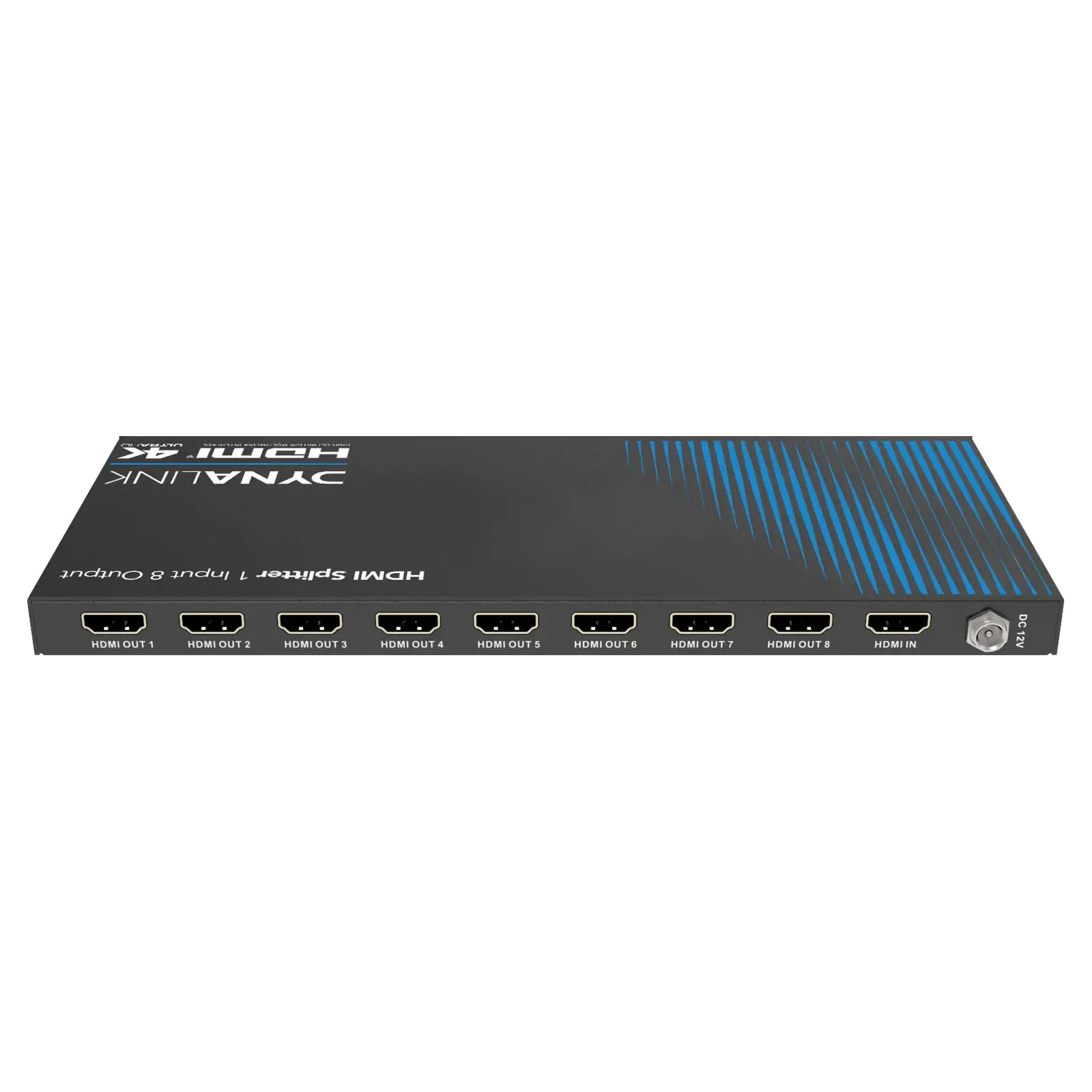

  • Output Ports: 8×HDMI Type A (19-pin female)

Mechanical

  • Housing: Metal Enclosure
  • Dimensions: 243W × 102D × 16Hmm
  • Weight: 572g
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A
  • Power Consumption: 6.15W
  • Operation Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 20 to 90% RH (non-condensing)

Package Contents

  • 1× 8 Way HDMI Splitter
  • 1× 5V/1A Power Supply
  • 1× User Manual





(A3136D)

SKU A3136D
Model # A3136D
Barcode # 9321758253045
Brand Dynalink
