RPR-CF-01029-PROMO Nextivity CEL-FI G41-JE Building LPDA Pack inc. Paddle Antenna

Revolutionise your building’s cellular connectivity with the Nextivity CEL-FI G41-JE and Wideband LPDA Antenna pack. This powerful combo delivers up to 3000 m2 coverage with +20 dBm output, multi-band support, and remote management. The lightweight LPDA antenna enhances signal with up to 9.5 dBi gain, perfect for large-scale indoor cellular solutions.

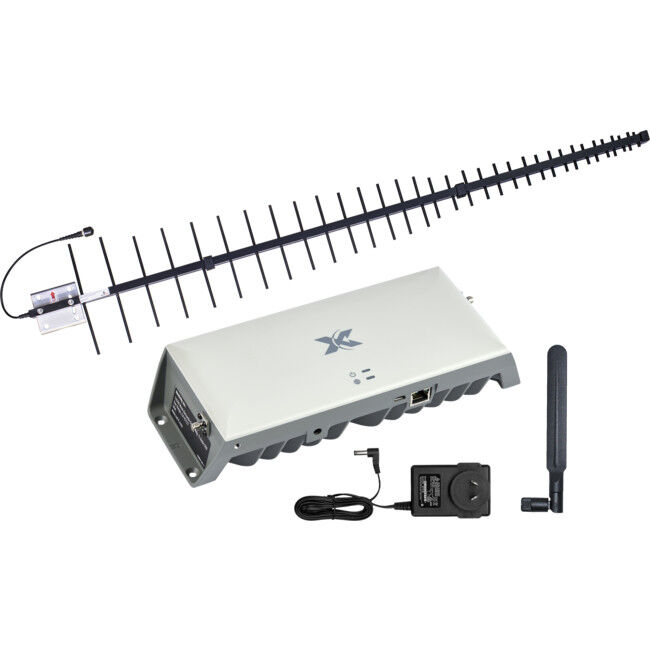

Nextivity CEL-FI G41-JE Building LPDA Pack inc. Paddle Antenna

The Nextivity CEL-FI G41-JE Building LPDA Pack, including a Paddle Antenna, is a comprehensive solution designed to enhance 4G cellular reception in large buildings. It combines the advanced features of the CEL-FI GO G41 with the efficiency of a LPDA Antenna, making it ideal for improving cellular connectivity in extensive indoor spaces.

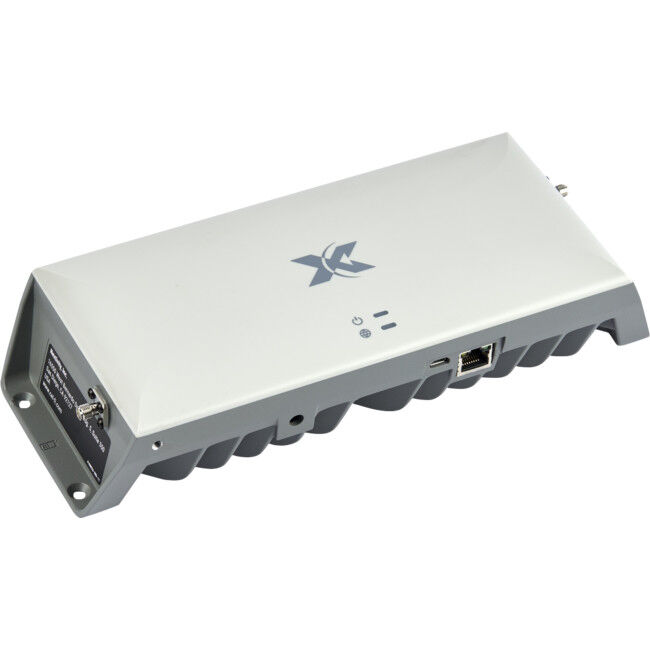

CEL-FI GO G41 Features:

• Enhanced Output Power

  • Boasts a higher output power (+20 dBm) compared to the G32 model, ensuring a larger coverage area.

• Carrier Flexibility

  • Easily switchable between Telstra, Optus, and Vodafone-TPG networks, accommodating changes in service providers.

• Large Coverage Area

  • Offers up to 3000 m2 of coverage, suitable for extensive inbuilding applications.

• Advanced Connectivity

  • Supports 3G, 4G, VoLTE, NB-IoT, and carrier aggregation with up to 40 MHz of relay bandwidth

• Remote Management

  • Includes an RJ45 Ethernet port for connection to the internet, enabling live monitoring and control via the WAVE Portal

• Frequency Bands

  • Operates on 700L/850/900/1800/2100/2600 MHz, with dual-band simultaneous relay.

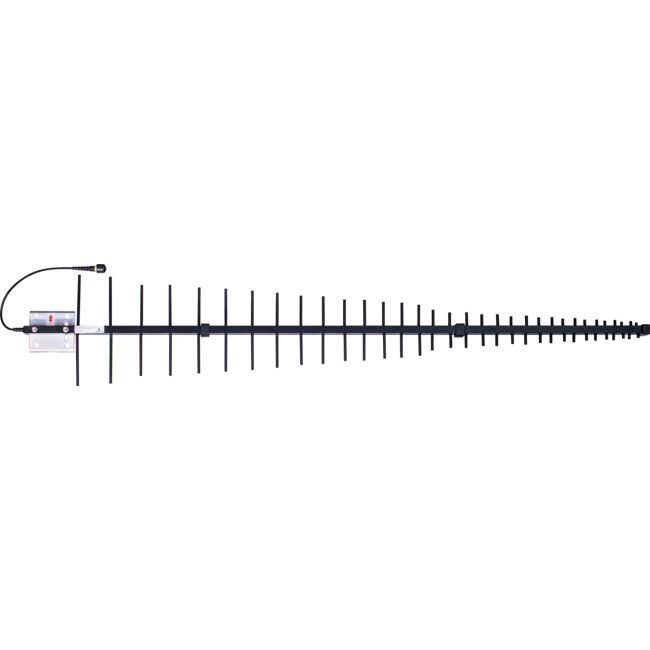

LPDA Antenna Features:

The Blackhawk LPDA Antenna is one of the most popular external antenna solutions for poor 3G / 4G voice and data service. This one antenna can be used on any mobile network, in any area without worrying about compatibility. It is the ideal roof-mounted antenna for CEL-FI repeaters.

The LPDA antenna covers all cellular bands between the 700 and 4000 MHz range with a high peak gain which projects maximum energy in the direction of the cell tower, while maintaining a wide enough beam to capture signal reflections off nearby buildings, hills, and signals scattered by trees.

FEATURES:

• 11.3 dBi peak gain across lower bands 698 to 960 MHz
• 11.5 dBi peak gain across bands 1695 to 2700 MHz
• 9.5 dBi gain across upper bands 3300 to 4000 MHz
• Ruggedized construction for Australian conditions
• Fully welded, powder coat aluminium design
• Stainless steel mounting clamp included
• 30 cm tail with pre-terminated choice of either N Female connector or 4.3-10 Female connecter
• Ideal for Telstra, Optus, and Vodafone 3G, 4G & 5G

Specifications:

This combined pack is an ideal choice for anyone looking to enhance cellular connectivity in large buildings, offering high performance, flexibility, and easy installation.
