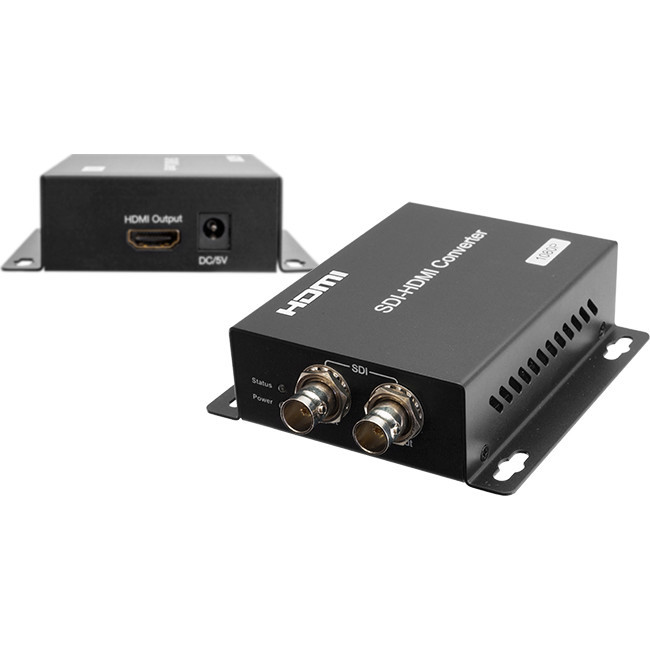

CCTV systems are moving towards digital video transmission via SDI or HD-SDI. With this in mind, and the fact most consumer Full HD Displays only have HDMI inputs, the SDI2HDMI performs a vital role in monitoring your digital CCTV system from your home entertainment system.

The SDI loop-out means you can connect your camera to your home video distribution system and your Digital CCTV system simultaneously without lag!

Why would I need to connect my CCTV system to my TV?

Most modern TVs feature a PIP (or Picture in Picture) mode where an alternate video input can be displayed on top of your current picture. This means you can keep an eye on your football game while checking your CCTV system to see who is at the door!

Features

  • SDI/ HD-SDI to HDMI
  • Equalized Looping SDI/ HD-SDI output
  • Supports 1080p@23.9/ 24/ 25 / 29.97/ 30/ 50/ 59.94/ 60Hz
    1080i@50/59.94/60Hz
    720P@50/59.94/60Hz
    576i @50Hz
    480i@59.94/ 60Hz
  • HDCP 1.4 Compliant
  • Uses 5V power (power adaptor included)

Specifications

Operating Temperature Range -5 to +35°C(+23 to +95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Formats 1080i @ 50/59.94/60Hz
1080p @ 25Hz
1080p @ 29.97Hz
1080p @ 30Hz
1080p @ 60Hz

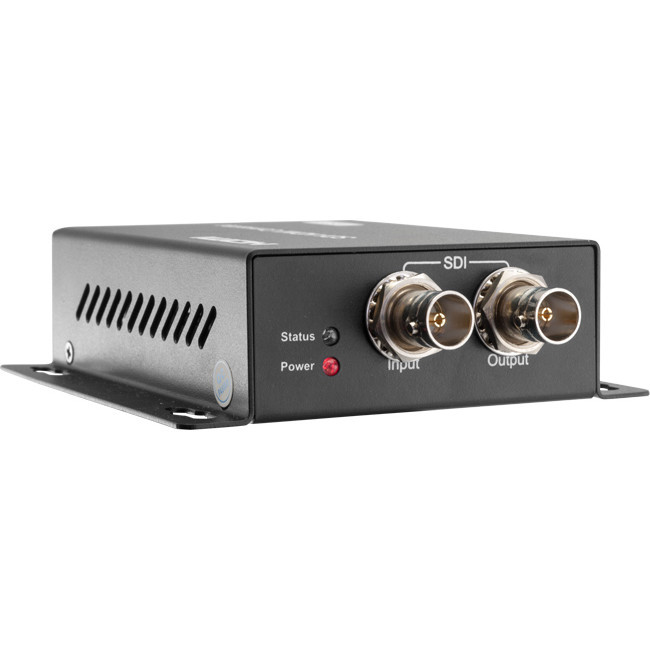

Video Input 3G-SDI / HD-SDI / SDI

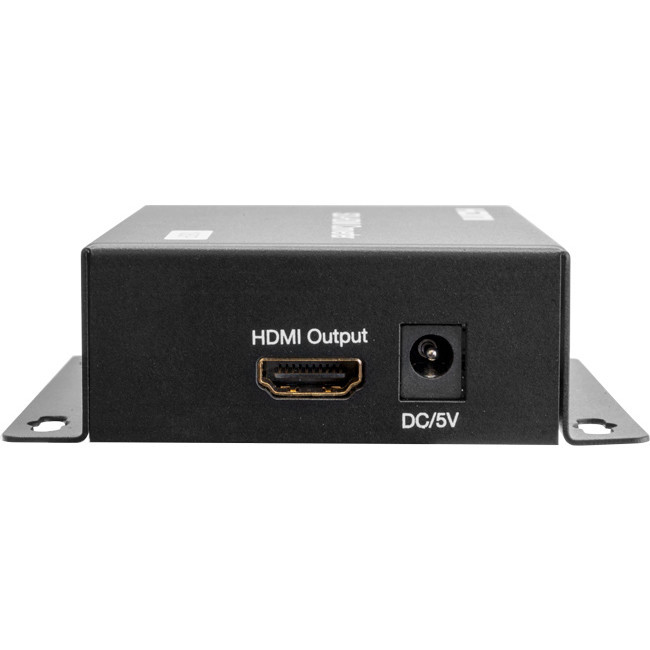

Outputs HDMI
SDI/HD-SDI Loop-out (75 ohm, unterminated)
HDMI
  • Standard Type A connector
  • Video:
    • 8-bit RGB 4:4:4 or
    • 10-bit YCbCr 4:2:2 (selectable by internal jumper)
  • Audio:
    • 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
HDCP Compliant HDCP
Power consumption 2.5W (Maximum)
Dimension (L×W×H) 95×95×29mm
Net Weight 245g

(SDI2HDMI)

SKU SDI2HDMI
Model # SX-SDH1
Barcode # 9328202015266
Brand DOSS
Unit Of Measure each
Assembled Width 0.531m
