Assistive Listening & Compliance

The introduction of AS1428.5 has set a new high in providing the most effective listening outcome for the hearing impaired.

The concept of installing any loop system without the proper confirmation of performance capability is now in the past.

So much so that today it is necessary to verify compliance by providing a signed commissioning document, confirming that your loop installation is, in fact, compliant and meets test parameters as required in tender specifications.

There is no doubt that, as the field of assistive listening installation expands... and it will, you are goingto need the right test equipment to meet this very specific requirement.

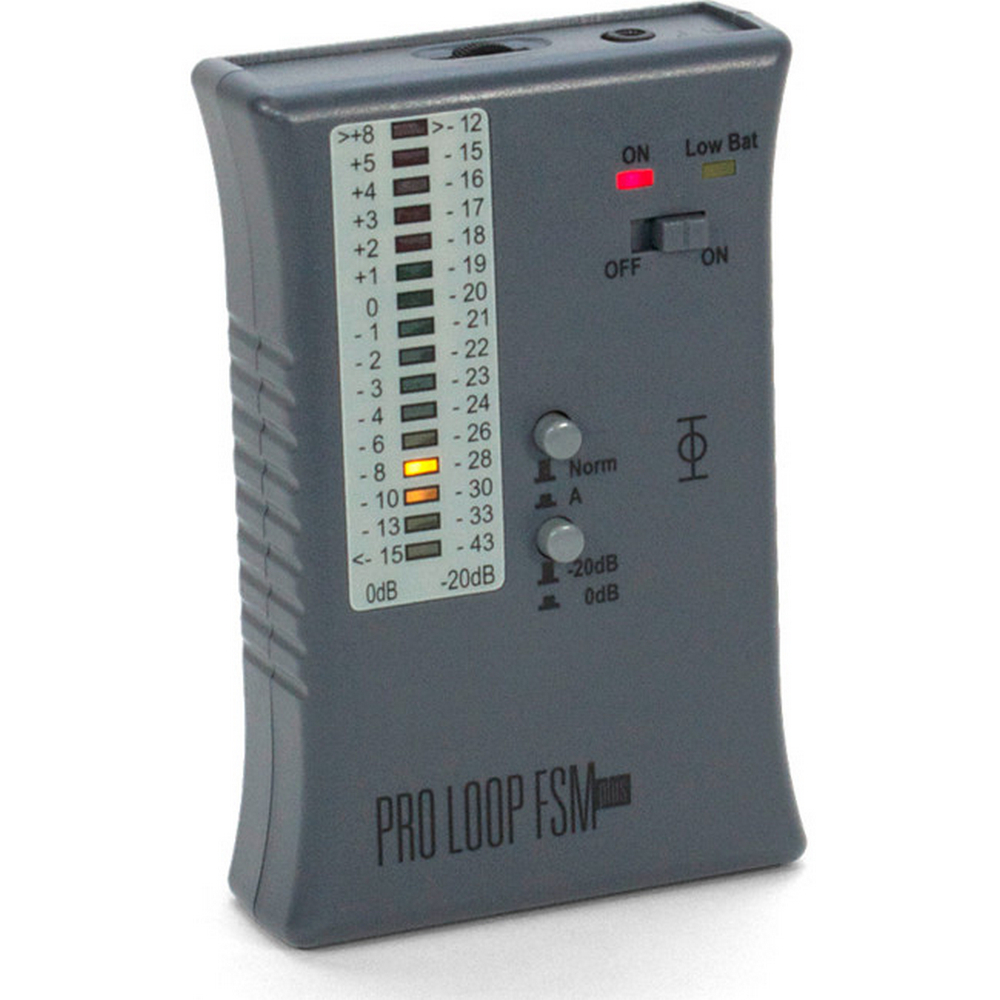

Humantechnik Proloop FSM plus (A-4292-0) is the answer.

The PROLOOP FSMplus is a measuring device that measures the magnetic field strength of induction loop systems according to IEC 60118-4:006.

The device delivers reliable RMS values on the output level, response frequency, AGC function (Automatic Gain Control), distortion and background noise in the induction looped tested.

In addition, it enables the user to make an acoustic evaluation of the sound using signal reproduction via earphones

A quality professional device, offering the following:

• Tests both background noise and field strength
• RMS-measuring range calibrated to 400mA/m = 0dB
• Multi-coloured LED's with 1dB resolution
• Headphone jack with volume control
• Simple design for simple and immediate use
• Portable size
• Light-weight
• Conforms to IEC 60118-4:006 standards

Proloop FSM plus is not only a complete audible and electronic testing meter, it represents true value for moneyagainst other alternatives...

Compare and prove it for yourself!

Features

• True RMS: 125 ms average time
• Crest factor: 3
• A filter
• Measuring range: +6 dB ...-40 dB (0 dB = 400mA/m)
• Power supply: 2 x 1.5V AA batteries, long battery life
• Display: Battery status control via LED
• Field strength: via LED-scale (approx. 1 dB resolution)
• Headphone jack with volume control
• Dimensions (W x H x D): 83 x 126 x 35 mm
• Weight: approx. 170 g (incl. batteries)
