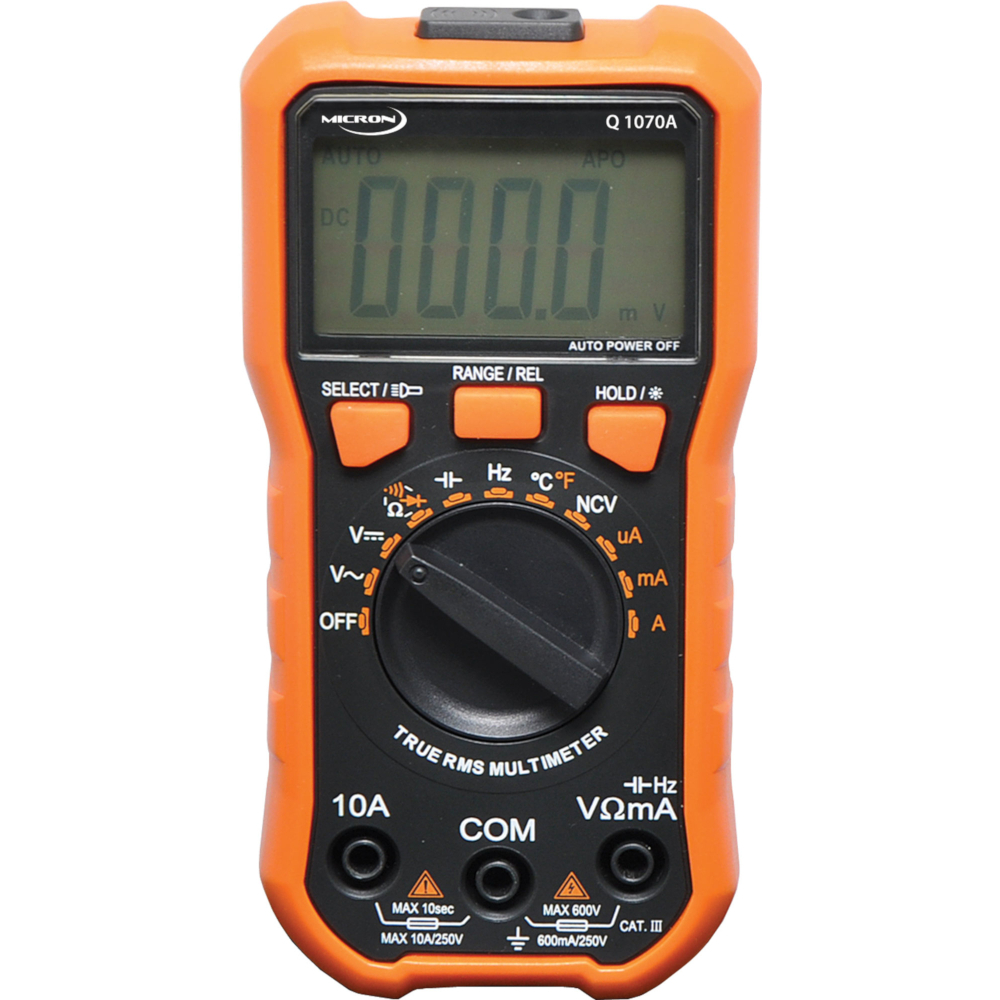

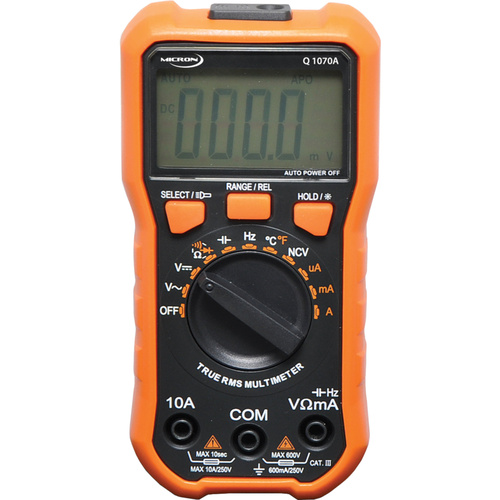

An affordable true RMS digital multimeter, with in built torch for the enthusiast or instrument technician. The benefit of true RMS is increased accuracy when measuring AC voltages, allowing a better comparison of theoretical and actual circuit values. Non true RMS meters generally only measure the average value of an AC waveform. This meter is packed with other handy features too, including a 60MHz frequency counter, capacitance up to 60mF, data hold, non contact voltage detection, auto power off and an easy to read 6000 count backlit LCD. Includes thermocouple sensor for temperature measurement.

Features

• True RMS AC measurement
• 6000 count 3.75 digit LCD
• Non contact AC voltage detection
• Temperature measurement.
• Frequency counter to 60MHz
• Capacitance measurement
• Fused 10A input
• Continuity and diode test
• Auto power off
• Low battery indicator
• 2x AAA battery included
• Data hold mode
• Display backlight
• In built torch
• Cat III 600V

Specifications

• Temperature: ‐40°C~1000°C, ±(1.0%+5)
• 0°F~1832°F, ±(1.0%+5)
• Voltage DC: 600mV, 6V, 60V, 600V (±0.5%+4d)
• Voltage AC: 600mV, 6V, 60V, 600V (±0.8%+6d)
• Current DC: 600μA, 6000μA, 60mA, 600mA, 6A, 10A(±1%+5d)
• Current AC: 600μA, 6000μA, 60mA, 600mA, 6A, 10A(±1.5%+5d)
• Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ(±0.8%+1d)
• Frequency:10Hz, 100Hz, 1000Hz, 10kHz, 100kHz,1MHz, 60MHz (±0.5%+4d)
• Capacitance: 60nF, 600nF, 6μF, 60μF, 600μF, 6mF, 60mF (±2.5%+5d)
• Diode test: Test voltage 2.2V @ 0.8mA
• Protection: 250V/10A fused
• Display: 3.75 digit LCD, 6000 count, backlit
• Dimensions: 72W x 37D x 140H mm
