FLUKE 116 CAT III 600V HVAC Multimeter with Temperature and Microamps

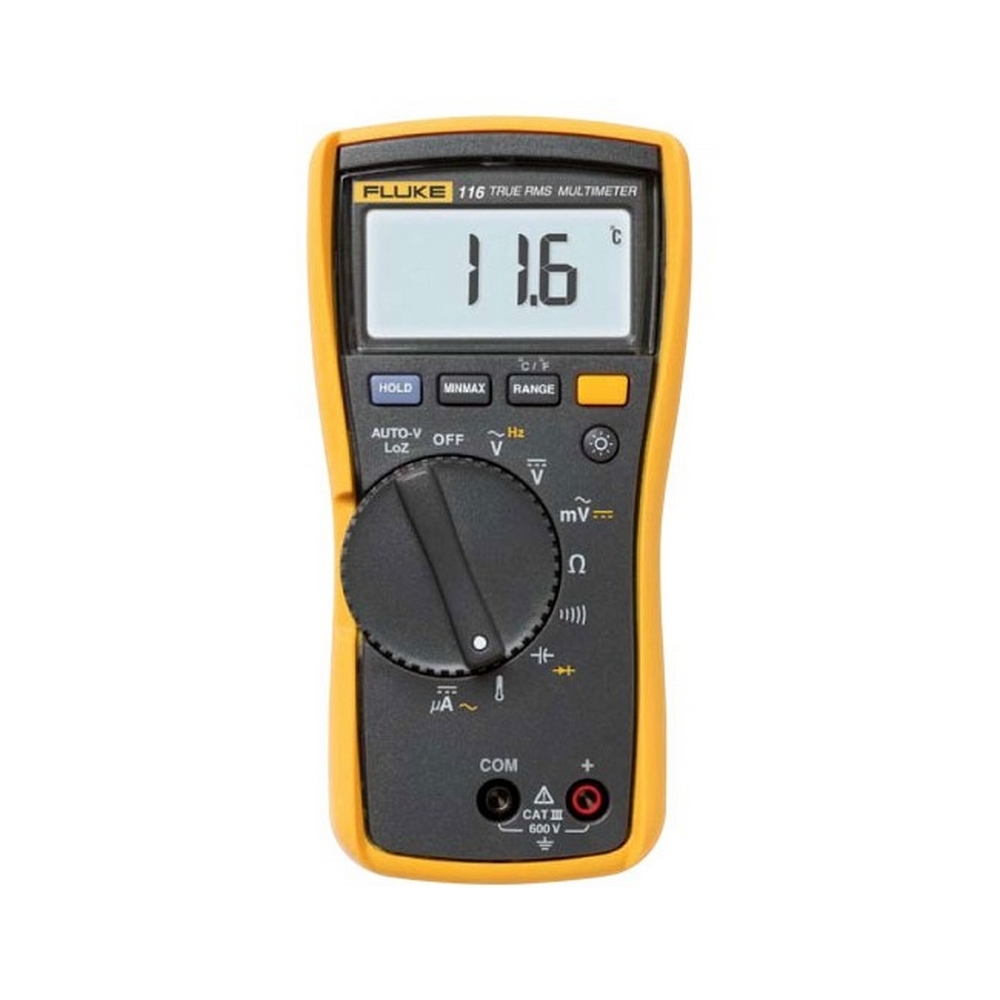

Fluke 116 HVAC Multimeter with Temperature and Microamps

Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature andmicroamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.

Built-in thermometer for HVAC applications
Microamps to test flame sensors
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak™)
CAT III 600 V safety rated

Specifications

Maximum voltage between any terminaland earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 V CAT III,Pollution Degree 2

Display

Digital:

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating Temperature

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

Accuracy Specifications

DC millivolts

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.00 V / 0.1 V
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

Auto volts

Range:	600.0 V
Resolution:	0.1 V
Accuracy:	2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)

AC millivolts1 true-rms

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)

AC volts1 true-rms

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.0 V / 0.1 V
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)

Continuity

Range:	600 Ω
Resolution:	1 Ω
Accuracy:	Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms

Range/Resolution:	600.0 Ω / 0.1 Ω
Range/Resolution:	6.000 kΩ / 0.001 kΩ
Range/Resolution:	60.00 kΩ / 0.01 kΩ
Range/Resolution:	600.0 kΩ / 0.1 kΩ
Range/Resolution:	6.000 MΩ / 0.001 MΩ
Accuracy:	0.9 % + 1
Range/Resolution:	40.00 MΩ / 0.01 MΩ
Accuracy:	1.5 % + 2

Diode Test

Range/Resolution:	2.000 V / 0.001 V
Accuracy:	0.9% + 2

Capacitance

Range/Resolution:	1000 nF / 1 nF
Range/Resolution:	10.00 μF / 0.01 μF
Range/Resolution:	100.0 μF / 0.1 μF
Range/Resolution:	9999 μF / 1 μF
Range/Resolution:	100 μF to 1000 μF
Accuracy:	1.9% + 2
Range/Resolution:	> 1000 μF
Accuracy:	5% + 20%

LoZ capacitance

Range:	1 nF to 500 μF
Accuracy:	10% + 2 typical

Temperature2 (Type-K thermocouple)

Range/Resolution:	-40 °C to 400 °C / 0.1 °C
Accuracy:	1% + 102
Range/Resolution:	-40 °F to 752 °C / 0.2 °F
Accuracy:	1% + 182

AC μamps true-rms (45 Hz to 500 Hz)

Range/Resolution:	600.0 μA / 0.1 μA
Accuracy:	1.0% + 2

DC μamps

Range/Resolution:	600.0 μA / 0.1 μA
Accuracy:	1.0% + 2

Hz (V or A input)2

Range/Resolution:	99.99 Hz / 0.01 Hz
Range/Resolution:	999.99 Hz / 0.1 Hz
Range/Resolution:	9.999 Hz / 0.001 Hz
Range/Resolution:	50.00 Hz / 0.01 Hz
Accuracy:	0.1% + 2

Notes:
1) All ac voltage ranges exept Auto - V / Lo-Z are specified from 1% to 100% of range. Auto - V / Lo-Z is specified from 0.0V.
2) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage.
2) Frequency is ac coupled, 5Hz to 50 kHz for ac voltage

Mechanical & General Specifications

Size

167 x 84 x 46 mm (6.57" x 3.31" x 1.82")

(116F)

12 Months
