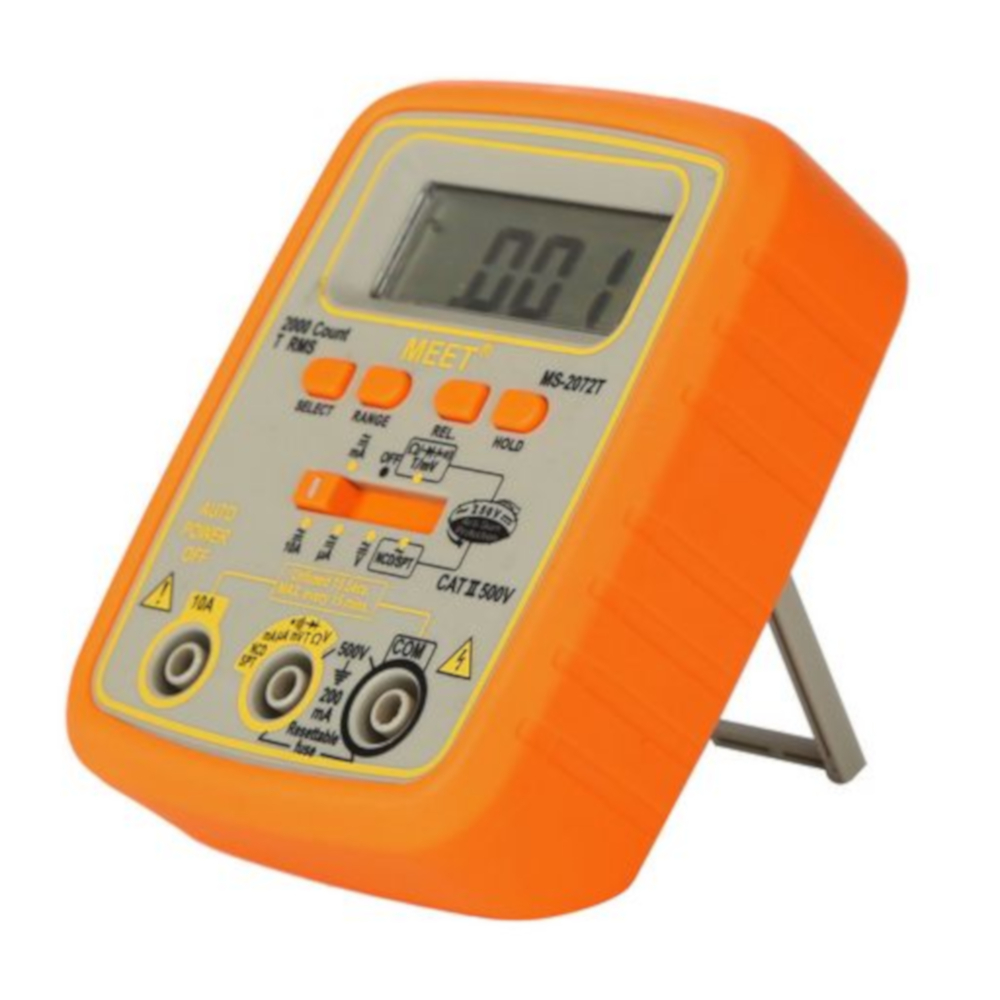

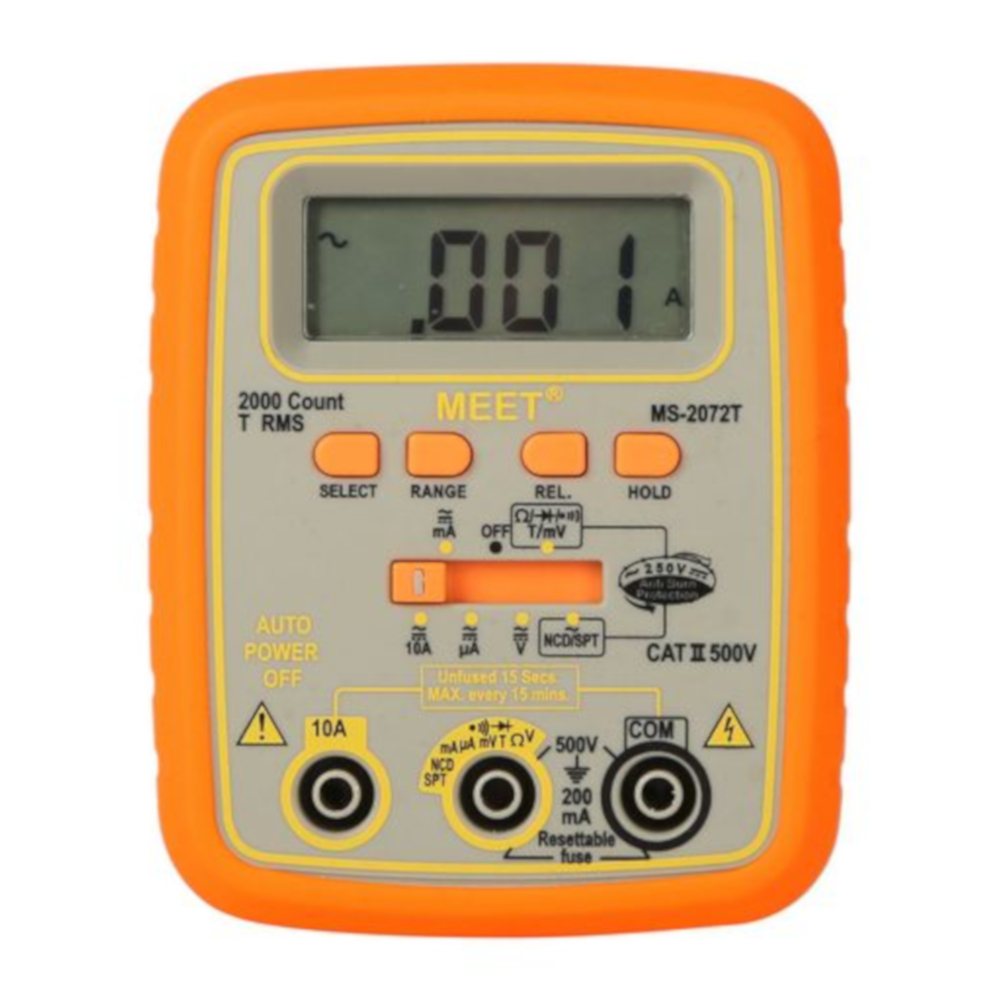

This palm size digital multimeter detector can be use to measure AC and DC voltage (Up to maximum voltage of 500V), AC and DC current (Up to 10A), resistance (Up to 20MΩ), diode test, continuity check with buzzer sound, non-contact AC detection (NCD), single probe test (SPD), and temperature measurement (-50°C to 1000°C) with optional temperature probe. True RMS measurement.
It has a clear to read LCD, 2x test leads and 2x AAA batteries. You can also get the optional temperature probe (TP207) for temperature measurement. Size: 100x80x33mm.
True RMS up to 500Vac/dc
Super Compact Sized Multimeter 100mm
Cordless AC voltage detector (metered)
Single Probe Test identify Live/Hot, ground, etc.
AC and DC Voltage measurement
AC and DC Current µA to 10A max
Auto or Manual range selection
Ohm (0-20MΩ) and Diode test
Relative measurement and hold
2000 count 3.5 digit LCD display
Power switch with Auto-Off
True RMS
2000 counts (3-1/2 digit)
Auto / Manual ‘V’ (AC / DC) (500V)
μA/mA/10A (AC / DC) current
Auto / manual resistor measurement : 0 20MΩ (approx.)
Continuity check : <50Ω Beep
Diode check : < 2.0 V
‘NCD’ Non-Contact AC Voltage Detector (audible and numerical display) > 25V (AC)
‘SPT’ Single Probe Test AC Voltage (Audible and numerical display) > 25V : Identify‘Live/Hot’and ‘Neutral’/Ghost wire/Voltage difference/Ground/Earthing connection
Input impedance 10MΩ (DC)
Software calibrated
-‘ OL ’ over range display
Auto power off : (5 mins) or always 'ON'
Freeze / Hold reading
Relative reading
Anti Burn Protection (ABP) on full range and up to 250V (AC / DC) (NOT at CURRENT range)
Resettable fuse, 200mA
Lοw battery indication (2.6V approx.)

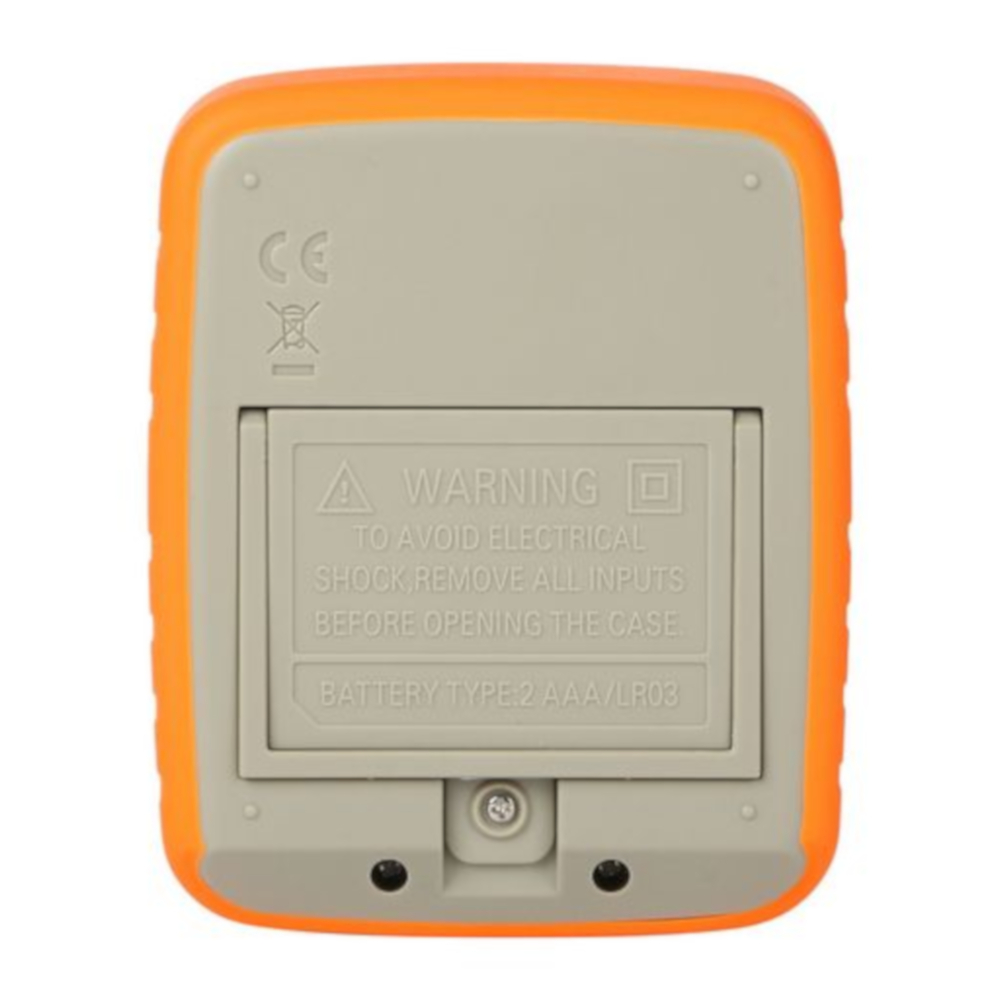

Battery powered : 2xAAA (R03/LR03)
Dimension (LxWxD) : 100x80x33mm
(MS-2072T)
12 months
SKU | MS-2072T |
Model # | MS-2072T |
Unit Of Measure | Each |
