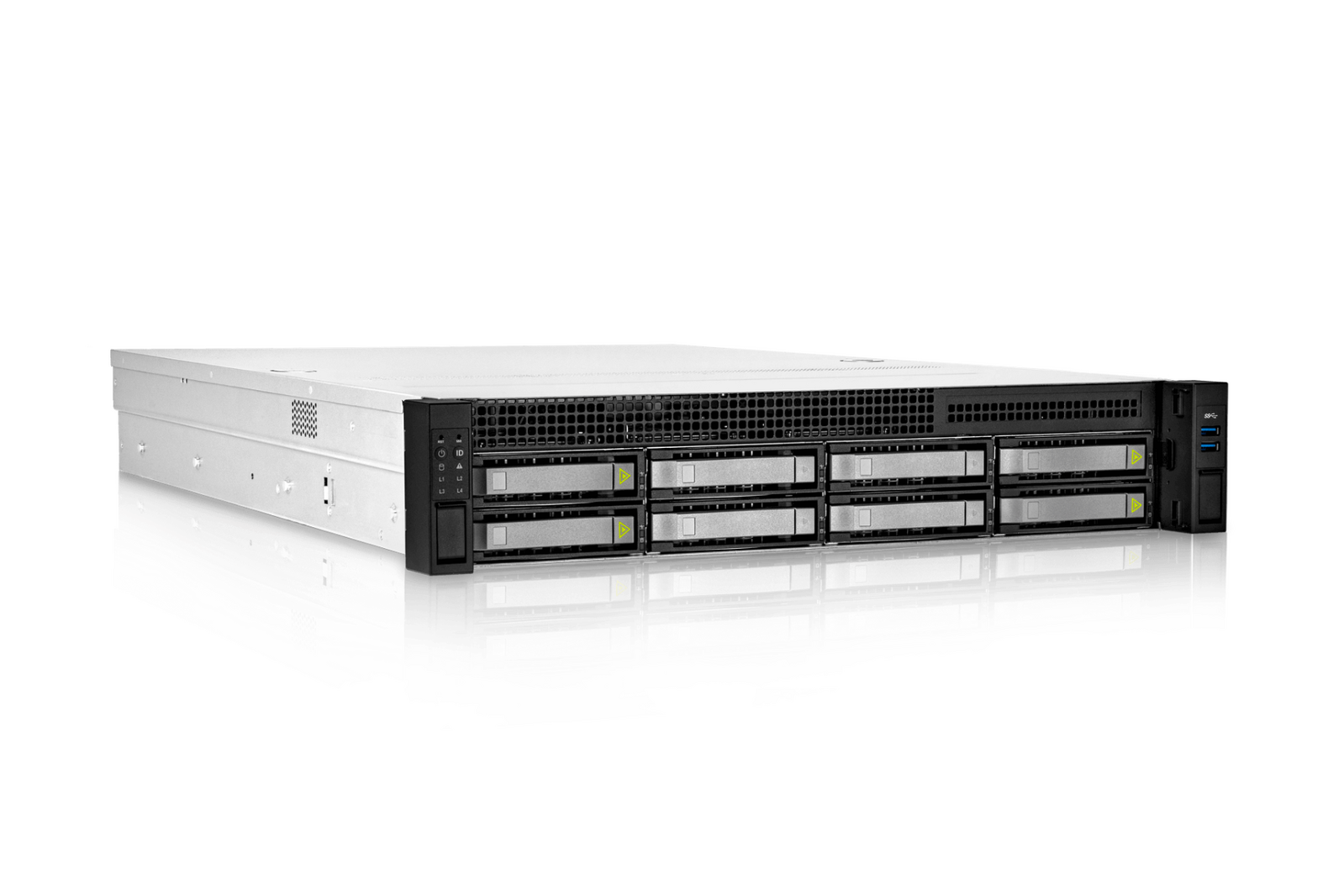

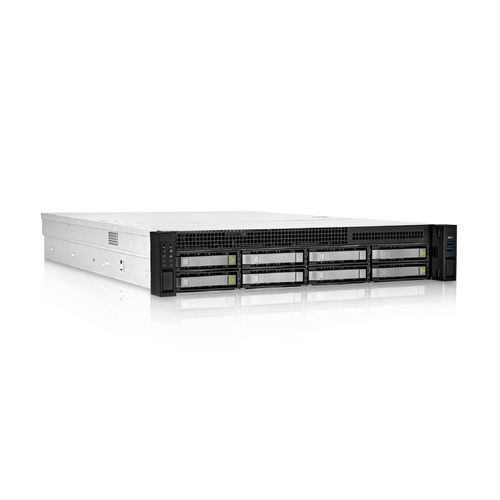

Inwin Rm208 2U Rack Chassis/2X550W Red Psus/8X3.5" Hot Swap Bays

Specification
Industry Standard	Compatible with EIA-RS310D standard 19" cabinets
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay	• External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4) • Internal 2.5" x 3 or x 4 (via slim ODD conversion tray) • Rear 2.5" screwless hot-swap HDD trays x 2 (supports SAS 12Gbps)
Power Supply	• 80 Plus Platinum Redundant PSUs • Watt: 550W
Indicators	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED
Front Control Panel	Power on/off, reset, NMI, ID SW, USB3.0 x 2
Backplane Type-1	• Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4
Backplane Type-2	• Host: Mini-SAS HD (SFF-8643) x 2 • HDD: SAS/SATA x 8
Cooling Fans	80 x 38mm PWM hot-swap fans x 4, 12000RPM
Expansion Slot	Low-profile PCIe slots x 7
Material	• Material: SGCC • Thickness: 1.2mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 87.5mm (26" x 17.6" x 3.4")
Package Dimensions (DxWxH)	905 x 610 x 228mm
Weight (Chassis Only)	• Net weight: 13.26kg • Gross weight: 16.56kg
Cubic Feet	4.44
Container Information	Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40'HQ: 378pcs

Backplane Specifications

Backplane Type-1	SAS3 & PCIe Gen4 hybrid backplane
Data Transfer Rate	SAS3 12Gb/s PCle Gen4 16GT/s
Dimension (W x H)	404.5mm x 52mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4
HDD Interface	SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4
