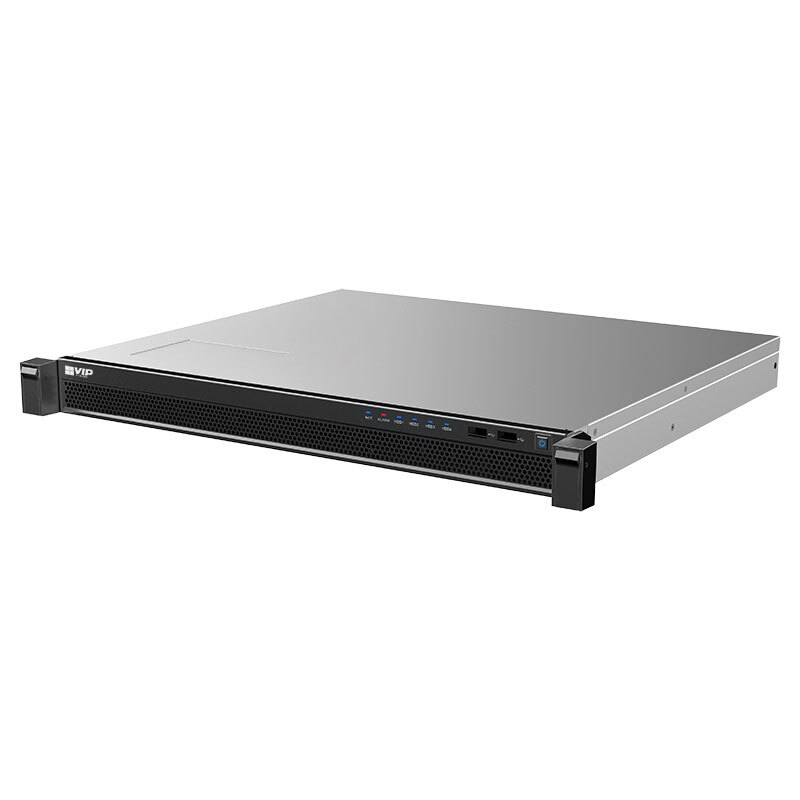

Built to handle large systems in a cost-effective manner, the NVR-SMC1 is a management centre preloaded with a GUI for your surveillance system and 256 preactivated video channels. Organise and manage IP surveillance, access control, video intercoms, AI functionality and much more in this scalable, all-in-one solution.

Product features:

• Centralised CCTV, access control & intercom management
• Set different access rights hierarchies per user/group
• Manage building access w/ RFID tag & fingerprint scan
• Event & alarm logging, searching, timestamp & overlay
• Create impressive live video walls displays
• Intelligent functions + ANPR, AI & face recognition
• PTZ control/tour, fisheye dewarp, audio, alarm, etc.
• Manual and automatic system backup/restore
• Built-in 1TB HDD - supports 3x 2.5” HDDs for storage
• High reliability with hot standby & hot swapping

** Depending on your installation needs, this product may require additional setup before delivery. Please contact your sales representative for assistance with pre-programming your NVR-SMC1 for your next installation.

Specifications

• Main Processor - 64 bit 4 core CPU (CORE-I3-6100)
• Operating System - Linux
• Power - Supports hot swap
• Memory - 8GB(1×8GB)
• Chassis - 1.0mm SGCC steel plate

Interface

• Network Port - 4 Ethernet Ports (10/100/1000Mbps )
• RS232 - Reserved
• RS485 - Reserved
• USB Port - Front panel: 2 × USB 3.0, Rear panel: 2 × USB 3.0 onboard panel:1 × USB 2.0
• HDMI - 2 HDMI, one as network config, another as spare
• VGA - 1 VGA, as network config
• HDD Installation - Built-in 1× 1T HDD disk (2.5”) for system
• Support - 3 x 2.5" HDD disks (2.5”) for Video & Picture storage

Environment

• Power
• Consumption - 70W ~ 120W (with HDD)
• Operating Environment - 0°C~45°C / 5%~90% RH
• Storage Environment - -20°C~70°C / 5%~90% RH
• Weight (Without Package) - 6.0kg
• Dimension - 440 x 398 x 44mm (1U)
• Installation Method - Standard 19” rack installation

Other

• Incoming Bandwidth -
• Internal HDD - 1 x 1TB HDD (built-in), 3 x 2.5" HDD supported
• PoE - No
• Rackmountable - Yes (included)
• Video Input - 256 channels
