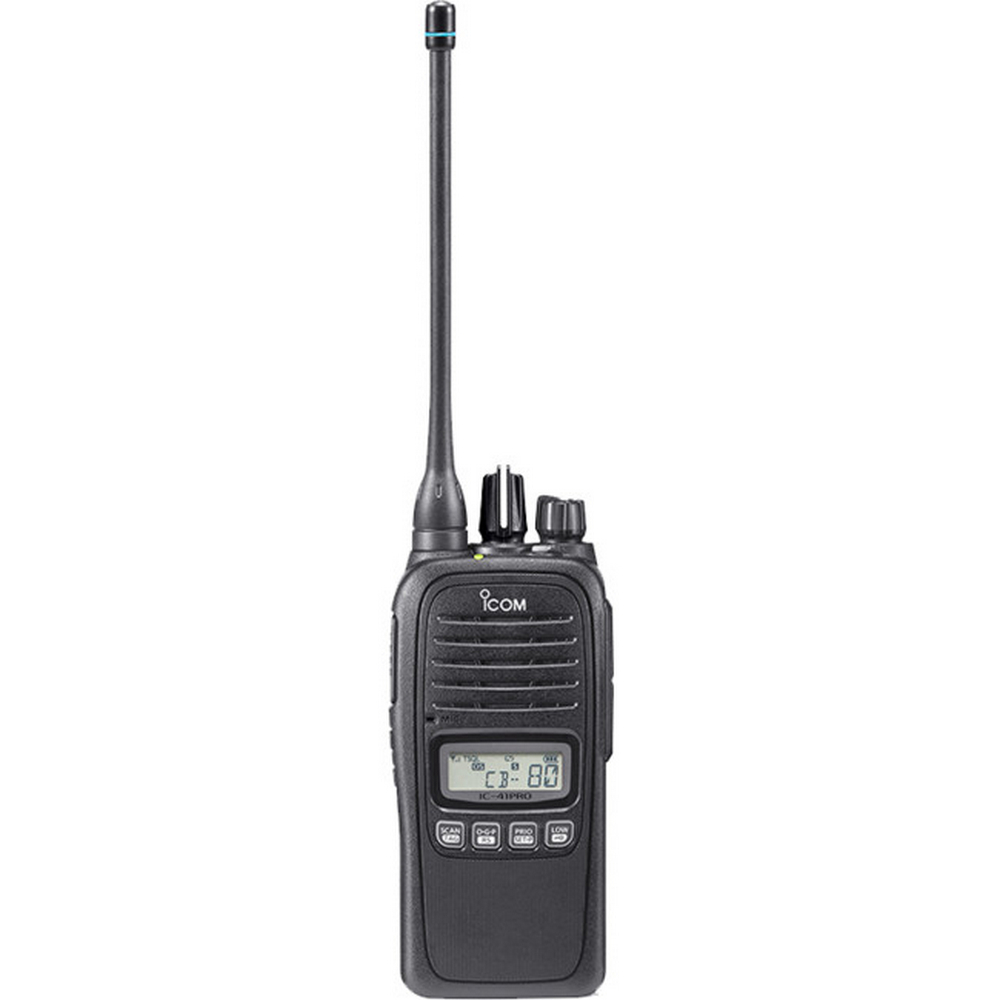

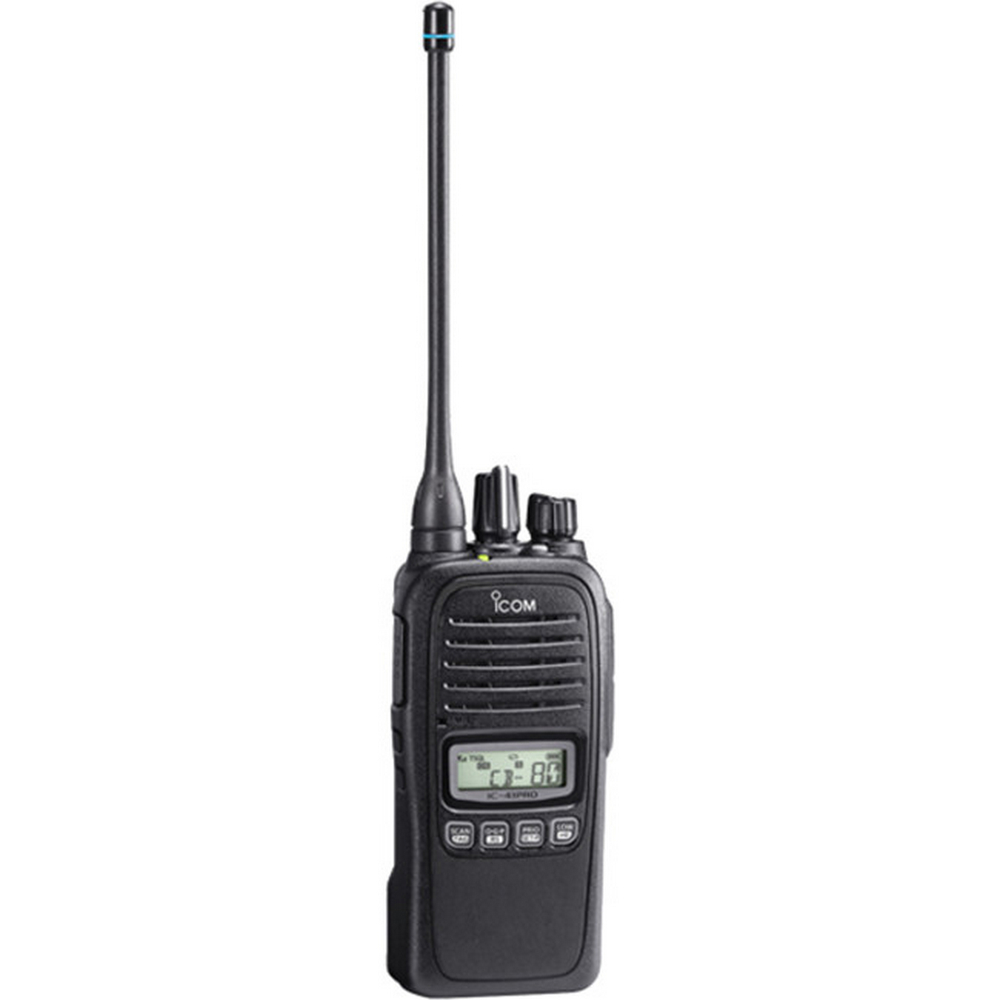

IC41PRO IP67 80CH UHF HAND HELD RADIO - ICOM

80 Channel UHF CB (*)

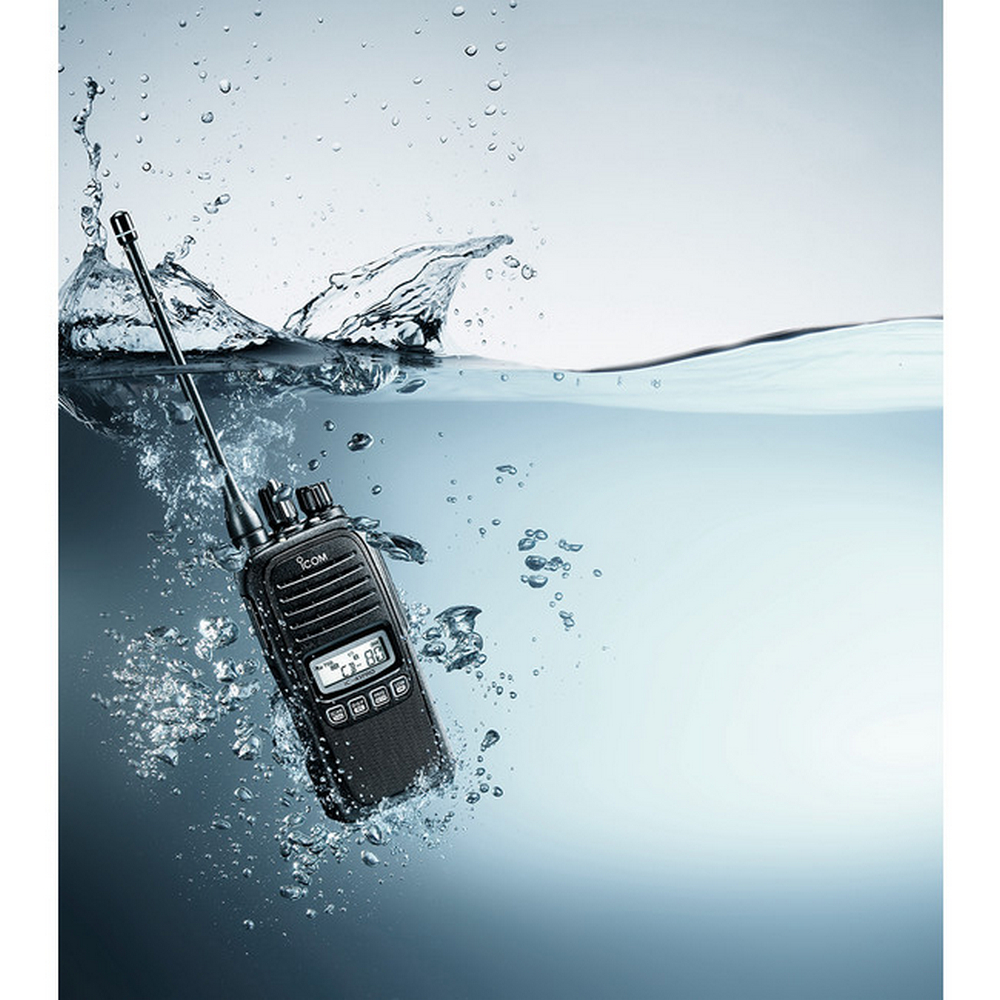

Waterproof and dustproof (IP67)
5 year warranty on radio
18hr typ. operating time with BP280
Simple operation
New rotary Channel Selector/Squelch control
Voice announcement of channel number
VOX capability with optional headset options
Scrambler capability built in (**)
Receive only Channels (**) – up to 35
Unique repeater scan plus open, group and priority scan
In-range indicator (ATS)
Output power 5 Watts (low power 1 Watt)
Built-in CTCSS/DCS (providing silent stand-by)
Selective Calling (SELCALL)
Duplex operation, providing repeater access
Compact and rugged construction (based on a commercial product)
Private Channels from 450-520 MHz available for commercial users (dealer programmable), requires FASC72U antenna (frequency between 490-520MHz)
CS-41PRO User softwareavailable for customisation of operation (requires OPC-478UCcable)

*80 Channel UHF CB, 61-63 not present, reserved for future use
** Must be enabled by dealer or via CS-41PRO software

Other outstanding features

Smart Ring and Automatic Transponder acknowledges if other Icom CB transceivers received your call or are within range
Pocket beep function audibly alerts when you receive signals from specified stations.
Optional HM-168LWP waterproof speaker-microphone available
Power save function
Radio stun function
Low battery indicator and alert tone
Auto power off function
Monitor function
PTT hold function
Key lock function
Auto power off
RX frequency setting**
Roger beep
Adjustable squelch level
Scarmbler**

{tab Specifications}

General

Frequency range 476.4250 MHz to 477.4125 MHz AUS CB 450 MHz to 520 MHz Private/Receive Only
Number of conventional channels: 128 ch
Type of emission: W: 16K0F3E (25.0kHz) AUS CB N: 8K50F3E (12.5kHz) AUS CB
Antenna impedance: 50 ohms
Input impedance (MIC): 2.2k ohms
Output impedance (audio): 8 ohms
Intermediate frequency: 1st 46.35 MHz, 2nd 450 kHz
Operating temperature range: – 30 ? to + 60 ?
Power supply voltage: 7.5 V DC
Current drain (approx.) Receive stand-by 80 mA Receive max.audio 300 mA (INT SP) Transmit Hi (5W) 1.7 A AUS CB
Dimensions: W 52.2 x H 111.8 x D 30.3 mm (with BP-280)
Weight: 270 grams (with BP-280) approx. Transmitter
Rated output power 5 W • Modulation: Variable reactance frequency modulation
Maximum permissible deviation ±2.5 kHz (N) ±4.0 kHz (M) ±5.0 kHz (W)
Frequency error: ±2.5 ppm
Spurious emissions: 70 dB min
Adjacent channel power: 60 dB min 69 dB typ. (N) 70 dB min 74 dB typ. (W)
Audio harmonic distortion: 1.0% typ. @ AF 1 kHz 40 % Deviation (W,M) 1.5% typ. @ AF 1 kHz 40 % Deviation (N)
FM Hum and Noise 34 dB min 40 dB typ. (N) (Without CCITT FILTER) 40 dB min 46 dB typ. (W) 40 dB min 48 dB typ. (N) 43 dB min 51 dB typ. (M) 45 dB min 53 dB typ. (W)
Limiting characteristic of modulator: 60 % ~ 100 % ofmax. deviation
