VHF & UHF Masthead Amplifier with 43dB Gain, Fully Shielded Housing, Separate or Combined input & 4G/LTE filtering

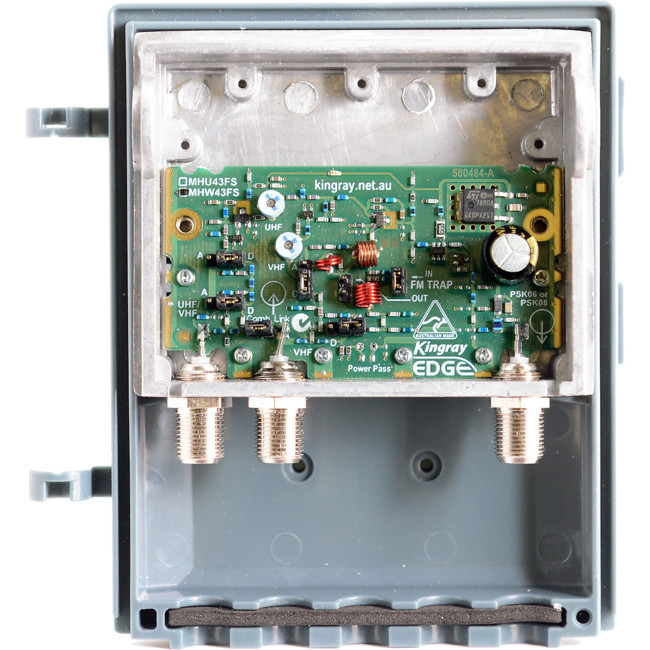

• The MHW43FS is a VHF/UHF TV masthead amplifier, enclosed in a fully shield die-cast housing, with the capability of amplify signals either from combined or separate VHF and UHF antennas.
• The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out.
• In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz.
• This amplifier also has the ability to allow FM radio signals to be passed through.
• The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately).

Features

• Frequency Range 174-230 MHz & 520-694 MHz
• 43dB UHF Maximum Gain
• 35dB VHF Maximum Gain
• 10dB Gain Control for UHF
• 16-12dB Tilt Control for VHF
• Separate VHF & UHF Inputs or Combined Input
• FM Radio 88-108 MHz Pass Through Selectable
• 4G/LTE Filtering
• Fully Shielded Die-cast Housing
• Weatherproof Housing
• High Output Figure of 108dB IMR3 (DIN45004B)
• Connectors: F-Type
• Power Consumption: 80mA
• Suitable Power Supply: PSK06 Series or PSK08 Series
