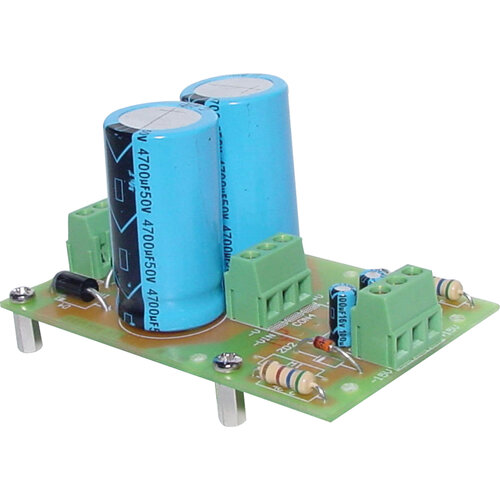

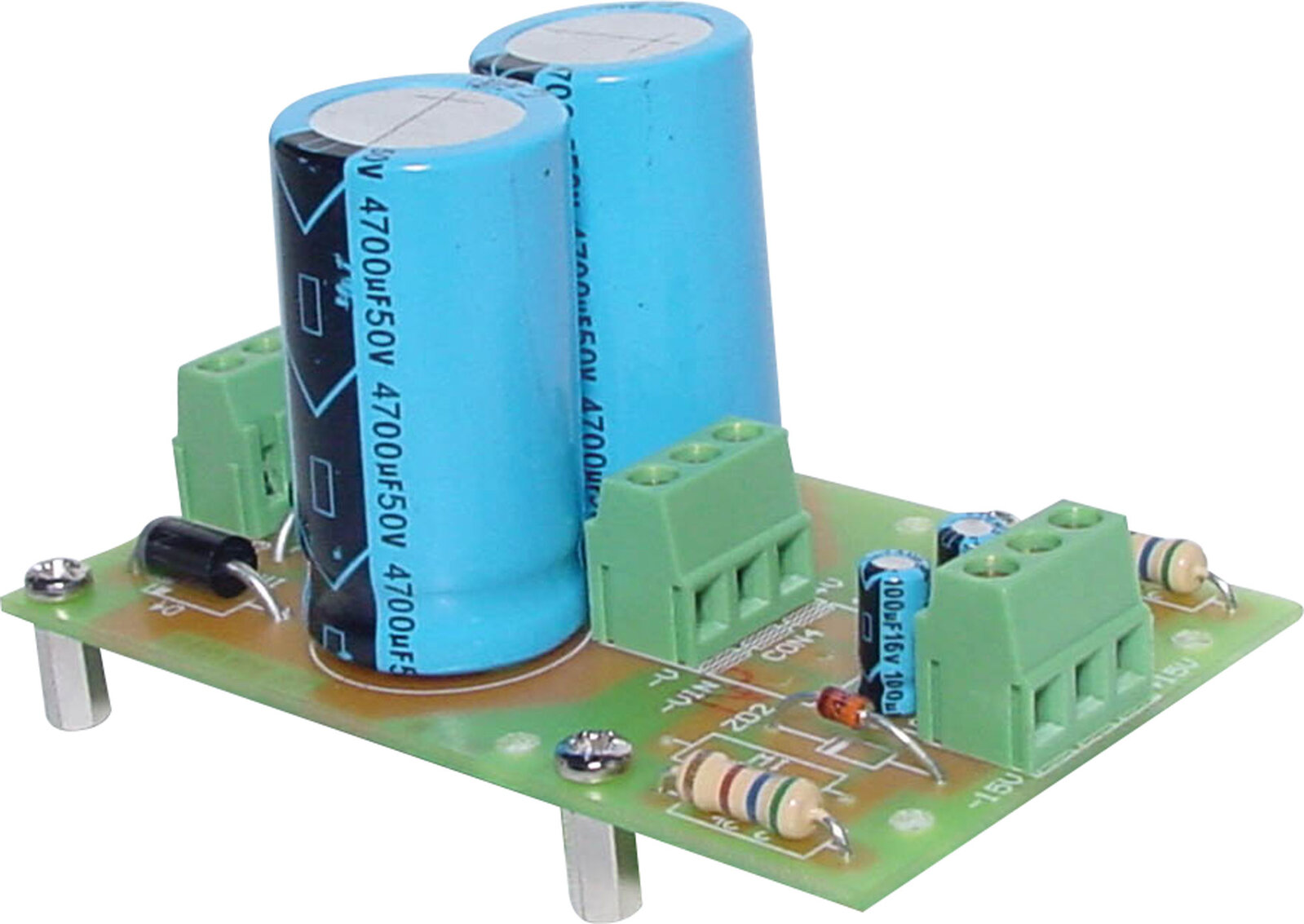

Overview

  • This is the recommended power supply for the K 5116 Amplifier Module Kit.
  • The supply has been designed to use the M 5118 toroidal transformer.
  • The secondary feeds a full-wave bridge rectifier and filter, formed by four 1N5404 diodes and two 4700µF 35V capacitors.
  • The output is about ±25V unloaded and is suitable for powering one or two amplifier modules.


Important Note For Kit Buyers:

  • This product is supplied in component form and requires soldering, drilling, and assembly.
  • We recommend users are familiar with at least basic electronic principles and have the ability to solder.



(K5117)

SKU K5117
Model # K5117
Barcode # 9321758120095
Brand SILICONCHIP
