OVERVIEW

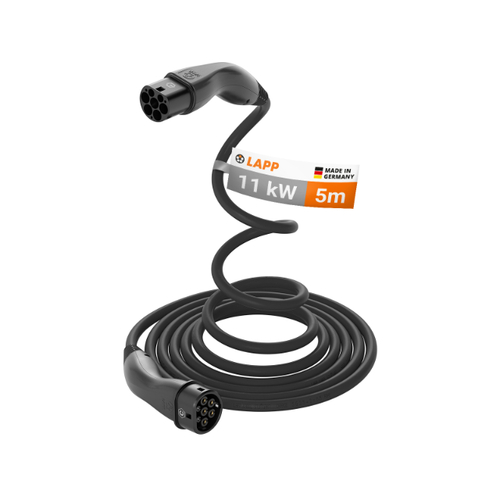

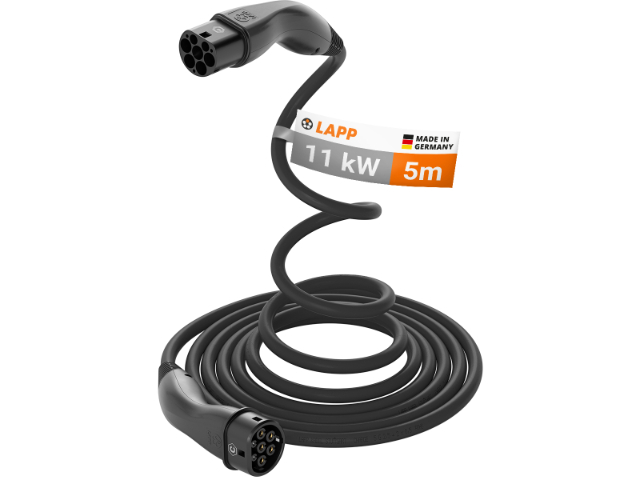

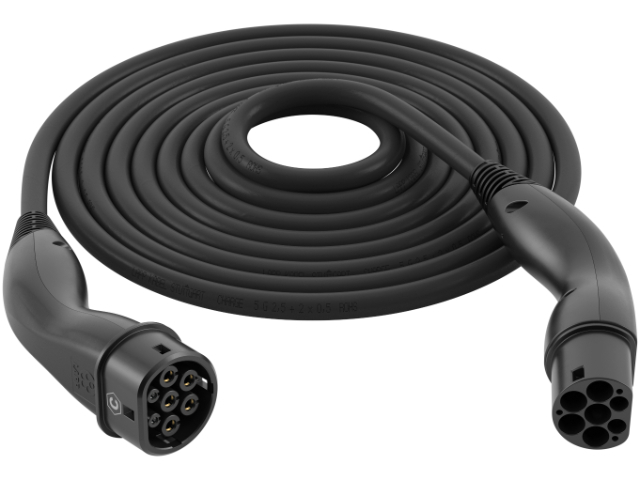

LAPP HELIX Type 2 charging cables connect your EV to the charging station, charging pole or wallbox - for easy charging at home or on the road. Simply connect the coupling of the cable to the car and the plug to the power source.The charging process is automatically started and finished by the on-board electronics.LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

FEATURES

• The Type 2 charging cable from LAPP allows easy and fast charging with up to 11 kW at a public or private charging station or wallbox.
• Patented, self-retracting cable with shape memory that rolls up in a helical shape after use and is quickly stored away
• Dimensionally stable design prevents the EV charging cable from tangling

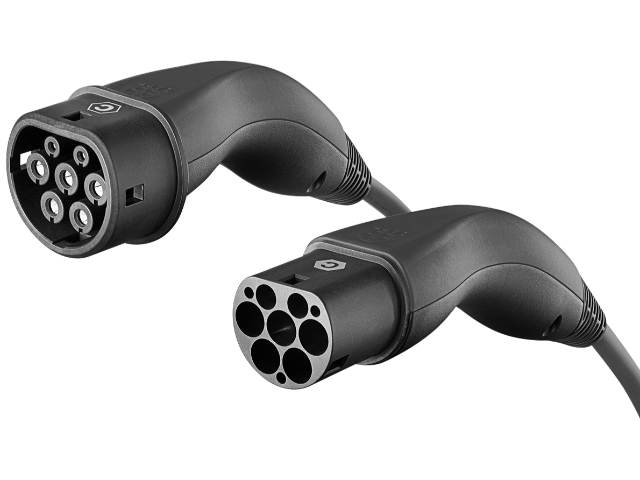

• Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
• Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
• The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
• Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)

SPECIFICATIONS

• Connection Type - Type 2 Male Plug
• Connection 2 Type - Type 2 Female Plug
• Loading Capacity Up To - 11 kW
• Charging Mode - Mode 3
• Max Current Capacity - 20
• Rated Voltage - 440 V (AC)
• Number Of Phases - 3
• Inner Conductor Cross-Section - 2.5 Mm²
• Cable Type - Helix Cable
• Cable Length - 5 m
• Protection Class - Ip55
• Model Designation - 5555935001
• Color - Black
• Special Feature - Shape memory thanks to HELIX cables, Silver-plated, corrosion-resistant contacts, solid rubberized ergonomic grip design, VDE certified, VDE certified
• Operating Temperature From - -40 °C
• Operating Temperature Up To - 50 °C
• Packaging Type - Retail Box.
