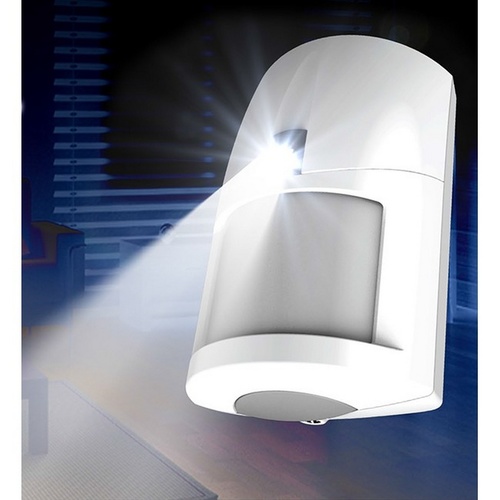

106-170 NESS LUX RADIO PET AWARE PIR WITH 15MT RANGE MAX

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels.

LUX shares all the features and benefits of the Ness Radio PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count and extremely long battery life, up to 10 years. Ceiling mounting is also available with the addition of a 106-169

For safety and convenience, LUX’s night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as itdetects motion and stays on for an extra 10 seconds after motion has stopped.

LUX PET AWARE model with unique Opposing Fields lens technology has a superior ability to discriminate between household pets and unwanted human intruders allowing you to secure your home with your pets indoors.

Features:

15m x 15m wide angle coverage
Look down ‘Creep Zone’
White LED motion activated night-light
Adjustable Pulse Count
Adjustable Range
High R.F. and E.S.D. immunity
High white light immunity
SAWR stabilised radio transmitter
Capsule design with sealed electronics
Front cover tamper protection
Long life Lithium batteries supplied
Low battery warning signal
Hourly Supervision radio signals
Includes wall mounting bracket
Optional ceiling bracket available

Specs:

DIMENSIONS	112(h) x 72(w) x 48(d) mm
MOUNTING HEIGHT	2.1m – 2.4m
COVERAGE	Up to 15m x 15m @ 90°
DETECTOR ZONES	20 dual element zones
PULSE COUNT	Selectable 1–2 or 3–4
RANGE	Selectable High/Low. 15m max./12m max.
SENSOR	Dual element pyroelectric
ALARM INDICATION	Blue alarm LED
NIGHT-LIGHT	White LED with adjustable threshold, Dark/Dim Light
ALARM PERIOD	5 seconds
OPERATING VOLTAGE	3V DC
BATTERY	2 x CR123A Lithium
QUIESCENT CURRENT	< 14µA
RADIO FREQUENCY	304MHz / 868MHz depending on region
TRANSMIT POWER	100µW
