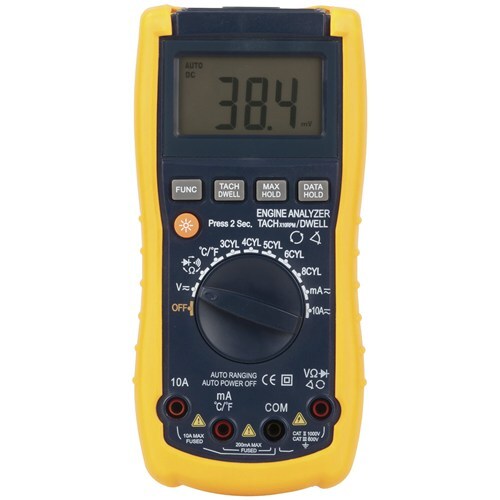

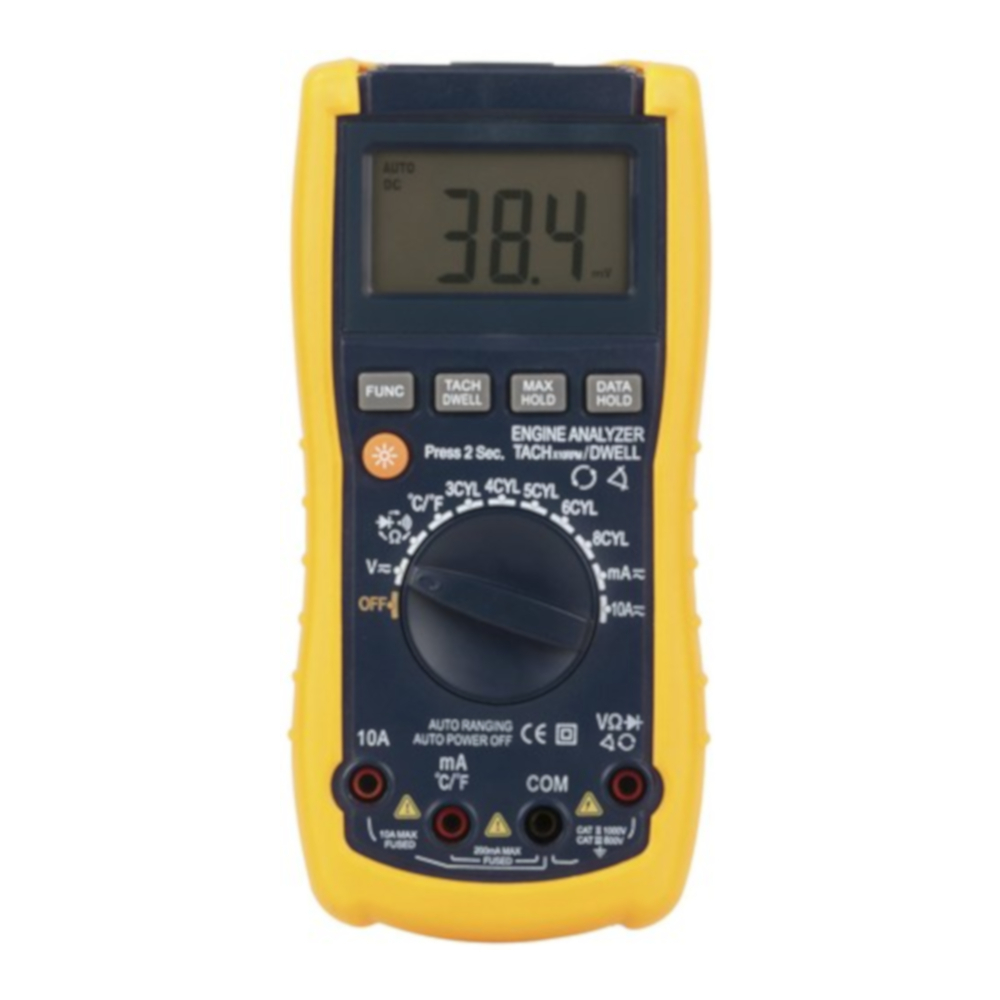

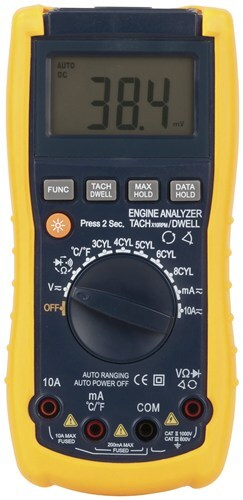

Perfect for the workshop as an an engine analyser as well as basic DMM. Full dwell angle measurement and tacho, with max / data hold and bright backlit LCD.

Features:
• Dwell angle
• RPM x10
• Data hold
• Max hold
• Continuity & diode test
• Backlight
• Auto power off
• Display: 2000 count
• Measurement Category: Cat II 1000V / Cat III 600V
• Diode Test
• Continuity Test

Specifications

Continuity buzzer : true
AC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
AC Current Accuracy : 1.8%%
DC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
DC Current Accuracy : 1.5%%
Resistance Ranges : 200.0Ω, 2.0kΩ, 20.0kΩ, 200.0kΩ, 2.0MΩ, 20.0MΩ
Resistance Accuracy : 1.0%%
Outdoor / Exterior Scale : -20.000000°C, 1000.0°C
Outdoor / Exterior Scale : -4.000000°F, 1832.0°F
AC Voltage Ranges : 2.0V, 20.0V, 200.0V, 700.0V
AC Voltage Accuracy : 1.0%%
DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
DC Voltage Accuracy : 0.8%%
Records Maximum : true
Data Hold : true
Display Type : LCD
Display Backlight : LED Backlit
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600.0V
Count / Maximum Reading : 2000.0 count
Autorange : true
Measures dwell : true
Length : 180.0mm
Width : 87.0mm
Depth : 50.0mm
Battery type : AA
Battery Quantity : 2.0pc
Measurement Range Count : 2000.0 count
Meter Input Impedence : 10.0MΩ
Measures diode : true

(QM1446)

SKU QM1446
Model # QM1446
Barcode # 9319236739242
Brand DIGITECH
Unit Of Measure ea
