Brand New

Selling Unit EACH

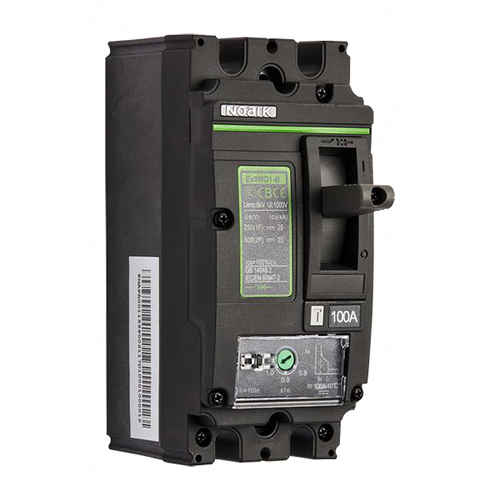

Description N28708 MCCB EX9MD1B 100A 500V 2 Pole DC Circuit Breaker
Application Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage 500V
Size 100A
Width 157mm
Height 91.5mm
Length/Breadth/Depth 70mm
Weight 1200g
Brand

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD1B TM DC100 2P
Poles 2 (250VDC per pole)
Current Rating (A) 100A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

(65002-041)

SKU 65002-041
Brand Noark
