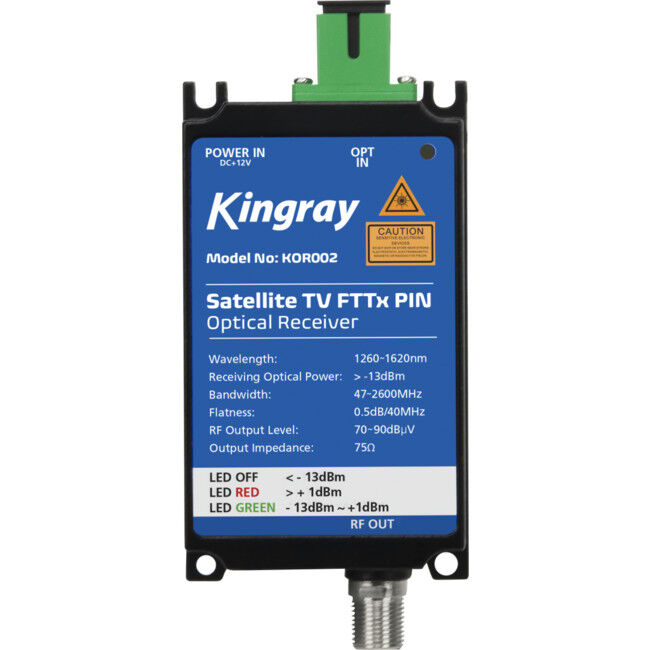

KOR002 OPTICAL FIBRE RECEIVER (1260~1620NM)

The KOR002 Optical Receiver uses a high-sensitivity PIN detector. It can receive digital signal (DVB-C, DVB-T), as well as satellite TV (DVB-S) within the frequency range of 47~2600MHz on a single fibre.

The optical receiver is powered by a Kingray PSK12S power supply (sold separately). Foxtel Approved.

Features:

• Frequency Range 47~2600 MHz
• Input Wavelength 1260~1620nm
• Receiving Sensitivity Range: -13dBm to +1dBm
• RF Output Level: Typically 70~90dB
• High linearity, suitable for Digital TV and SAT-IF application
• Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signal can be received via a single fibre at the same time
• LED Indicator
• Compact in design, wall mountable and light weight
• Optical Connector: SC/APC
• RF Connector: F-Female
