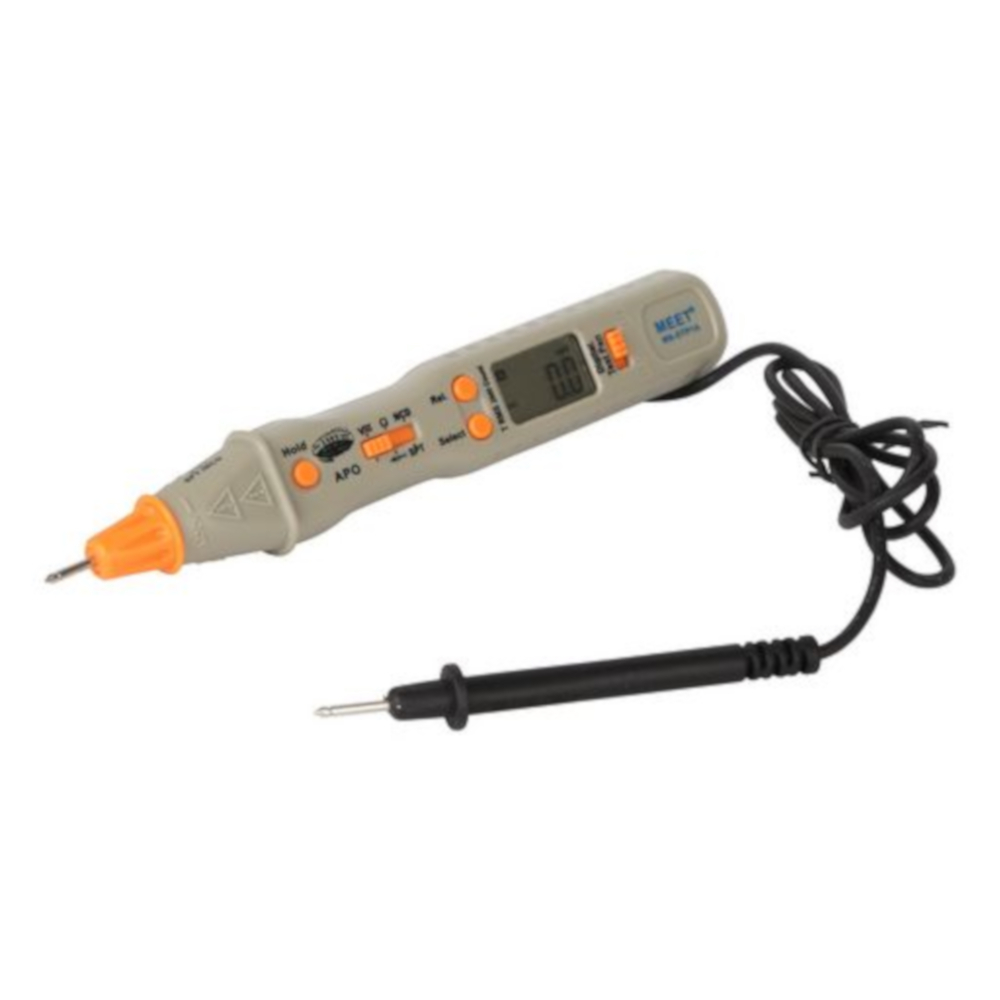

This pen size digital multimeter detector can be use to measure AC and DC voltage (Up to maximum voltage of 300V), resistance (Up to 20MΩ), diode test, continuity check, non-contact AC detection (NCD) and single probe test (SPD).
It has a clear to read LCD, and 2x 1.5V LR44 batteries. True RMS measurement. 250V anti burn protection. 2000 counts.
Size: 161x24x24mm.

Convenient Pen Sized Multimeter 160mm
Cordless AC voltage detector (metered)
Single Probe Test identify Live/Hot, ground, etc.
AC and DC Voltage measurement
Auto or Manual range selection
Ohm (0-20MΩ) and Diode test
Relative measurement and hold
2000 count 3.5 digit LCD display
+ Probe retracts. - probe attached
Includes 2x LR44 batteries
Power switch with Auto-Off

True RMS
2000 counts (3-1/2 digit)
Auto "V" (AC / DC) (300V)
Auto / manual resistor measurement : 0 20MΩ (approx.)
Continuity check : <50Ω
Diode check : 2.0 V
Non-Contact AC Detector (NCD) with patented numerical digital display of AC signal strength)
Single Probe Test (SPT) AC Voltage (Audible and numerical display) > 25V : Identify "Live/Hot" and "Neutral"/Ghost wire/Voltage difference/Ground/Earthing connection
Freeze / Hold reading
Auto power off : 5 mins or Continuously on
Relative reading (Rel)
Input impedance 10MΩ
Software calibrated
Over range display
Attached test leads
Anti Burn Protection (ABP) on full range and up to 250V (AC/DC)
Lοw battery indication (2.6V approx.)
Battery powered : 2 x 1.5V (L1154 / LR44 / AG13)
Dimension (LxWxD) mm : 161x24x24

(MS-DTP1A)

12 Months

SKU MS-DTP1A
Model # MS-DTP1A
Unit Of Measure Each
