Overview

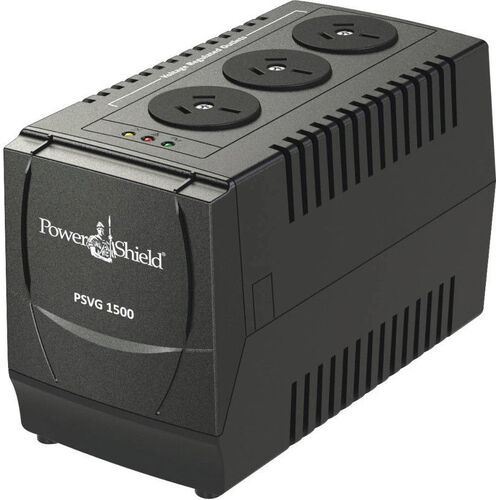

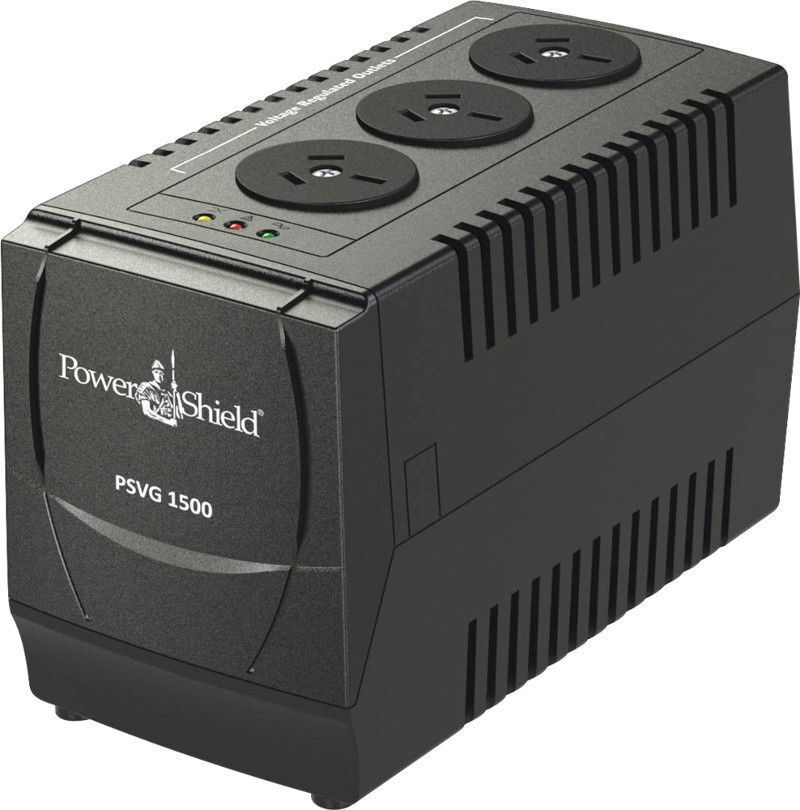

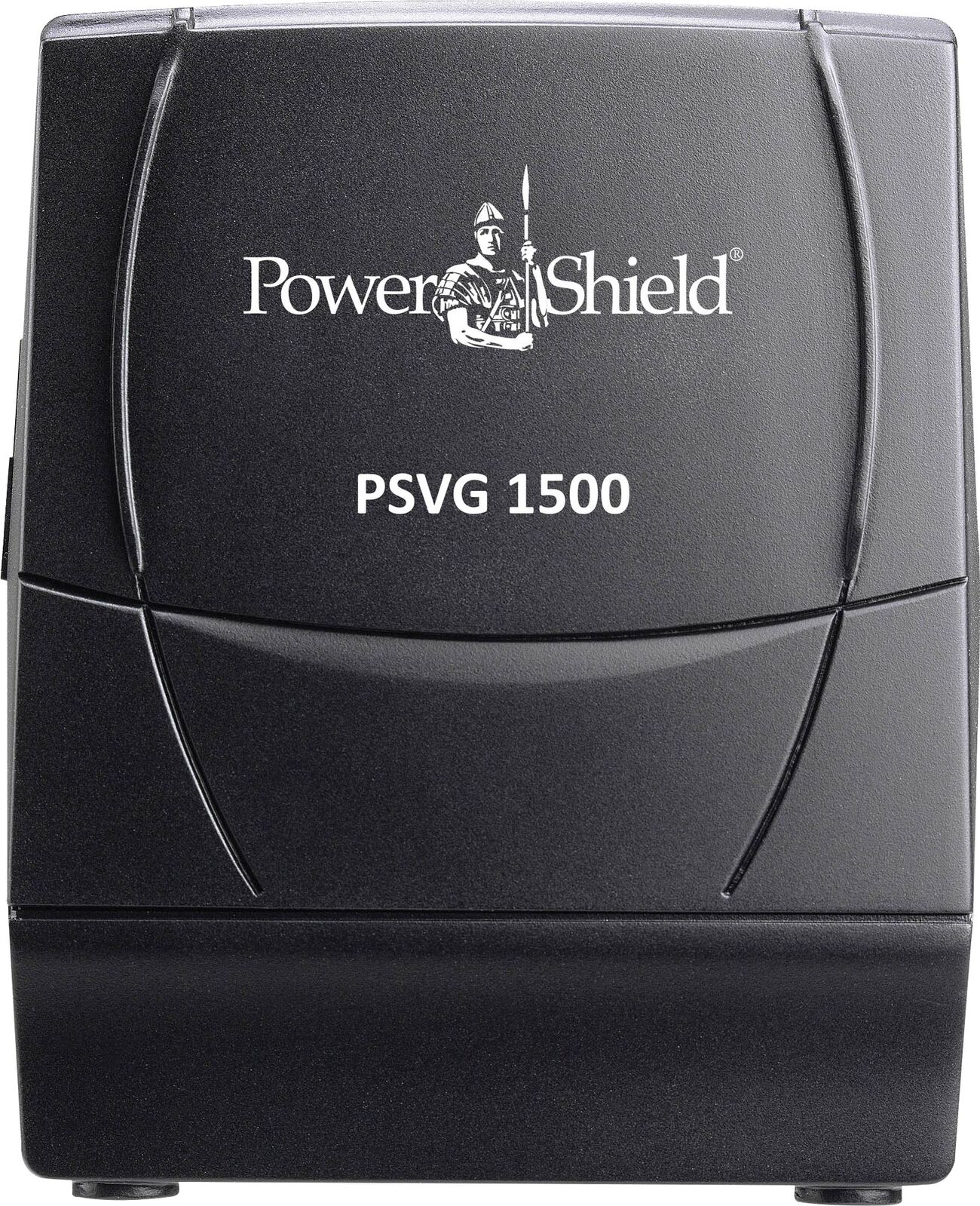

The PowerShield VoltGuard AVR automatically maintains a constant voltage level to protect your sensitive electronics from brownouts and over voltages.
This cost effective compact device provides a constantly regulated output voltage ensuring that your sensitive electronic equipment is always receiving voltage within an acceptable range. Adding to this, VoltGuard also has included as standard, over voltage and under voltage protection which will turn off the supply to your equipment when the utility voltage moves out of the safe range. The VoltGuard also provides surge protection to protect against transients.

Features

• Very wide input voltage range
• Excellent output voltage stability
• Includes surge and spike suppression
• Extremely fast response
• Provides over-voltage & under-voltage protection
• Provides over-temperature and overload protection
• Stylish enclosure with Australian outlet sockets

Specifications

• Capacity: 1500VA / 750W

INPUT

• Voltage: 230VAC
• Voltage Range: 184 - 284VAC
• Frequency Range: 50Hz

OUTPUT

• Voltage Regulation: ±10%

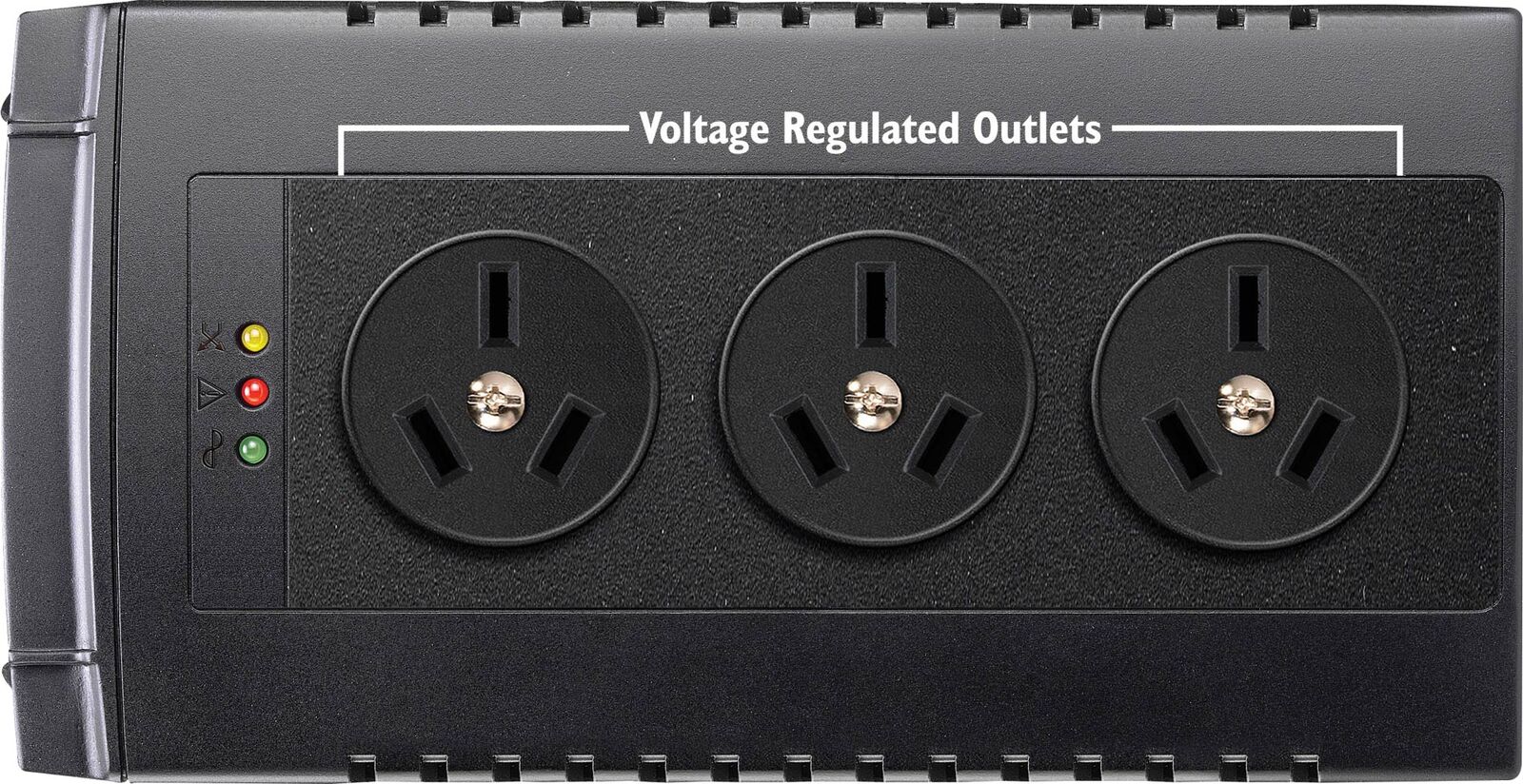

• Australian Outlets: 3

INDICATORS

• Boost & Buck LED: Yellow
• Normal LED: Green
• Over/Under Voltage LED: Red

PHYSICAL

• Dimensions: 180D x 95W x 119H mm
• Net Weight : 1.96kg

ENVIRONMENT

• Operation Humidity: 0 - 90% RH @ 0 - 40?C (non-condensing)
• Noise Level: Less than 5dB

WARRANTY

• Warranty: 1 Year
