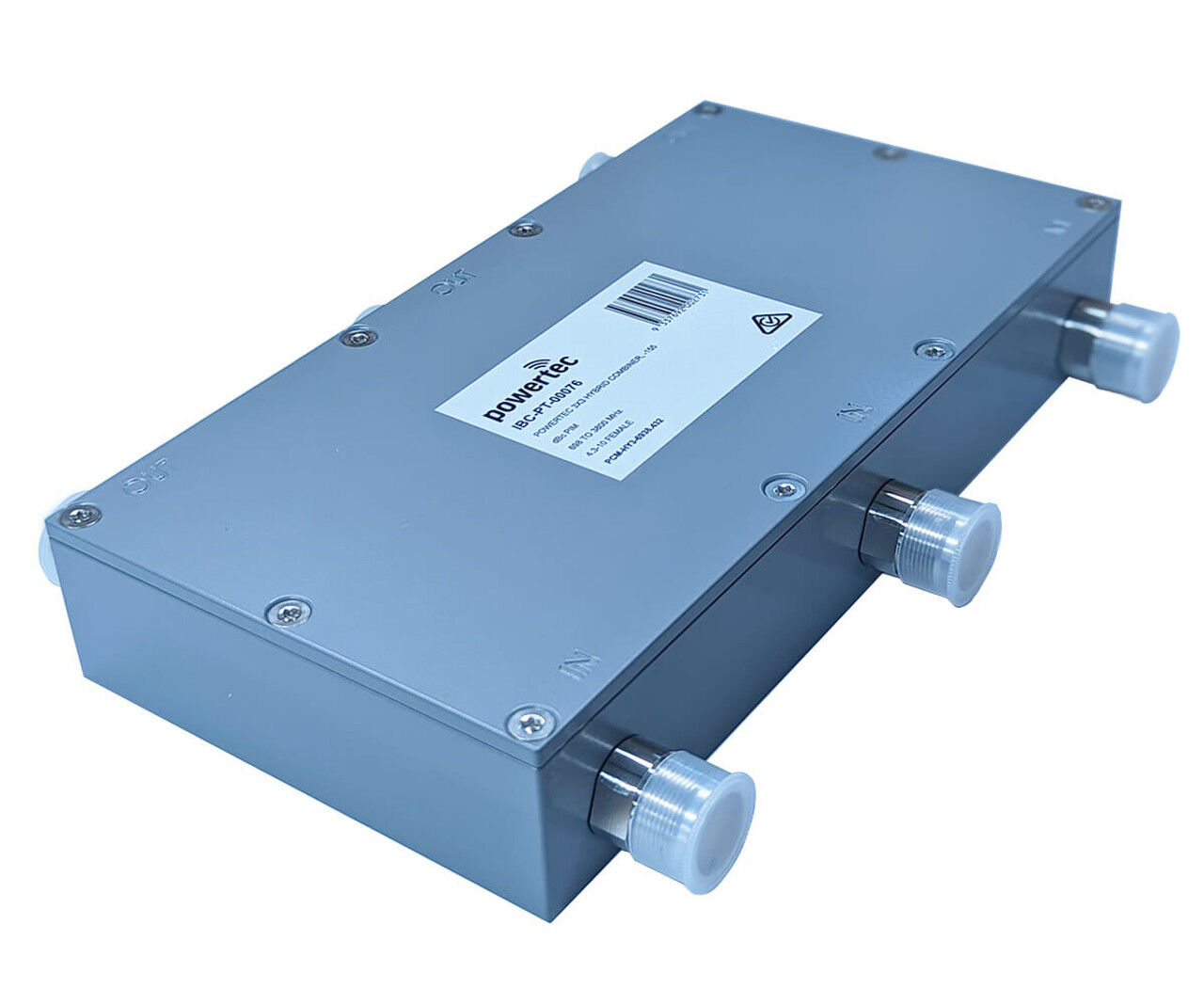

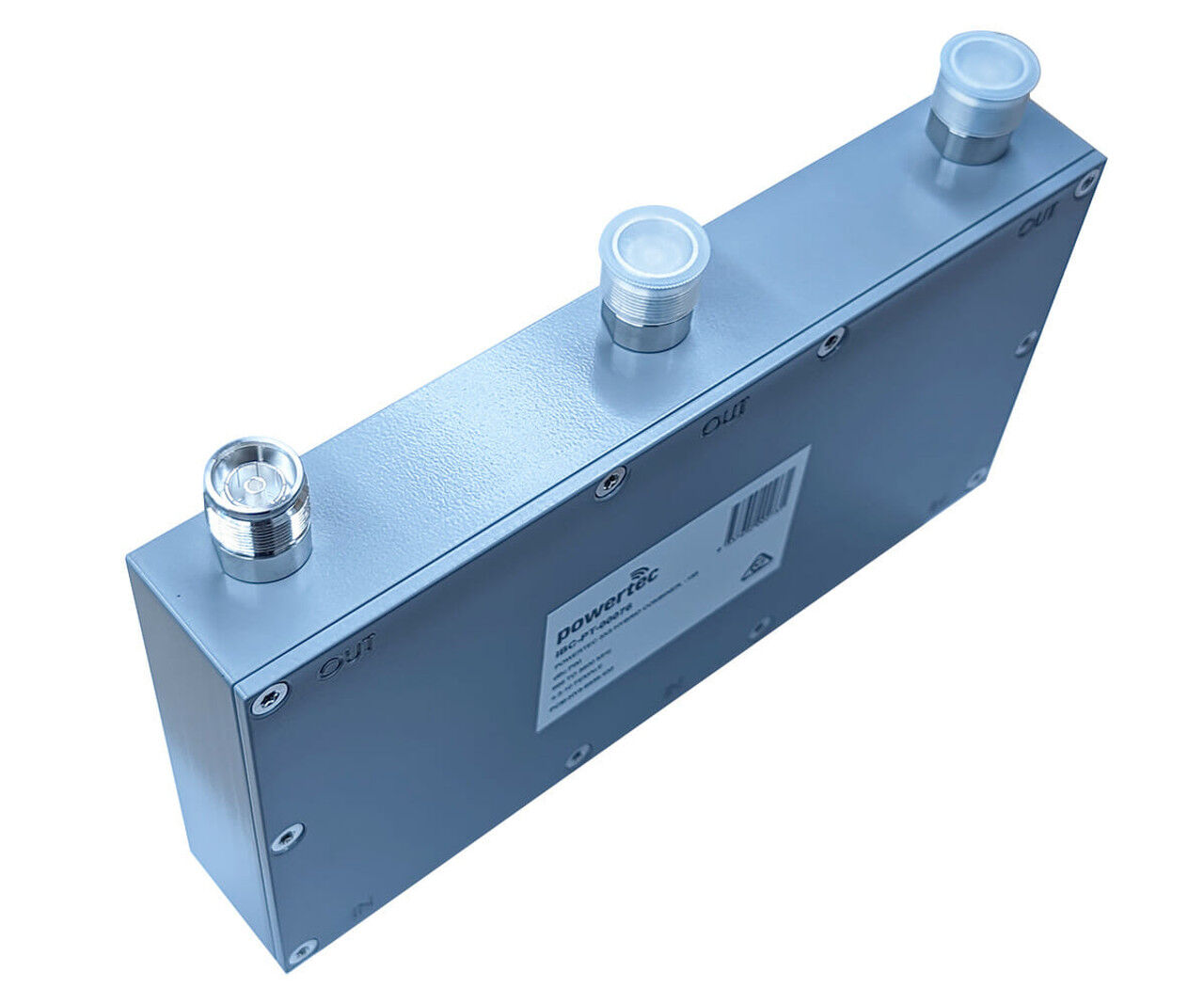

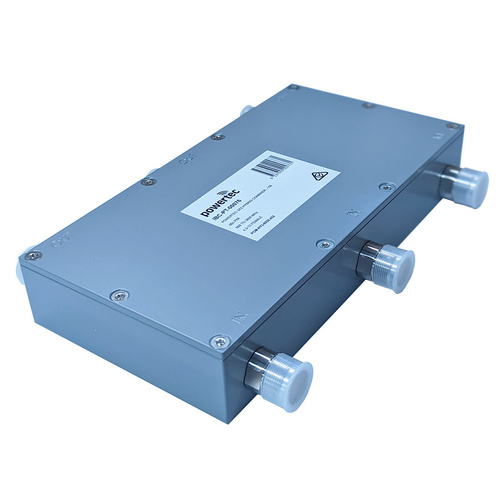

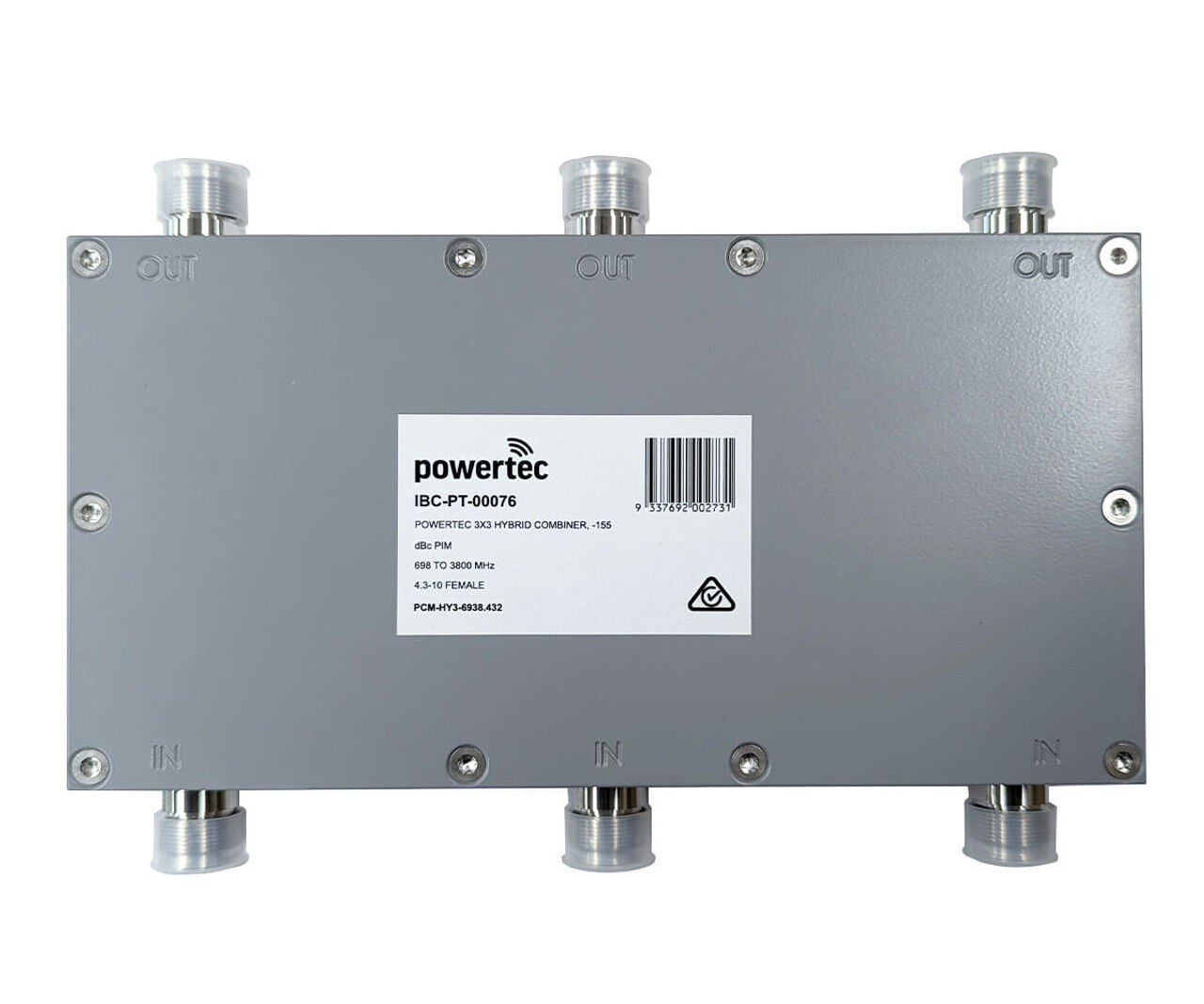

Hybrid Couplers are used to develop advanced RF transmission systems where interaction-free signal combining is required. While rare, 3x3 couplers are occasionally used as an means of combining three radios or repeaters onto three distribution paths. The unit has three input ports which feed three coupled output ports. This 3x3 Hybrid Coupler has been developed for use as a 4G-5G MNC in passive in-building coverage systems, along with supporting high powered defence and aerospace technologies. The unit supports a wide frequency range from 700 to 3800 MHz, extremely low intermodulation with a -155 dBc PIM rating, and using latest generation 4.3-10 connectors.

• 3x3 Matrix for 4.8 dB interaction-free coupling
• Meets Powertec IBC design standards
• Integrated cast aluminium mounting bracket
• IP67 ingress protection rating for harsh environments

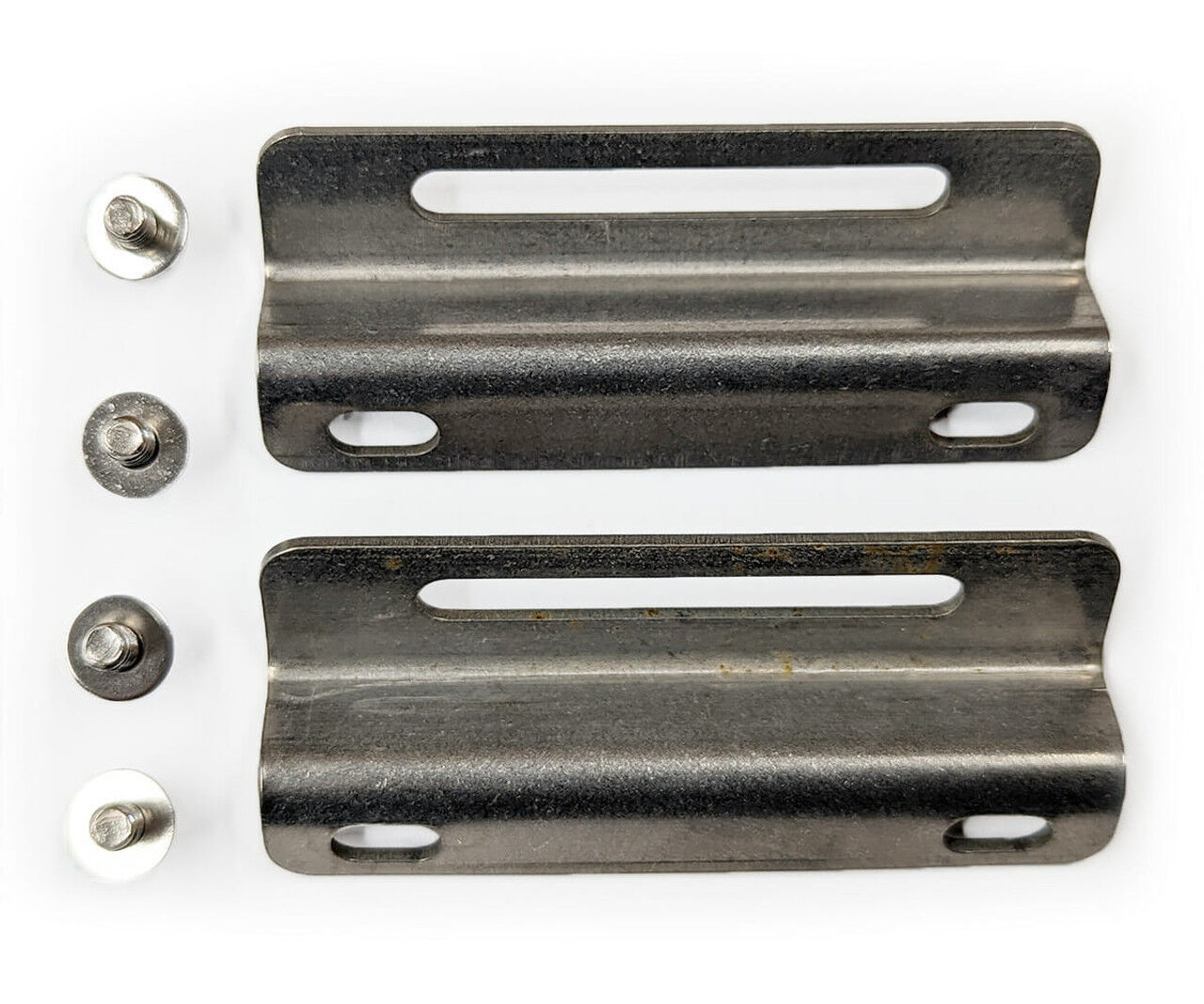

With an IP67 ingress protection rating, this hybrid combiner can be used indoors or outdoors. A heavy-duty stainless-steel mounting bracket is included which provides for wall and pole mounting.
