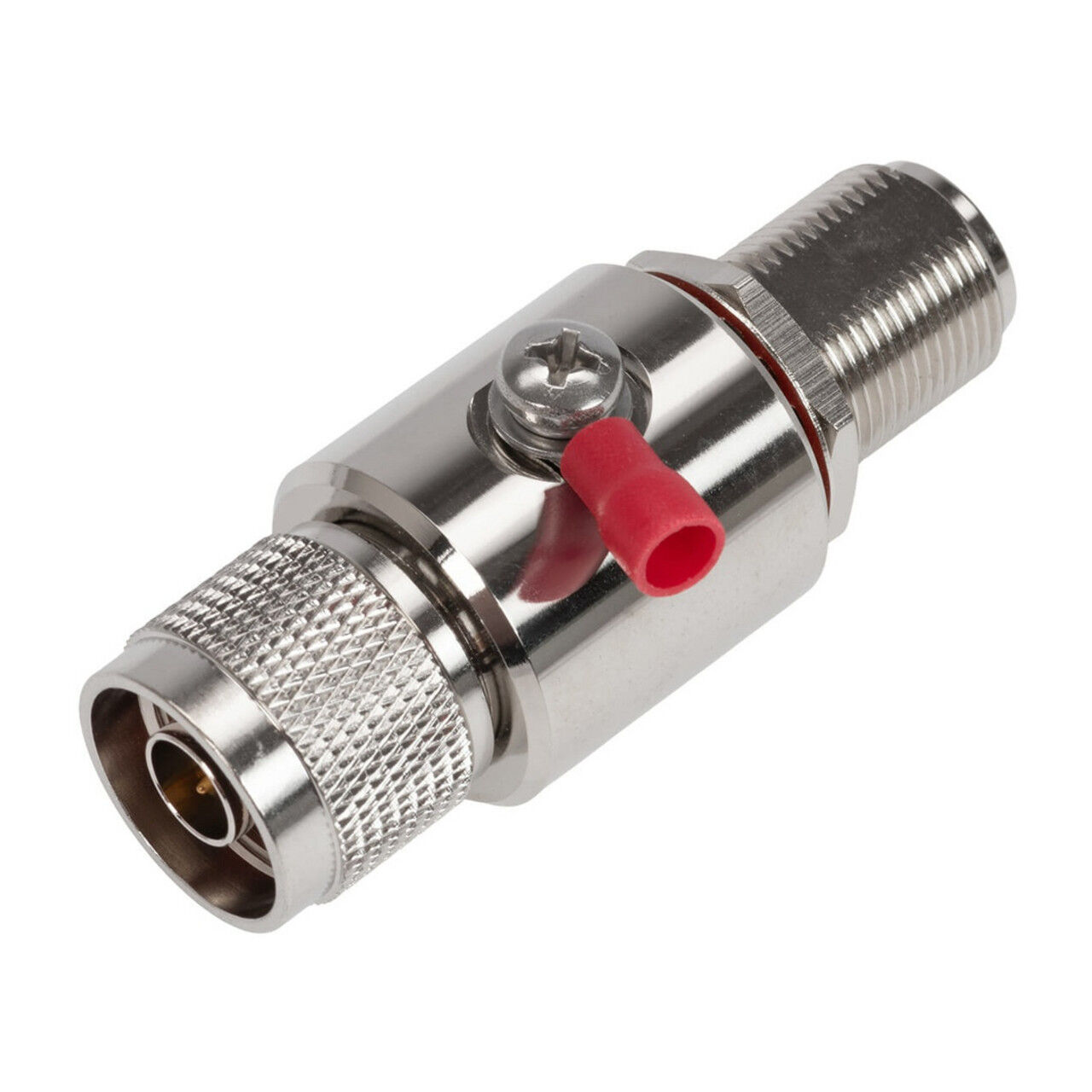

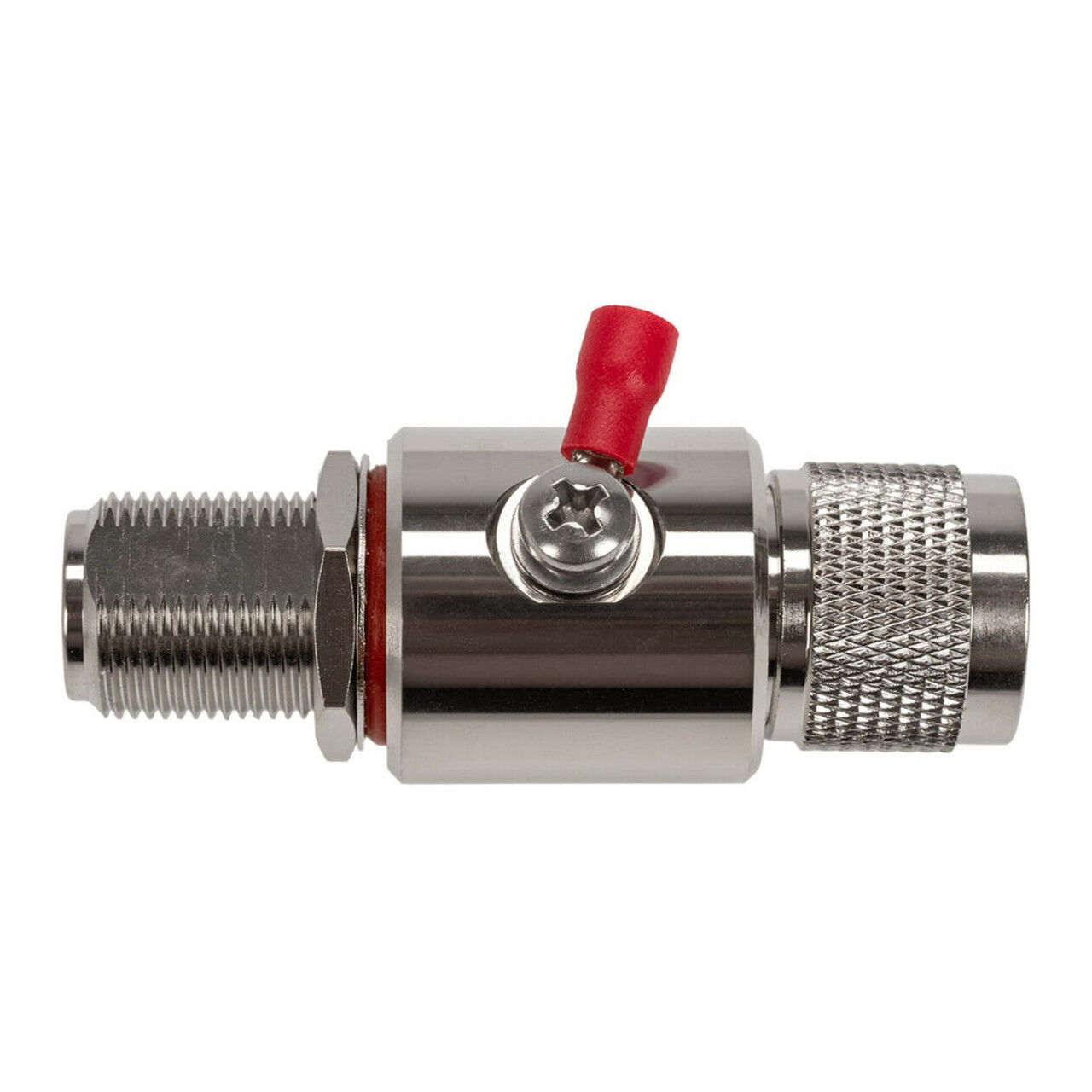

The Coaxial Surge Protector N Female to N Male, DC to 3 GHz is designed to safeguard your equipment from lightning surges, making it ideal for high-risk outdoor antenna installations. Featuring N Female to N Male interfaces and a gas discharge tube design, this surge protector covers frequencies from DC to 3 GHz and provides superior protection with a nominal DC spark-over voltage of 230V. Its durable construction includes a nickel-plated brass body and gold-plated brass pins, ensuring durability and reliability. Easy to install either inline or through a plate, it also complies with AS/ASCIF S009 requirements for grounding, offering peace of mind for both equipment and insurance.

Key Features:

• Suitable for 4G frequencies from DC to 3 GHz
• N Female Bulkhead to N Male interfaces
• Gas discharge tube design
• Ring terminal suitable for 6 mm earth cable
• Requires connection to ground per AS/ASCIF S009.

High-Frequency Surge Protection

The PCM-SP-DC3.N2N1 is designed to offer reliable surge protection for coaxial cables, suitable for frequencies ranging from DC to 3 GHz. Ideal for 4G installations, it ensures reliable operation of your antenna systems by preventing damage from lightning surges.

Durable and Reliable Construction

Featuring N Female Bulkhead to N Male interfaces, this surge protector is built with nickel-plated brass and gold-plated brass pins. It provides exceptional durability with a mechanical life of over 500 mating cycles and withstands harsh environmental conditions, including temperatures from -55 °C to +155 °C.

Effective Surge Suppression

Equipped with a gas discharge tube design, the PCM-SP-DC3.N2N1 offers superior protection with a nominal DC spark-over voltage of 230V and an impulse discharge current of up to 20kA. This helps safeguard your equipment against high-voltage spikes caused by lightning strikes.

Easy Installation and Grounding

The surge protector is designed for straightforward installation, with an N Female Bulkhead interface allowing it to be mounted through a plate. It also features a ring terminal for easy connection to a 6 mm earth cable, ensuring compliance with AS/ASCIF S009 grounding requirements.

Reliable Performance and Protection

With an ingress protection rating of IP67, this surge protector is resistant to dust and water, ensuring reliable performance in various environmental conditions. It also meets RoHS compliance standards, reflecting its commitment to safety and environmental responsibility.
