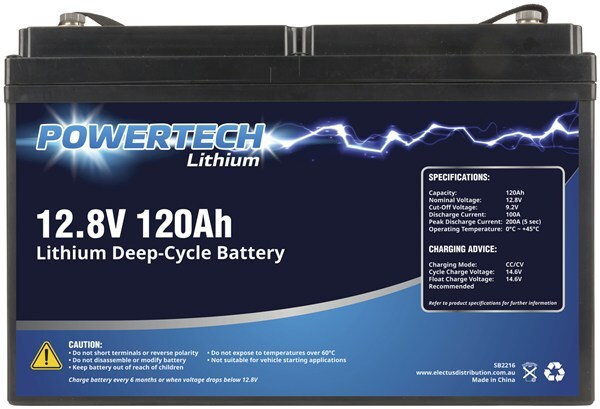

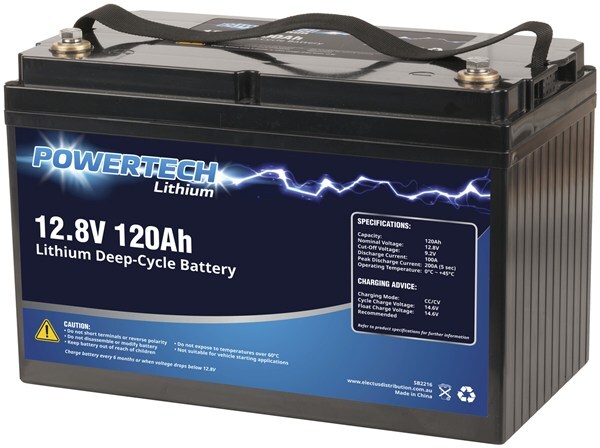

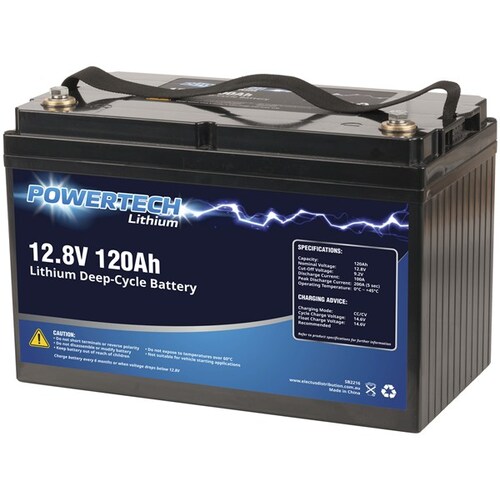

The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular prismatic LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 120Ah model can provide continuous current up to 50A with peaks of 100A. Absolutely perfect for portable power, and replacement of similar capacity lead acid / AGM battery.

Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- 10+ years life span
- 1500+ cycles (>80% capacity)

Specifications:
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Normal Current: 50A
Internal Cells: prismatic LiFePO4
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%

Specifications

DC Voltage : 12.80000000V
Length : 330.00000000mm
Width : 175.00000000mm
Height : 215.00000000mm
Weight : 12.00000000kg
DG UN Number : 3480.00000000
DG Ship Name : 3480 - Lithium Ion Batteries
DG Pack Group : II - Medium Danger
DG Hazardous Chemical Code : 4W
Battery Watt Hour Rating (Required for Lithium Batteries) : 1536.00000000Wh
Dangerous Road Freight : false
Dangerous Air Freight : true
Battery Chemical Composition : Lithium Ferrous Phosphate (LiFePO4)
Amp Hour Rating : 125.00000000mAh
20 Hour Capacity : 125.00000000Ah
Internal Resistance : 220.00000000m?

(SB2216)

SKU SB2216
