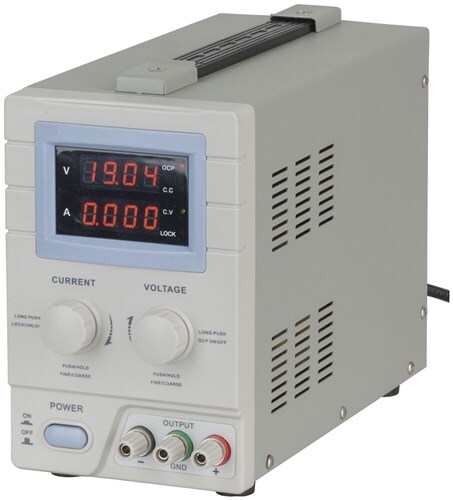

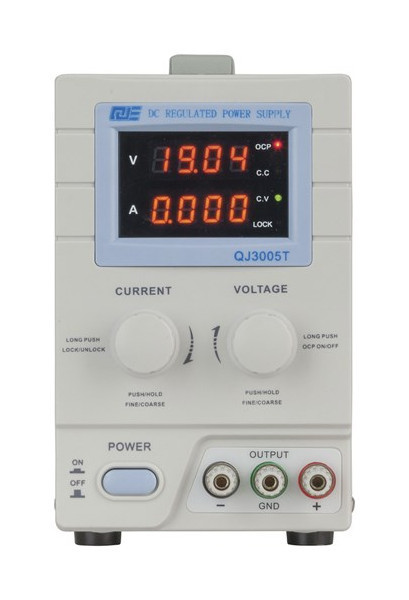

Power your devices with accuracy and the confidence that only comes with a professional lab power supply. Select precise voltage level and current limits to prevent overheating, burnout, and over-current. Of course the output is short-circuit protected too. The compact construction uses surface mount technology and a powerful internal cooling system to deliver a highly flexible power source. With ripple voltage a tiny 1mV, you know you’re getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components. Output voltage is adjustable from 0 to 30VDC, and output current can be limited between 0 and 5A. Banana plug/binding posts provide output on the front of the unit, while a bright LED display keeps you informed. Includes a short banana to alligator lead set.
Features:
- Precise voltage level and current limit settings
- 1mV ripple voltage
- Avoid overheating, burnout, and over-current
- Easy-to-use LEDdisplay panel
- Input voltage: 220-240AC 50-60Hz
- Output voltage: 0-30VDC adjustable (10mV accuracy)
- Output current: 0-5A adjustable (1mA accuracy)
- Ripple current: 3mA
Specifications
AC Voltage rating : 230V |
AC Frequency : 50Hz |
DC current rating : 5A |
DC Voltage : 30V |
Length : 270mm |
Width : 120mm |
Height : 185mm |
Weight : 4.8kg |
Mains Voltage Range : 220V, 240V |
Frequency : 50Hz |
Rated for AU Mains : true |
Rated for US Mains : false |
Auto-select mains voltage : false |
Mains Item connection : Standard IEC320 (C13/C14) |
Mains lead included : true |
Packaged Volume : 15.62l |
Packaged Weight : 5.47kg |
Packaged Length : 30.3cm |
Packaged Width : 20.7cm |
Packaged Height : 24.9cm |
Type of Power Supply : Laboratory |
Regulation Type : Regulated |
Voltage Display : true |
Current Display : true |
Output Connection : Banana 4mm (standard)Binding Post Terminals |
Number of Outputs : 1pc |
Ripple Voltage : 1mV |
(MP3840)
12 month warranty
SKU | MP3840 |
Model # | MP3840 |
Barcode # | 9319236676370 |
Brand | Powertech |
Unit Of Measure | each |
