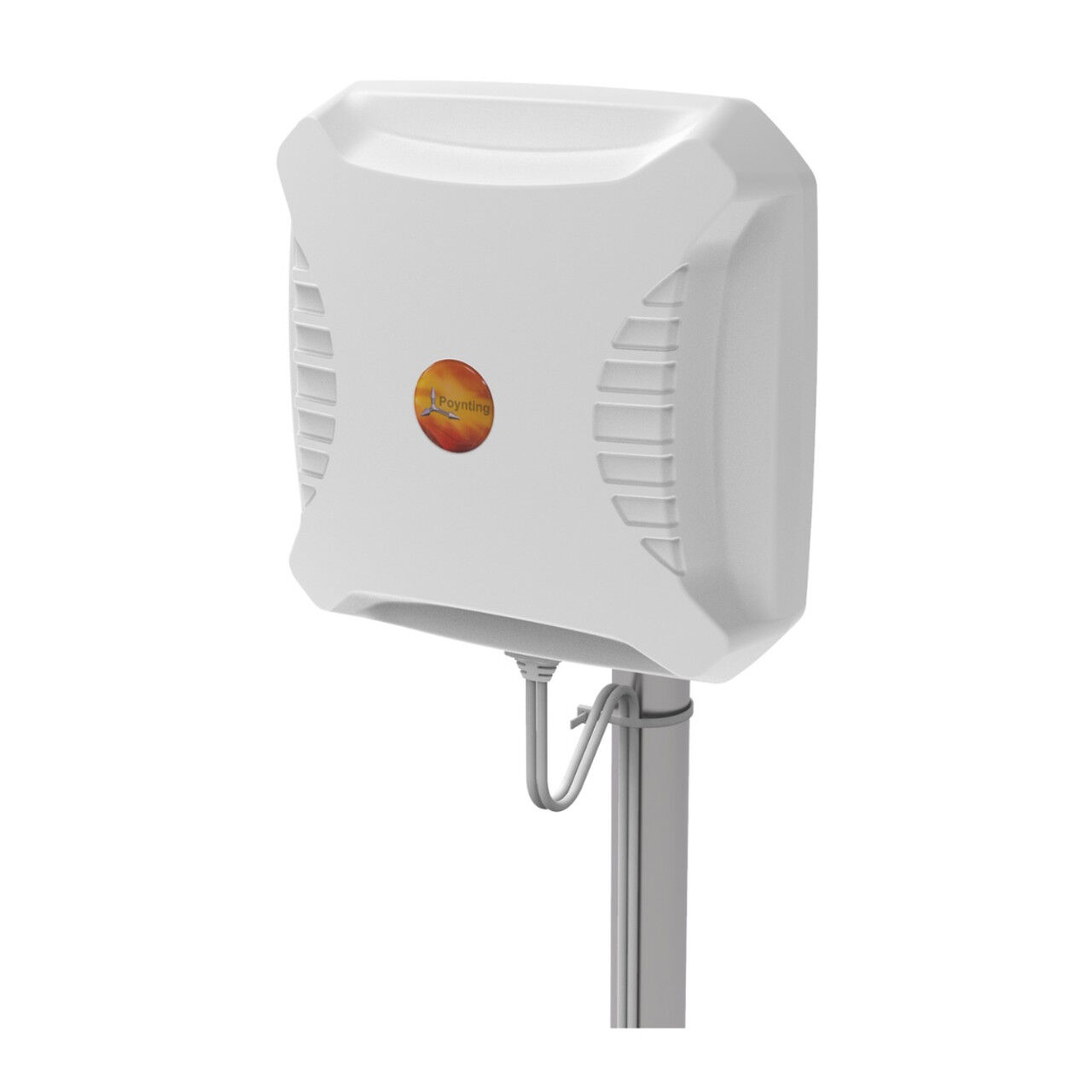

The XPOL-2-5G is Poynting’s third-generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna and includes the newer 3400 – 3800MHz bands making it suitable for 2G, 3G, 4G & 5G.

Making use of Artificial Magnetic Conductors (AMC) and a new registered/patent-pending radiator configuration has yielded exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well-controlled, further adding to the performance of the antenna.

  • Cable sold separately. N-type (f) port.

KEY FEATURES

  • New advanced metamaterial technology
  • Exceptional performance over the main 4G/5G bands
  • High Gain for the antenna size
  • Wideband 2×2 MIMO 4G/5G antenna
  • Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
  • Two cross polarised antennas in one enclosure for optimal LTE performance
  • IP65 weather/dust and vandal-resistant enclosure.
Electrical Specifications
Frequency Bands 698-960 1710-2700 3400-3800
Gain (max) Port 1 & 2 9 dBi 10 dBi 11 dBi
VSWR Port 1 & 2 <1.5:1 over 95% of the band
Feed power handling 20W
Input impedance 50 Ohm
Polarisation ±45°
Mechanical Specifications
Product Dimensions 290mm x 265mm x 155mm
Packaged Dimensions 375mm x 270mm x 100mm
Radome material UV stable ASA
Radome colour Brilliant white

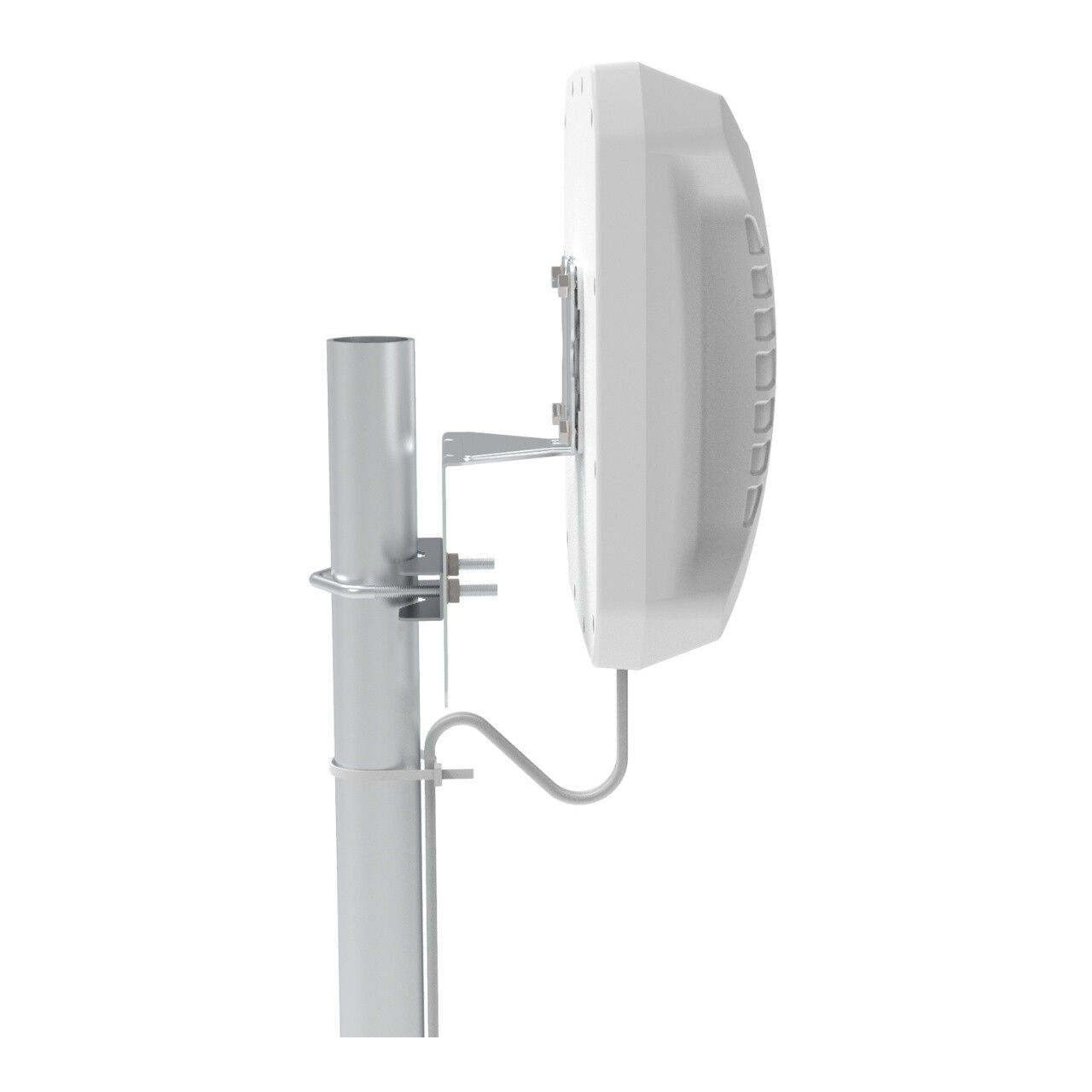

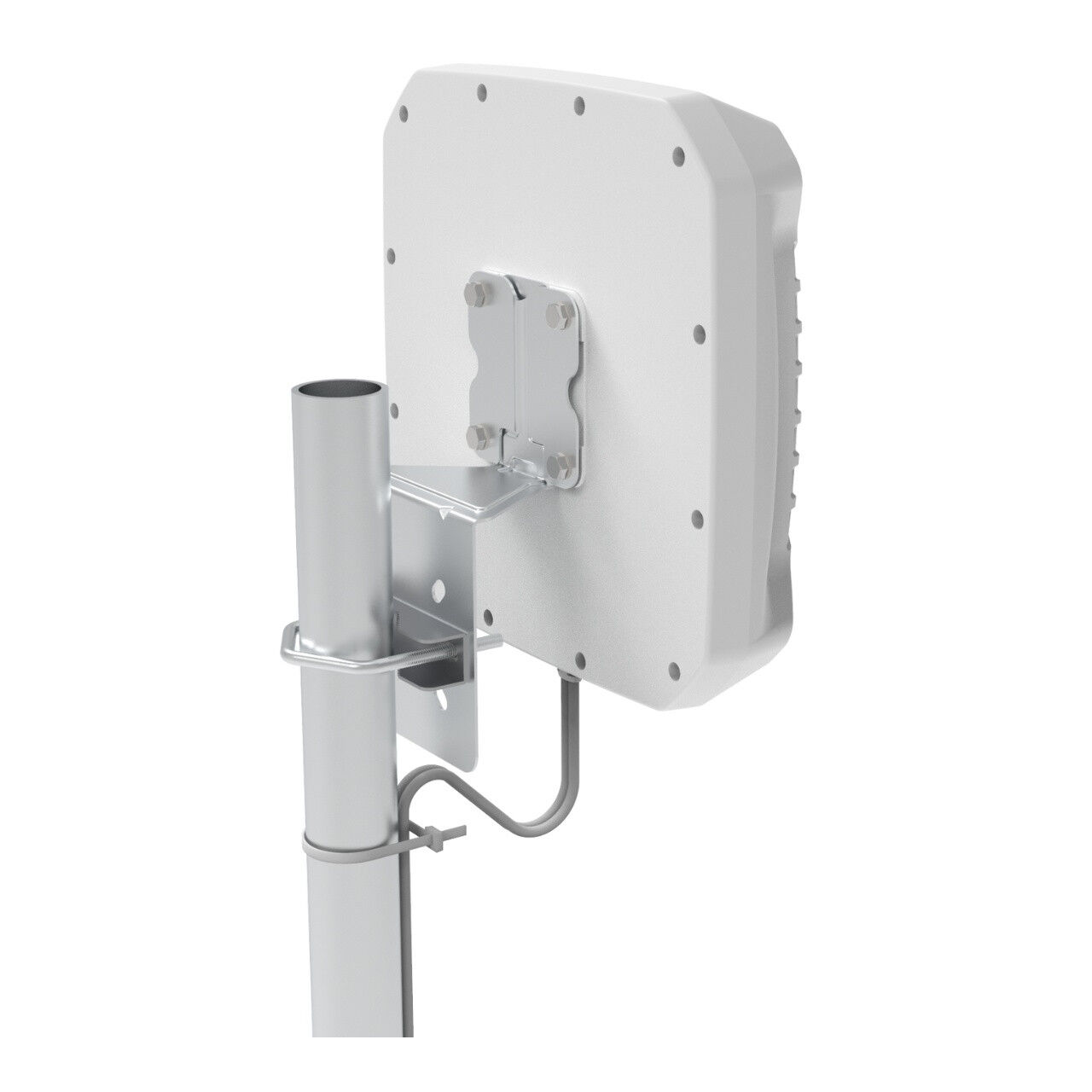

Mounting type Wall and pole mount

(ANT-PY-00005)

SKU ANT-PY-00005
Model # ANT-PY-00005
