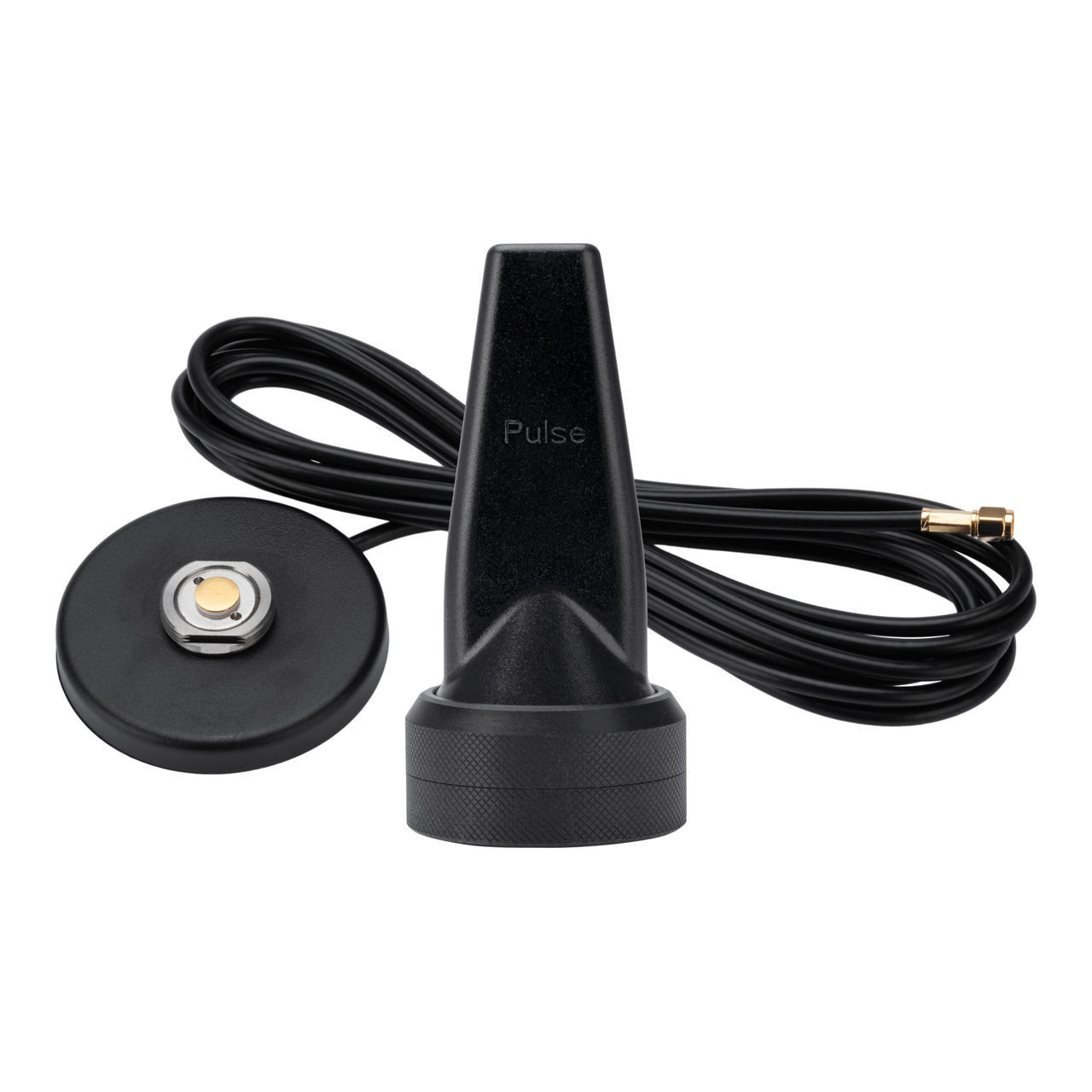

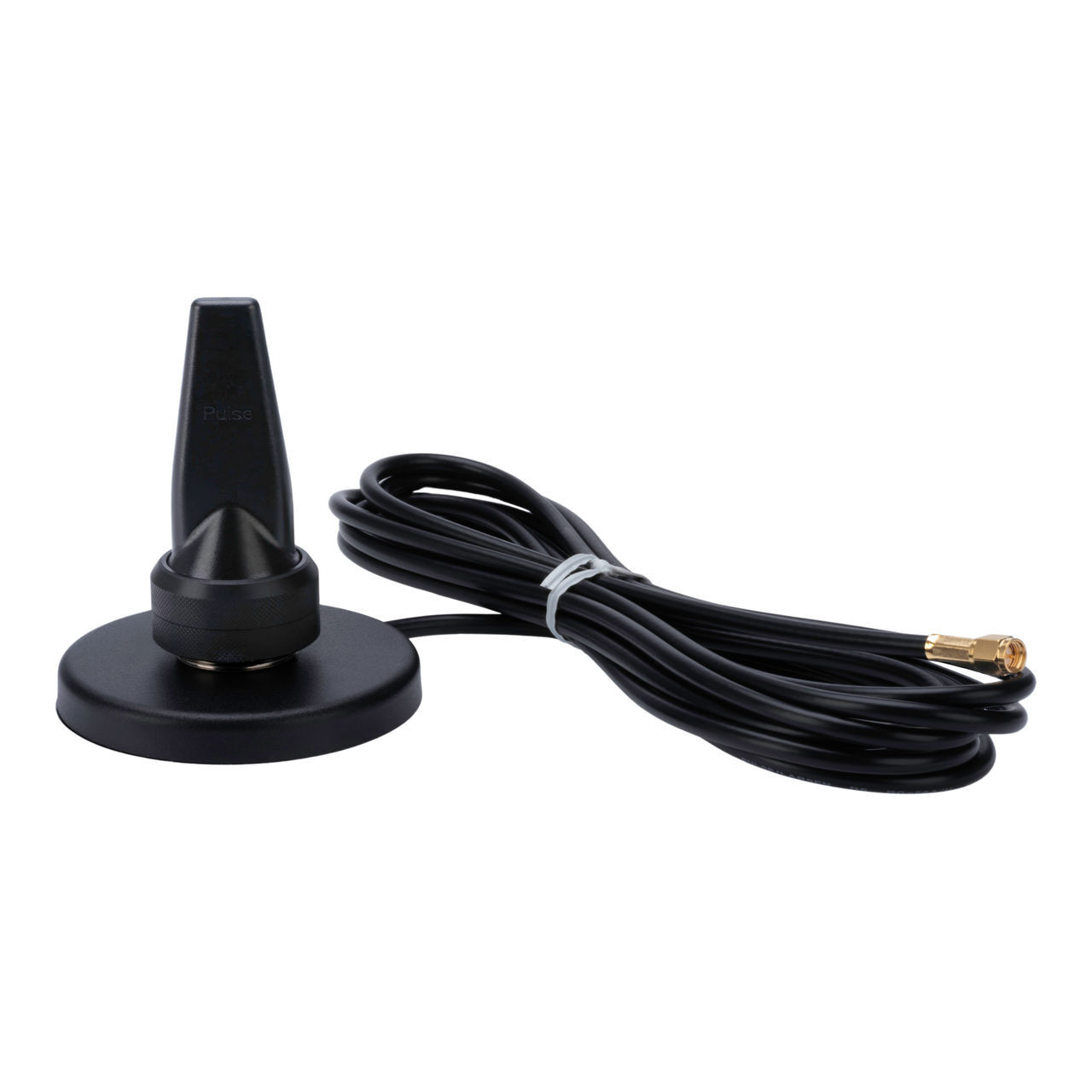

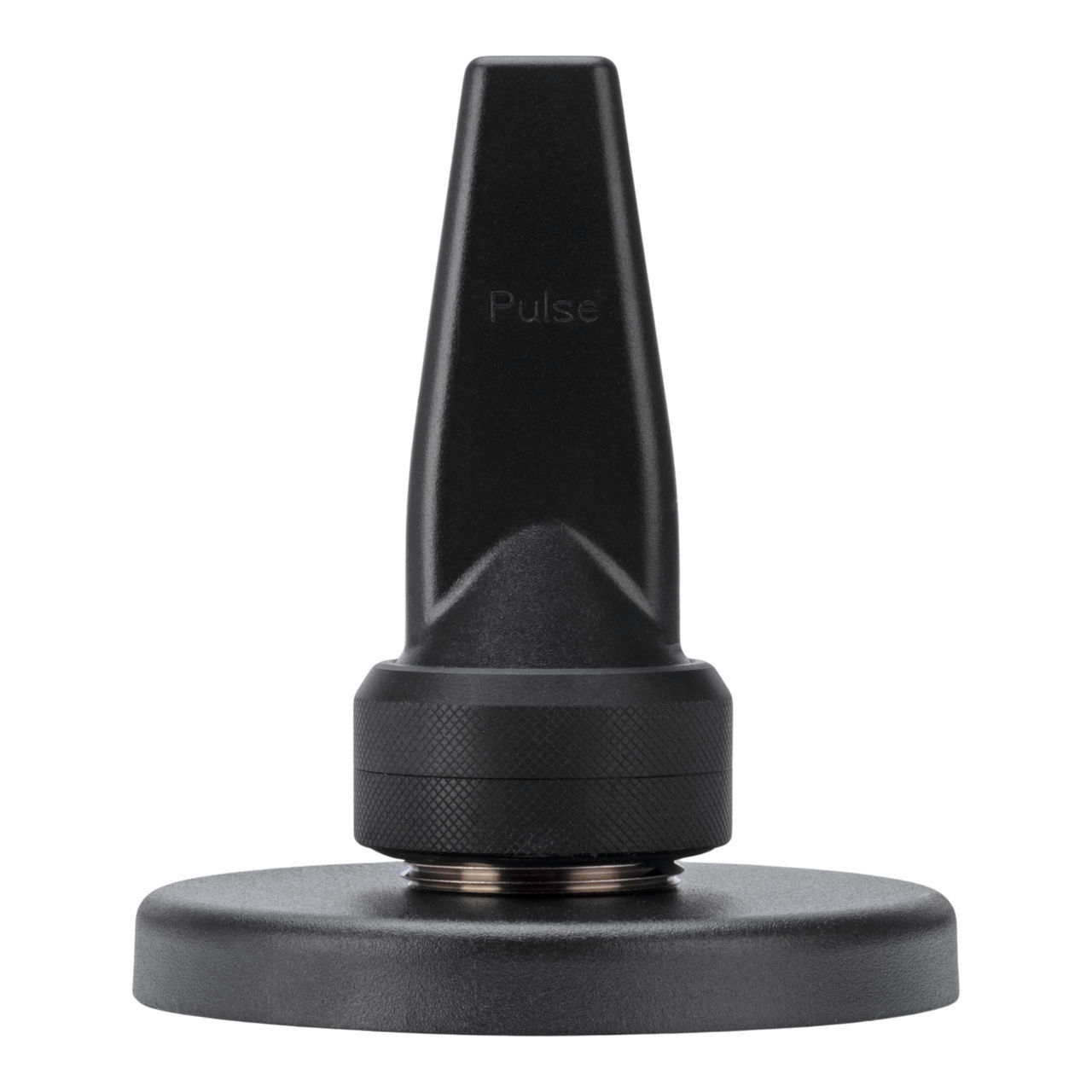

The Pulse Larsen 4G Magnetic Antenna, 698 to 2700 MHz, SMA Male offers a sleek, compact design ideal for a range of applications. With a robust build and a stylish black radome made of PC + ABS plastic, this antenna is perfect for mounting on vehicles or enclosures where space is limited, but performance is crucial.

Key Features:

• 5G Ready*
• 4.5dB gain for 698-960 MHz
• 5.6dB gain for 1710-2400 MHz
• 4dB gain for 2500-2700 MHz

* 5G via Dynamic Spectrum Sharing (DSS) on compatible repeaters, including the CEL-FI R41.

Note: Antenna base needs to be placed on a metal ground plane.

Wide Frequency Range for Comprehensive Coverage

Covering frequencies from 698 to 2700 MHz, this antenna supports a broad spectrum including LTE, 3G, and 4G networks. This extensive range ensures that it can handle various communication needs, from public safety and smart metering to advanced WLAN applications.

High Performance with Enhanced Gain

Delivering an average gain of 4.5 dBi at lower frequencies and up to 5.6 dBi at mid-band frequencies, the Pulse Larsen antenna ensures strong signal reception and transmission. Its performance is optimised for different frequency bands, providing reliable connectivity across diverse network environments.

Excellent Durability and Environmental Resistance

Built to withstand harsh conditions, this antenna features an IP-67 rating when properly installed, offering protection against dust and water ingress. It operates reliably in temperatures ranging from -40 °C to +85 °C, making it suitable for both extreme weather and industrial applications.

Magnetic Mount for Easy Installation

Designed with a magnetic base, this antenna provides straightforward installation on any ferrous surface. This mounting method offers flexibility and convenience, allowing for quick setup and repositioning without the need for permanent fixtures.

Optimal Electrical Performance

The antenna's vertical polarisation and omnidirectional radiation pattern ensure comprehensive coverage and minimal signal loss. With a VSWR of 3.0:1 at lower frequencies and 2.0:1 at mid to high frequencies, it delivers efficient signal transmission with minimal interference.

Compliance and Quality Assurance

This antenna is RoHS compliant, adhering to environmental standards. It is engineered to deliver reliable performance while meeting industry regulations, ensuring both quality and safety in various deployment scenarios.
