Poynting XPOL-24 4x4 MIMO 4G-5G Antenna 617 to 4200 MHz N Female ANT-PY-00053

Discover the XPOL-24, a high-performance X-Polarised Uni-Directional 4x4 MIMO 5G/LTE Antenna, featuring advanced metamaterial technology for exceptional wideband coverage across 617 - 4200 MHz with an 11dBi gain. Ideal for diverse applications in urban, rural, commercial, and industrial settings, its robust IP65-rated design ensures durability against environmental challenges, making it a superior choice for current and future 5G/LTE networks.

Please call our office on 07 55770500 to be notified when the product becomes available.

Features:

Exceptional high-performance antenna over main 5G/LTE bands
New advanced metamaterial technology for high performance
Wideband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
Four cross-polarised antennas within a single enclosure
Weather, dust and vandal resistant enclosure with IP65 rating

Specification	Description
Industry (Application)	Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas
Technology	Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band	617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 3800-4200MHz
Frequency Range	617 – 4200 MHz
Gain	11dBi
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality	Uni-Directional
LTE/4G Bands	B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106

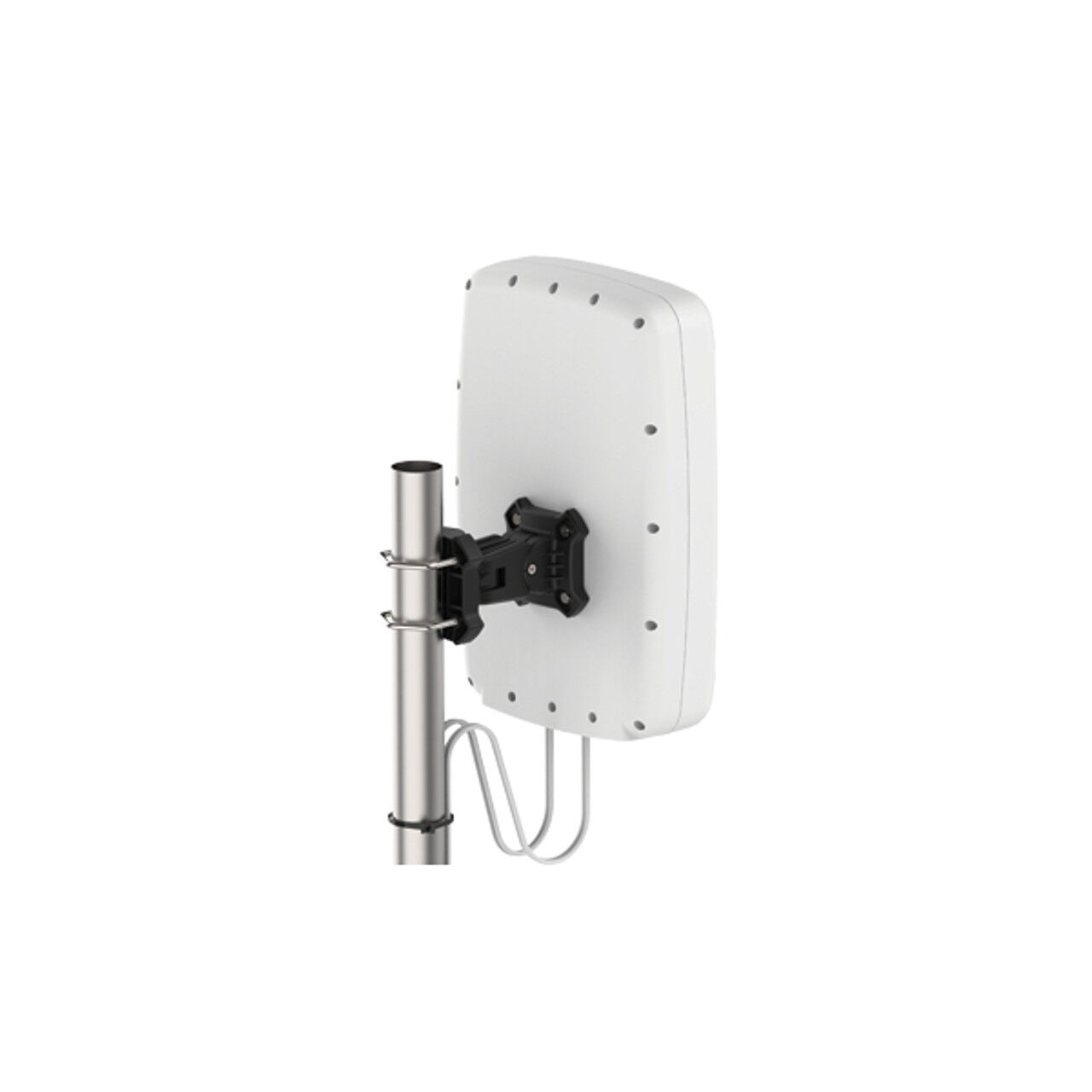

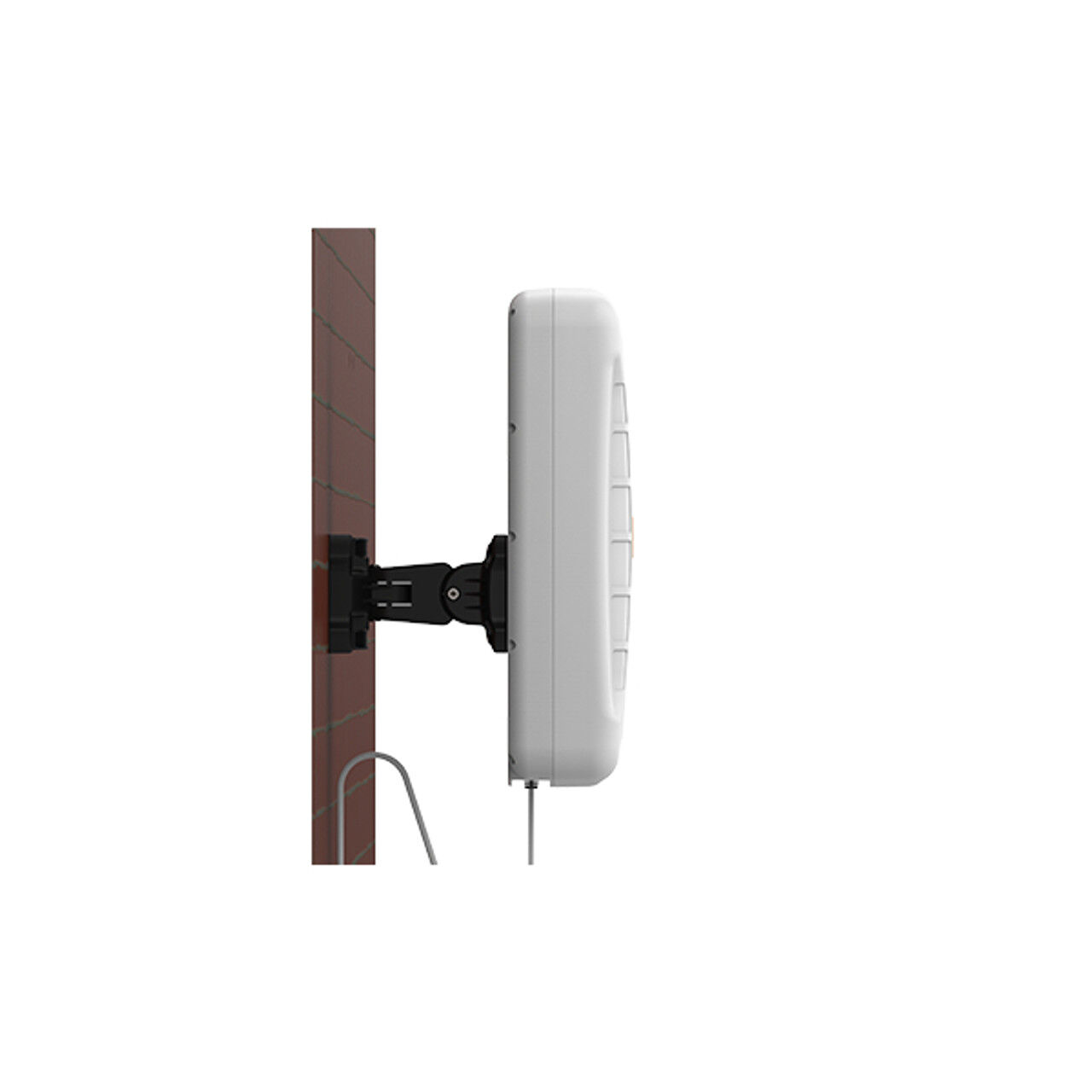

Mounting Type	Pole Mount, Wall Mount
Wi-Fi Standard	Wi-Fi 3 (802.11g)
Connectors	SMA (m)
MIMO	4×4
Polarisation	X-Polarised
Environmental	IP65
Enclosure Name	Lion
Enclosure Size	Large
LTE Ports	4
