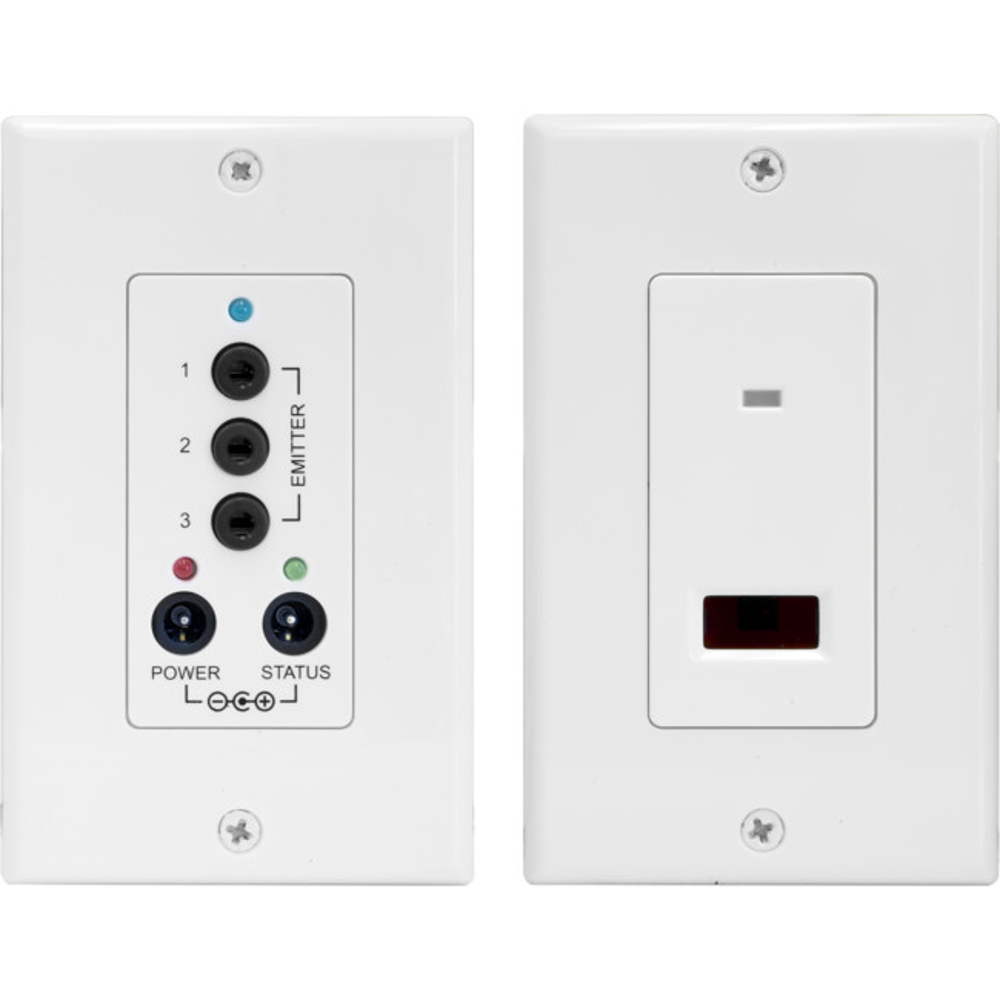

The PRO1255 IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/Video components.

With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard signle gang electrical box using deco cover plates.

In-wall IR Connecting Block

• Three emitter output connections
• Convenient IR confirmation LED
• Status power connector with LED indicator
• Power input connector with LED indicator
• Large detachable IR receiver connection at back
• Specifications:
  • Dimensions: 70 (W) x 114 (H) x 40 (D) mm
  • Weight: 56gr

In-wall IR Receiver
Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room.

• Dual colour LED (Green for system status/ Blue for talk back)
• Ultra-thin design mounts to any J-box or P-ring
• Wide band IR receives signals from many types of remote?
• Specifications:
  • Receive frequency range: 34 KHz to 40 KHz
  • Transmit frequency: 38 KHz
  • Range:
    On axis: 16.8m to 24.4m
    30° off axis: 9.1m to 16.8m
  • Power: 12 V DC, 30mA max.
  • Status Power: 12 V DC, 3mA max.
  • Dimensions: 70 (W) x 114 (H) x 16 (D) mm
  • Weight: 36gr

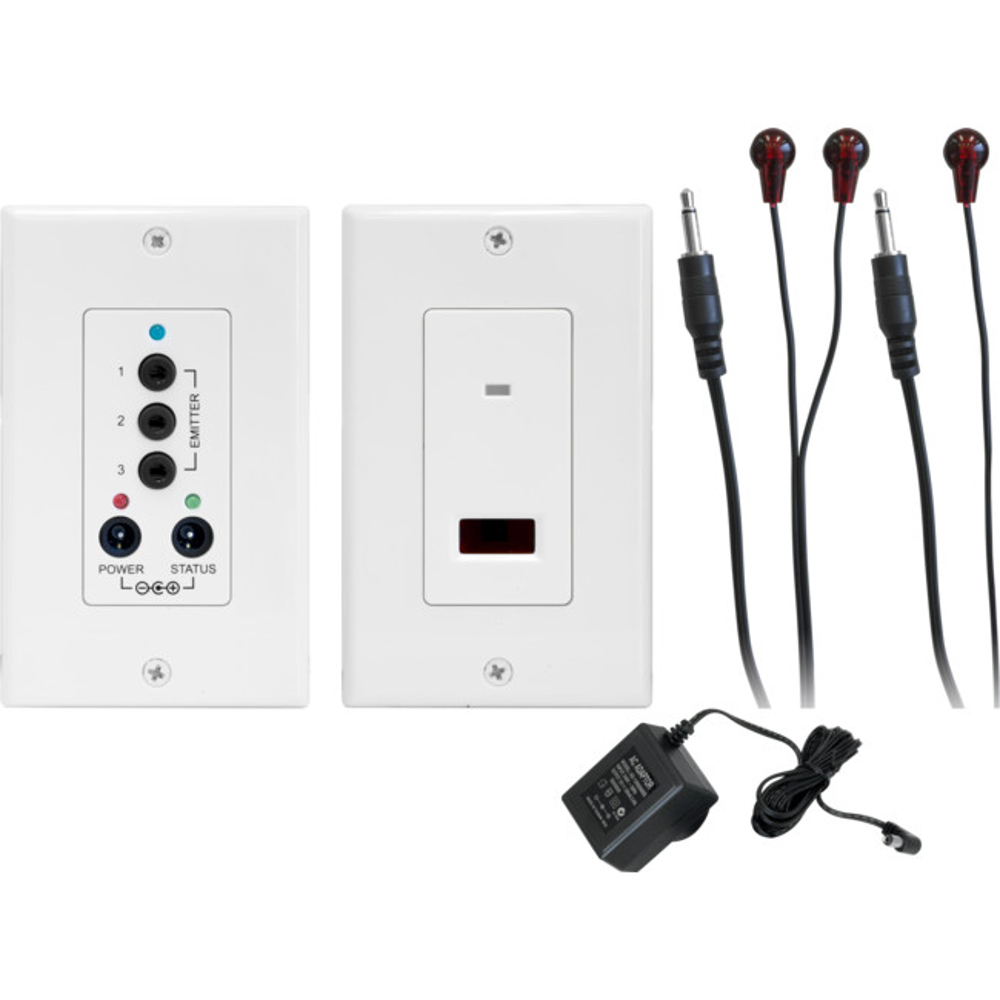

Kit includes:

• In-wall IR Connecting Block
• In-wall IR receiver
• Dual IR emitter
• Single IR emitter
• Switch mode power supply
