Overview

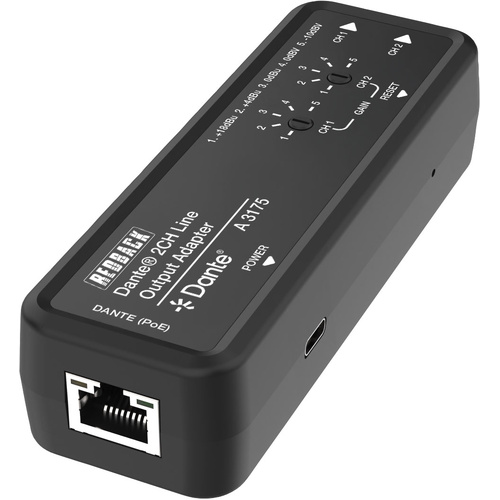

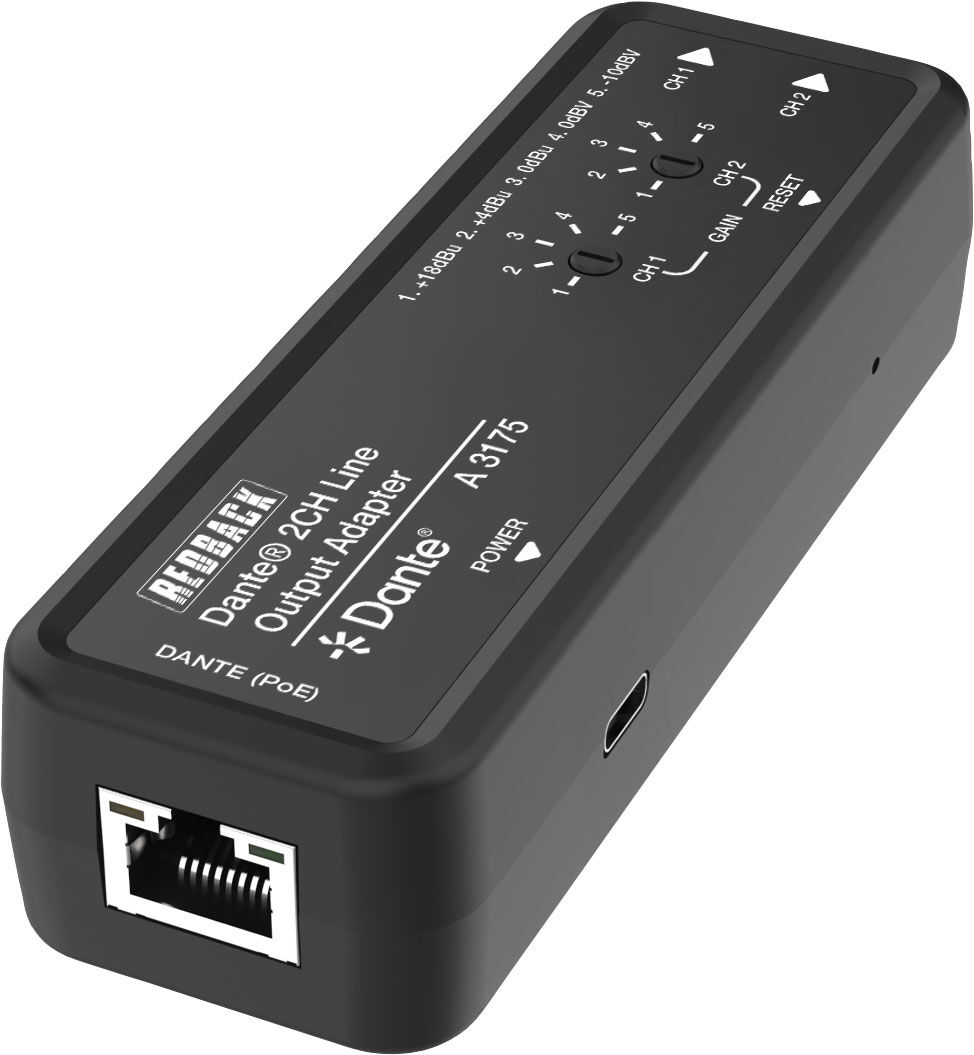

This Dante 2CH screw terminal Output Adapter is an audio transmitter based on the Dante Ultimo 2x2 solution. It converts two-channel balanced/unbalanced analog audio into Dante 2CH digital audio, then transmits the audio to the receiving end through network (Dante). Analog audio input supports 5-level sensitivity adjustment. The adapter supports local USB-C port power supply and PoE function.

Features

• Two-channel analog audio to Dante 2CH digital audio
• Balanced/unbalanced screw terminal analog audio input
• Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
• Dante audio delay supports 1/2/5ms (configurable)
• Analog audio input supports 5-level sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
• Compatible with AES67 input and output.
• Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
• Compact design for easy and flexible installation

 Specifications

Technical:

• Input: Dante® 2CH digital audio
• Output: Two-channel balanced/unbalanced analog audio
• Control Method: Dante® Controller
• Network Bandwidth: 100Mbps
• Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
• Transmission Distance: 100m (CAT6/6A/7)
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Audio Formats:

• DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit]
• LINE OUT [Analog audio output, Balanced/unbalanced 2CH, Max output level +18dBu]

Audio Parameters (Line Out):

• Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced
• Line Output Level (Maximum): +18dBu (6.15Vrms) @ balanced audio, +12dBu (3.08Vrms) @ unbalanced audio
• Frequency Response: 20Hz to 20kHz: (-/+0.5dB)
• Dynamic Range >100dB@0dBu, 1kHzA-weighted
• Audio S/N Ratio >100dB@0dBu, 1kHzA-weighted
• Audio THD+N: < 0.01% at +4dBu, 1KHz
• Audio Output Sync Delay: <10ms

Connection:

• Input port: 1x DANTE [RJ45 connector, PoE], 1x POWER [USB-C with USB power only, 12-pin female]

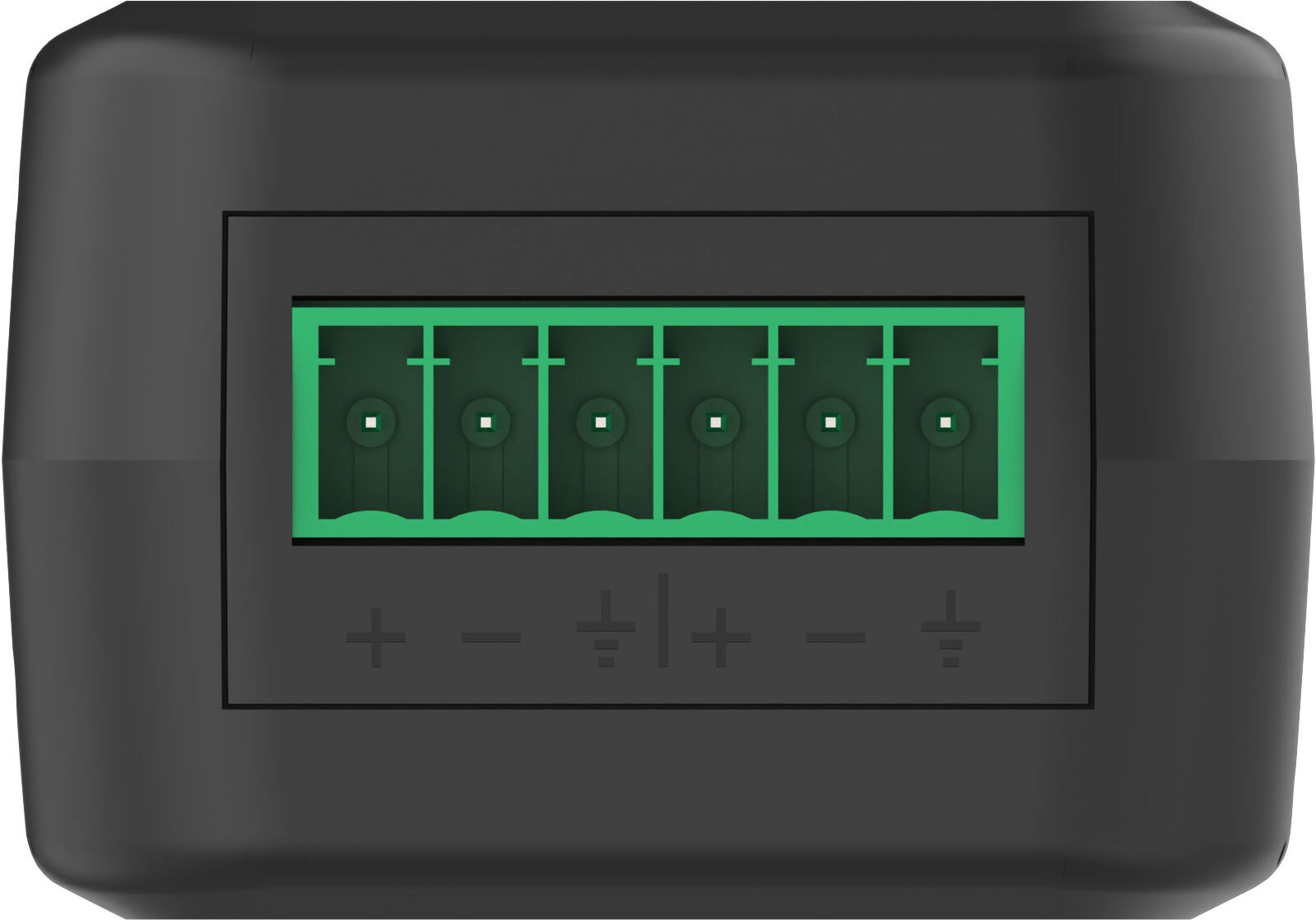

• Output port: 2x CH1/CH2 LINE OUT [6pin-3.5mm phoenix connector]
• Others: 1x RESET button [System reboot button]

Mechanical:

• Housing: Metal Enclosure
• Colour: Black
• Dimensions: 115W x 40D x 28Hmm
• Weight: 94g
• Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
• Power Consumption: 1.25W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing

  *Specifications are subject to change without notice.
