Overview

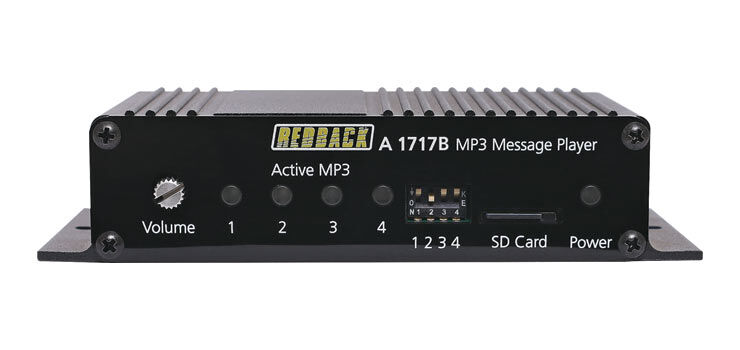

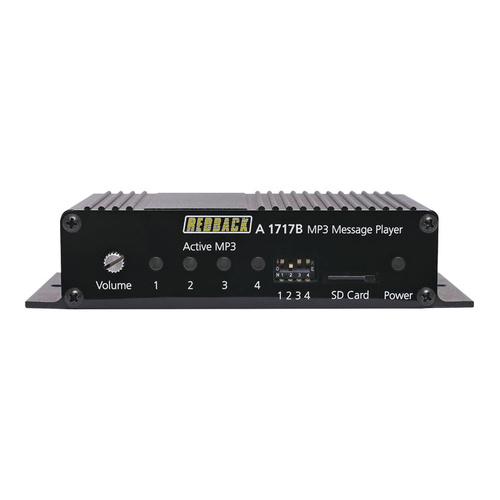

The A 1717B is an MP3 based message player housed in a compact flange mount aluminium enclosure and offers playback of four MP3 tracks. Ideal for custom programming, tones, messages or music for use in interactive displays, security, customer entry and emergency evacuation announcements.  When combined with a Redback A 1709/S 0080 timer it can be used to play back scheduled messaging. The included Micro SD card is preloaded with standard tones, including bell, bing bong, siren and pre-announcement chime, plus Australian Standard alert and evacuation tones (complying to AS1670.4). Playback for each track can be activated by a closing set of contacts. Contacts may be configured between alternate or momentary action. Trigger 4 contacts can be configured to provide a cancel playback switch. A 24V DC switched output is activated when any message is active. The unit is supplied with a 24V DC 1A power supply.

Features

• 4 custom tracks
• Inbuilt tone & phrase library
• 24V DC operation (plugpack included)
• SD card included
• Terminations via screw terminals
• Evac tones conform to Australian standard
• Optional cancel contact
• Switched 24V DC output

Specifications

Electrical

• Power supply: 24V DC to 30V DC 300mA (idle/maximum current draw 150mA) tip positive
• Output line: Stereo RCA 500mV nominal
• MP3 sample rate: 44kHz
• SD card size: 256MB to 16GB
• Trigger activation: Closing contact
• Switched output: 24-30VDC out (supply voltage dependent), limited to 120mA current draw

MP3 Info

• MP3 File Format: Minimum 128kbps, 44.1kHz, 32bit, VBR or CBR, Stereo
• Length/size: Limited by card size (1600mins @ 128kbps, 44kHz on supplied 16GB)
• Bit rate: All standard MP3 rates (128kbps recommended)
• Sample rate: All standard MP3 rates (44kHz recommended)
• Channels: Stereo or mono
