Overview

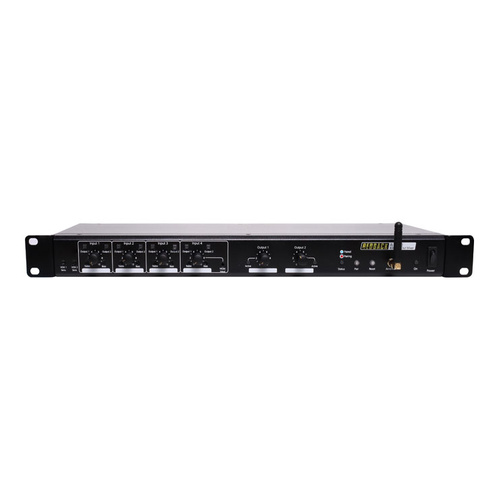

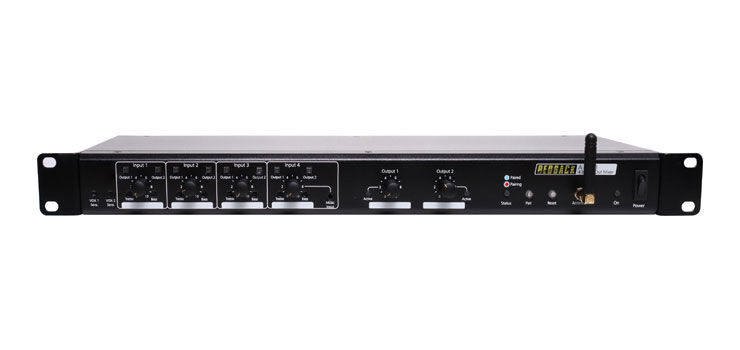

The Redback® mixer delivers a flexible and installer-friendly solution with one microphone/line input and three additional line inputs (all internally mixed to mono), plus a front-panel 3.5mm music input and integrated Bluetooth® receiver, both of which automatically override Input 4. Inputs can be routed to Output 1, Output 2, or both, with outputs provided on balanced XLR and RCA at 1V. Each input includes independent level, bass, and treble controls, with switchable RCA sensitivity (100mV/1V) and selectable +12V DC phantom power on the mic input.

Additional features include VOX muting from the mic input, 24V DC operation with battery backup terminals, and a compact 1RU 19" rack-mount chassis. Designed and assembled in Australia, the unit is backed by a 10-year warranty, offering installers a robust and versatile option for multi-source audio systems.

Features

• 1 microphone/ 4 line inputs (mono mixed internally)
• Front 3.5mm music input (overrides rear input 4 input)
• Bluetooth audio connection (overrides input 4 front and rear inputs)
• 2 outputs via XLR/RCA 1V balanced
• Level controls for all inputs
• Separate bass and treble controls on all inputs
• Adjustable input sensitivity on all RCA line inputs
• Phantom power selection on Mic inputs (12V DC)
• Route signals to each output or both outputs
• 24V DC input
• 24V DC battery back up terminals
• 1RU 19” rack mount case
• 10 Year Warranty
• Australian designed & assembled

Specifications

Audio:

• Output level: 0dBm
• Distortion: 0.01%
• Frequency response: 140Hz - 20kHz
• Mic input sensitivity: 3mV balanced
• Line input sensitivity: 100mV/1V

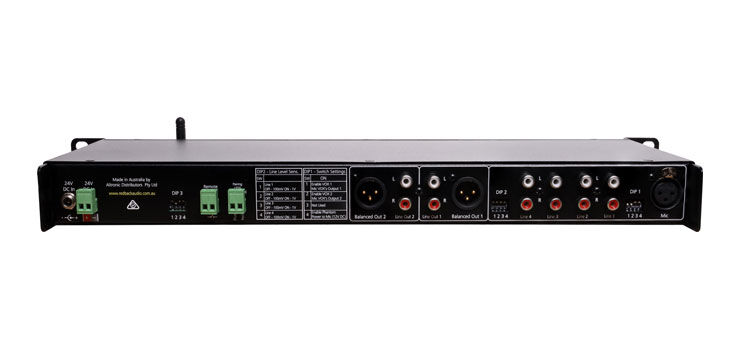

Connection:

• Output: RCA Line out (mono) or 3 pin XLR balanced
• Input - Microphone: 3 pin XLR
• Input - Aux: Dual RCA, 3.5mm stereo jack front panel, Bluetooth

Power:

• 24V DC power: Screw terminals, 2.1mm DC Jack
• Power supply: 24V DC

Controls & Indicators:

• Power: Standby Switch
• Bass: ±10dB @ 100Hz
• Treble: ±10dB @ 10kHz
• Output 1 and 2: Volume
• Indicators: Power on, BT status

Size & Weight:

• Dimensions: 482W x 175D x 44H
• Weight: 2.1 kg
