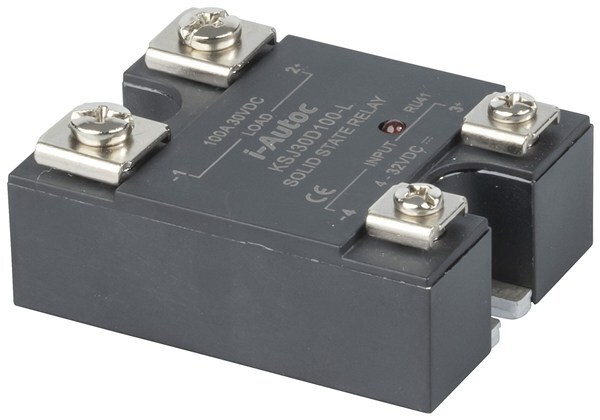

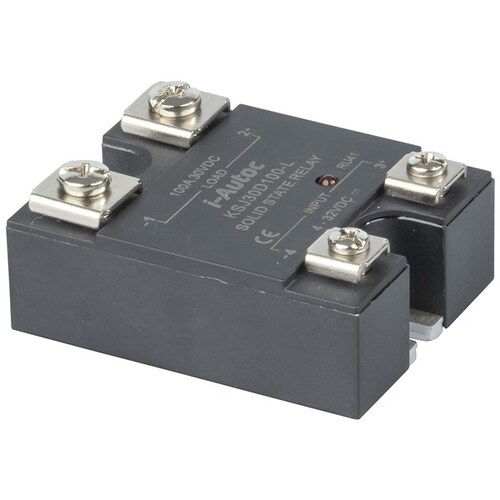

This panel mount solid state relay offers 4 -32VDC input control, with a switched output rated at 30VDC/ 100Amps. Switching high current DC loads normally requires use of a contactor to avoid arcing as the contacts try to separate. This solid state relay uses MOSFET technology to provide an economical and reliable method of switching medium to high power DC loads. This means there is no arcing and the low on-state resistance provides a viable alternative to the bulky and expensive contactors.

Note: Inductive loads must have diode suppression (Refer data sheet wiring diagram)

Output Circuit
• Load Voltage: 0-30VDC
• Load Current: 0.02-100A
• Max On-State Resistance: 0.007Ohms
• Max On-State Voltage Drop: 0.35V
• Max Turn On Time: 0.5ms
• Max Turn Off Time: 0.5ms
• Max Surge Current: 240A (10ms)

Input Circuit
• Control Voltage: 4-32VDC
• Control Current: 28mA max.
• Min Turn Off Voltage: 1.0VDC
• Input Resistance: 1.2kOhm

Specifications

DC Voltage : 3.00000000V, 32.00000000V
DC Current Draw : 28.00000000mA
Mounting Method : Chassis
Attachment / Securing Method : Screw Down
Mount Screw Quantity : 2.00000000pc
Mount Screw Size : 2.00000000mm
Overall Screw Spacing (H) : 47.50000000mm
Device Type : Solid State Relay
Input : DC
Contact format : SPST
DC Contact Voltage : 0.00000000V, 30.00000000V
DC Switching Current (Closing) : 0.02000000A, 100.00000000A
Operation Time : 0.50000000ms
Release Time : 0.50000000ms

(SY4086)

SKU SY4086
Model # SY4086
Brand BOURNE
