Overview

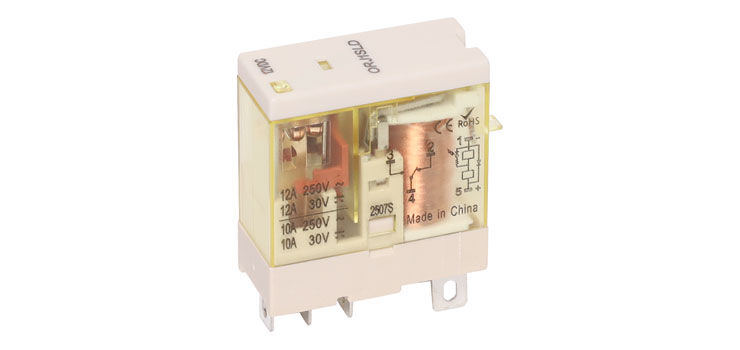

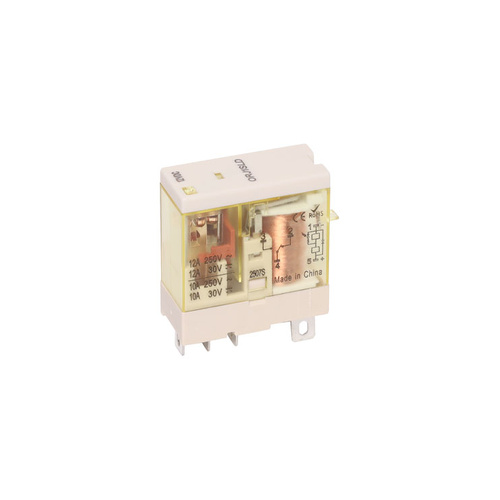

This 12A 12VDC SPST Cradle Relay acts like a simple on-off switch for a single electrical circuit. The cradle provides a secure mounting point and connection terminals for the relay, making it useful in applications like automotive electrical systems.

 Specifications

• Resistive Load: 12A/250V AC, 30V DC
• Resistive switching power: 3000VA, 360W
• Electrical Life: ?100,000 cycles
• Initial contact resistance: ?50m?
• Insulation resistance: ?100m? (500V DC)
• Coil power: DC: About 0.53W. AC: About 0.9VA
• Contact release time: AC: ?20ms. DC: ?10ms. Diode: ?20ms
• Operating temperature: -40°C to 70°C
• Impact resistance: Stability 98m/S². Strength 980m/S²
• Installation: Plug-in Installation
• Weight: ~20g

Power frequency withstand voltage:

• Between contacts of the same pole: 1,500V AC, 1min
• Between contacts of the opposite pole: 3,000V AC, 1min
• Between contact and coil: 3,000V AC, 1min

Materials:

• Contact: SIlver Alloy
• Body: PC
• Base: PBT
