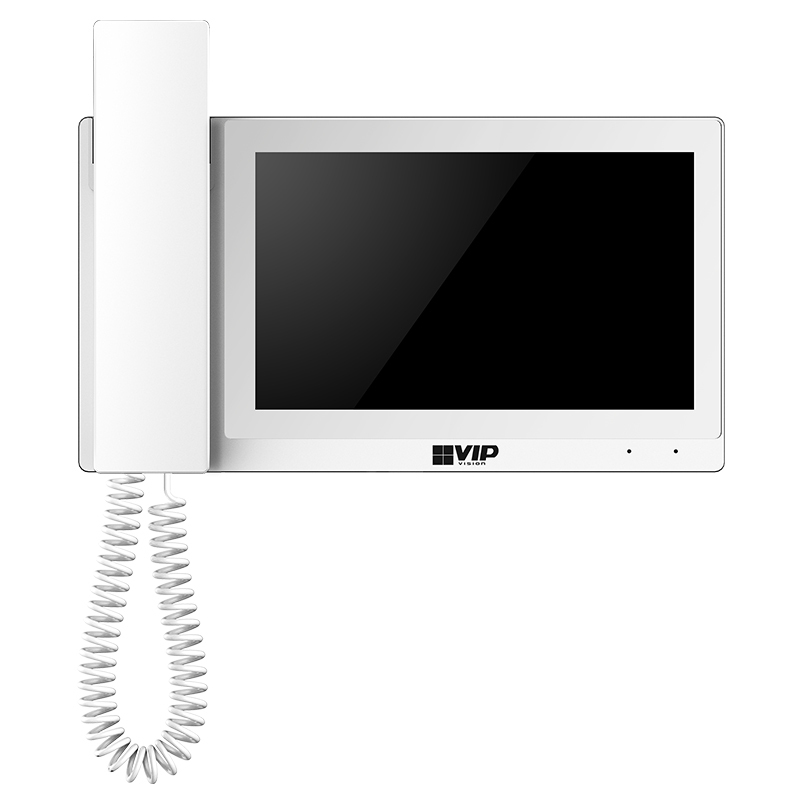

The INTIPMONDWH is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor communicates with the apartment door station via handset, and features live-view of the door station camera.

Product features

• 1024 x 600 7" TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Door station & IP camera live viewing
• Alarm system integration
• MicroSD storage (up to 32GB)
• Wall-mounted handset design
• Connection via LAN only.
• Not compatible with INTIPRDSDB or other door stations that do not have SIP firmware available.

Specifications

Monitor

• Main Processor - Embedded Microprocessor
• Video Compression - H.264
• Audio Input - Omni-directional Microphone / Handset
• Audio Output - Embedded loudspeaker / Handset
• Bidirectional Talk - Support
• Display Size - 7” Colour TFT LCD (1024 x 600) Capacitive Touchscreen
• Display Resolution - 1024 x 600
• Alarm Support - 6 Input / 1 Output
• Operational Input - Capacitive Touchscreen / Mechanical Keys
• Internal Capacity - MicroSD Slot, up to 32GB
• Ethernet - 10 / 100Mbps Self-adaptive
• Network Protocol - SIP

Environmental

• Operating Temperature - -10 ~ +55°C / 10 ~ 90%RH (max.)
• Installation - Surface Mountable. Optional bracket (INTIPMONDH-B) for desktop mount
• Power Input - 12VDC, PoE (802.3af)
• Power Consumption - Standby < 3.5W / Operation < 5W
• Dimensions - 236mm x 166mm x 42mm

Other

• Series - D Series
