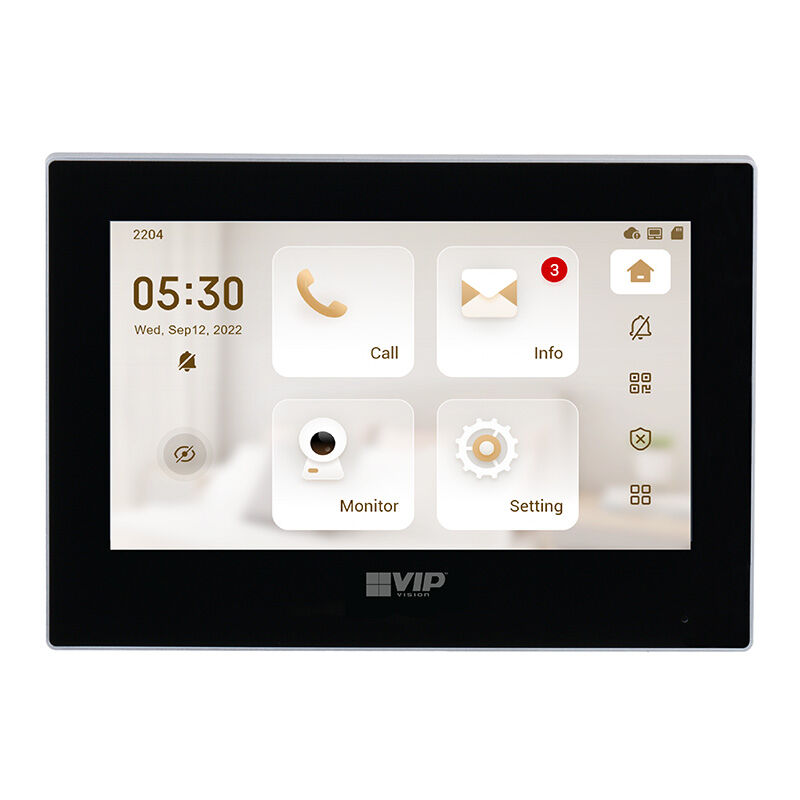

Residential Series Touchscreen IP Intercom Monitor (Black) INTIPMONKB

The INTIPMONKW is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk, featuring live-view of the door station camera.

Features:

•  Record and snapshot video calls/messages
•  All calls and messages logged
•  Prevent unwanted calls with Do Not Disturb mode
•  Alarm system integration
•  7" TFT capacitive touch screen
•  MicroSD storage (up to 32GB), card sold separately

Specifications

Monitor

• Main Processor : Embedded Processor
• Video Compression : H.264 ; H.265
• Audio Input : Omni-directional Microphone
• Audio Output : Embedded Loudspeaker
• Bidirectional Talk : Support
• Display Size : 7" Colour TFT LCD
• Display Resolution : 1024 x 600
• Alarm Support : Yes; 6 Input channels / 1 output channel
• Operational Input : Capacitive touchscreen
• Internal Capacity : MicroSD Slot, up to 32GB
• Ethernet : 10M/100Mbps adaptive
• Network Protocol : RTSP; RTP; SIP; DNS; SSH

Environmental

• Operating Temperature : -10 ~ +55°C / 10 ~ 90%RH (max.)
• Installation : Surface Mount
• Power Input : 12VDC / 1A, PoE (802.3af)
• Power Consumption : Operation < 6W
• Dimensions : 189.6mm x 134.6mm x 26mm
• Weight : 0.34kg
