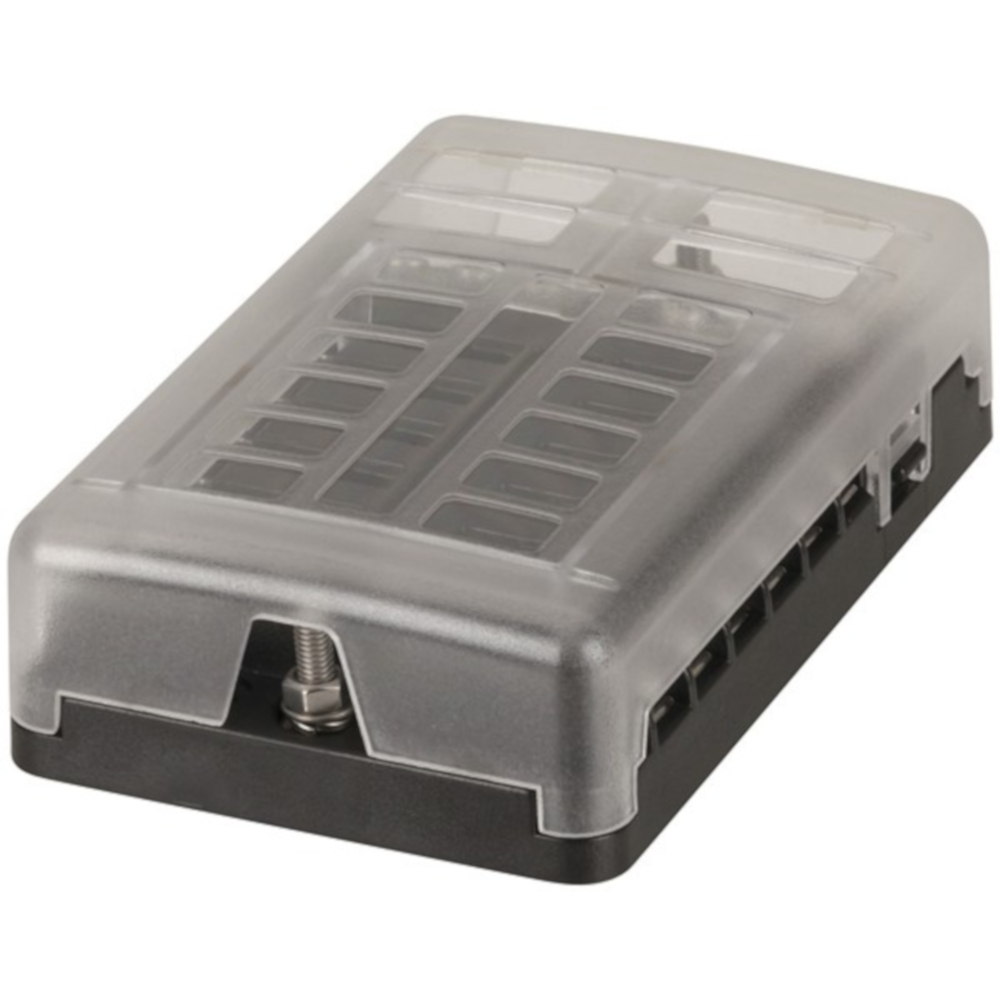

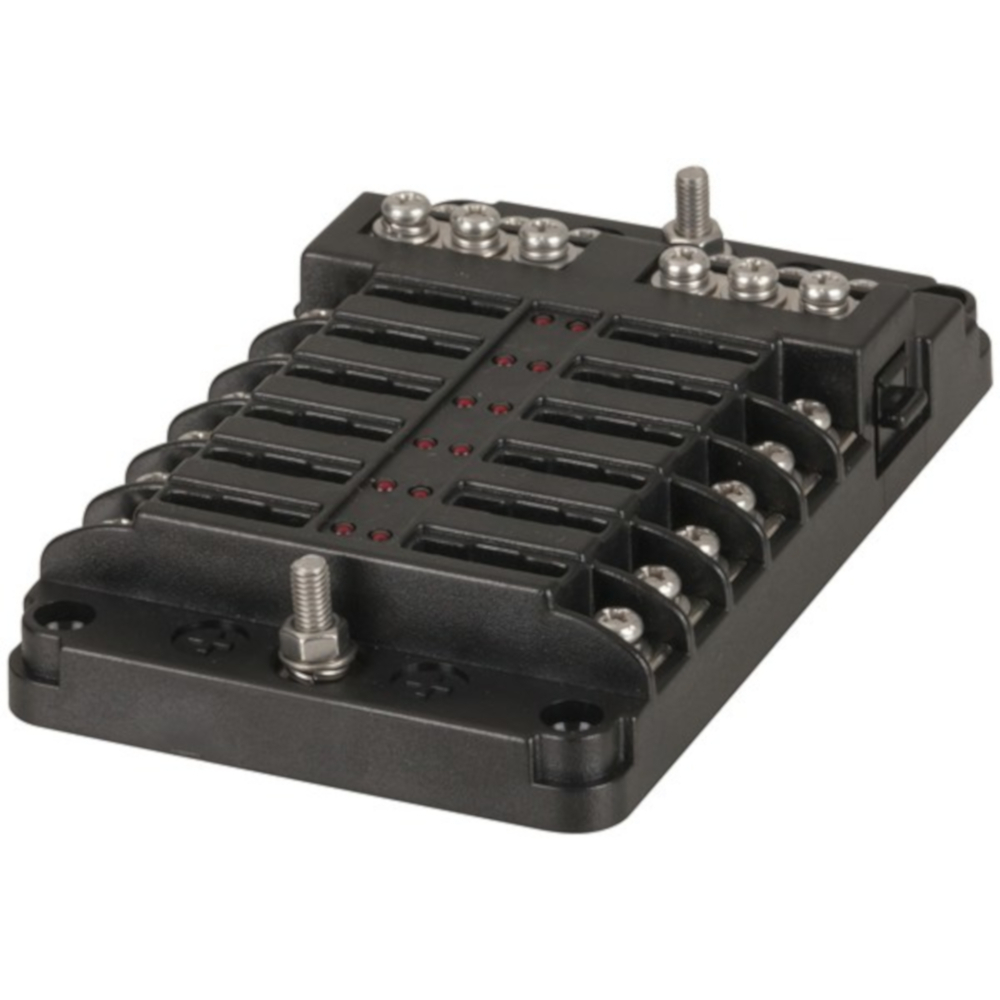

12 Way Fuse Block with Bus Bar Red LED blown fuse indication
This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar
Specifications:
Main Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Wire Size: #4-6 AWG
Single Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
Width : 85.0mm
Height : 138.0mm
Depth : 37.0mm
Weight : 250.0g
(SZ2032)
| SKU | SZ2032 |
| Model # | SZ2032 |
| Barcode # | 9319236747759 |
| Brand | BOURNE |
| Artist / Author | Revathy |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.085m |
| Shipping Height | 0.138m |
| Unit Of Measure | 1 |
| Assembled Height | 0.138m |
| Assembled Width | 0.085m |
12 months
