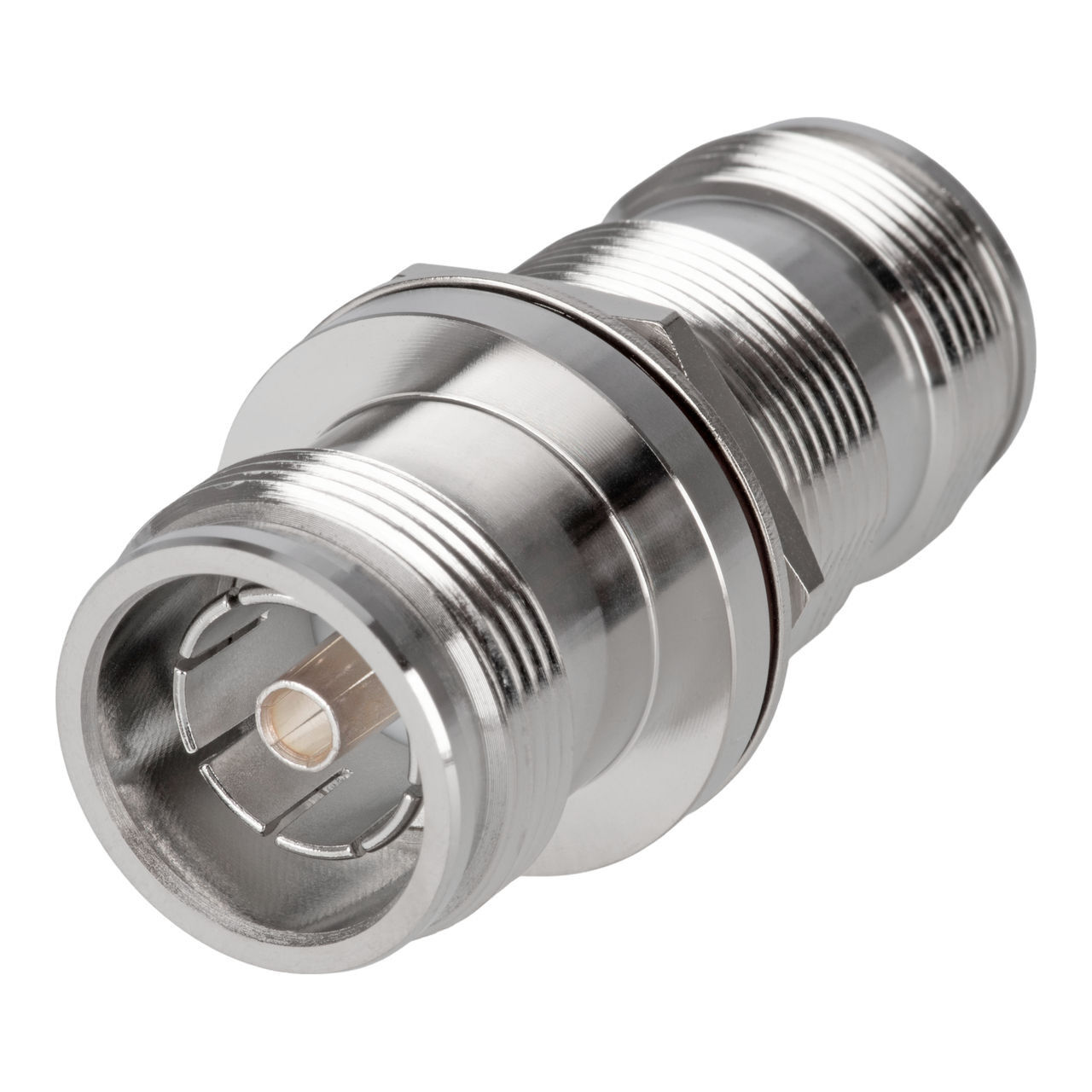

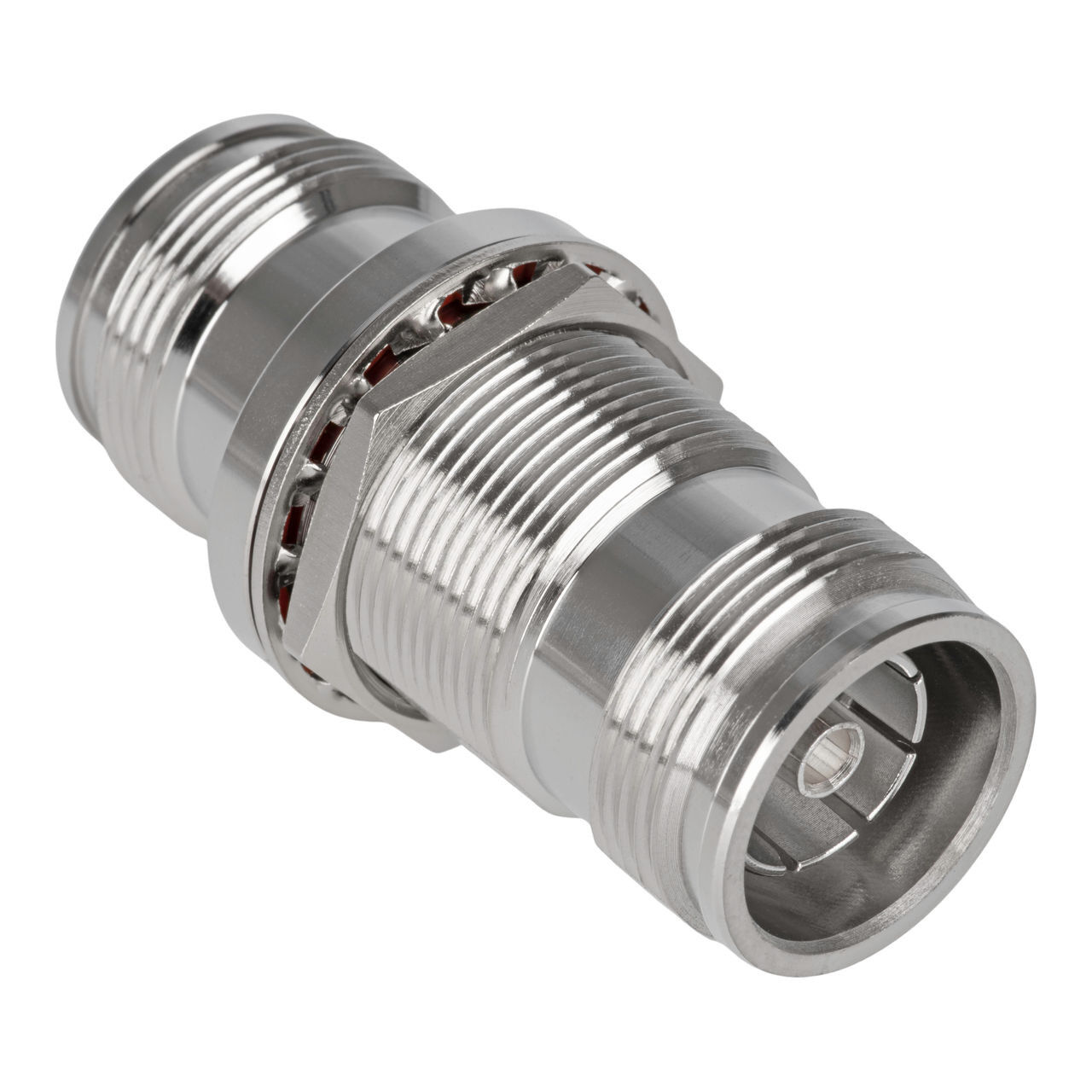

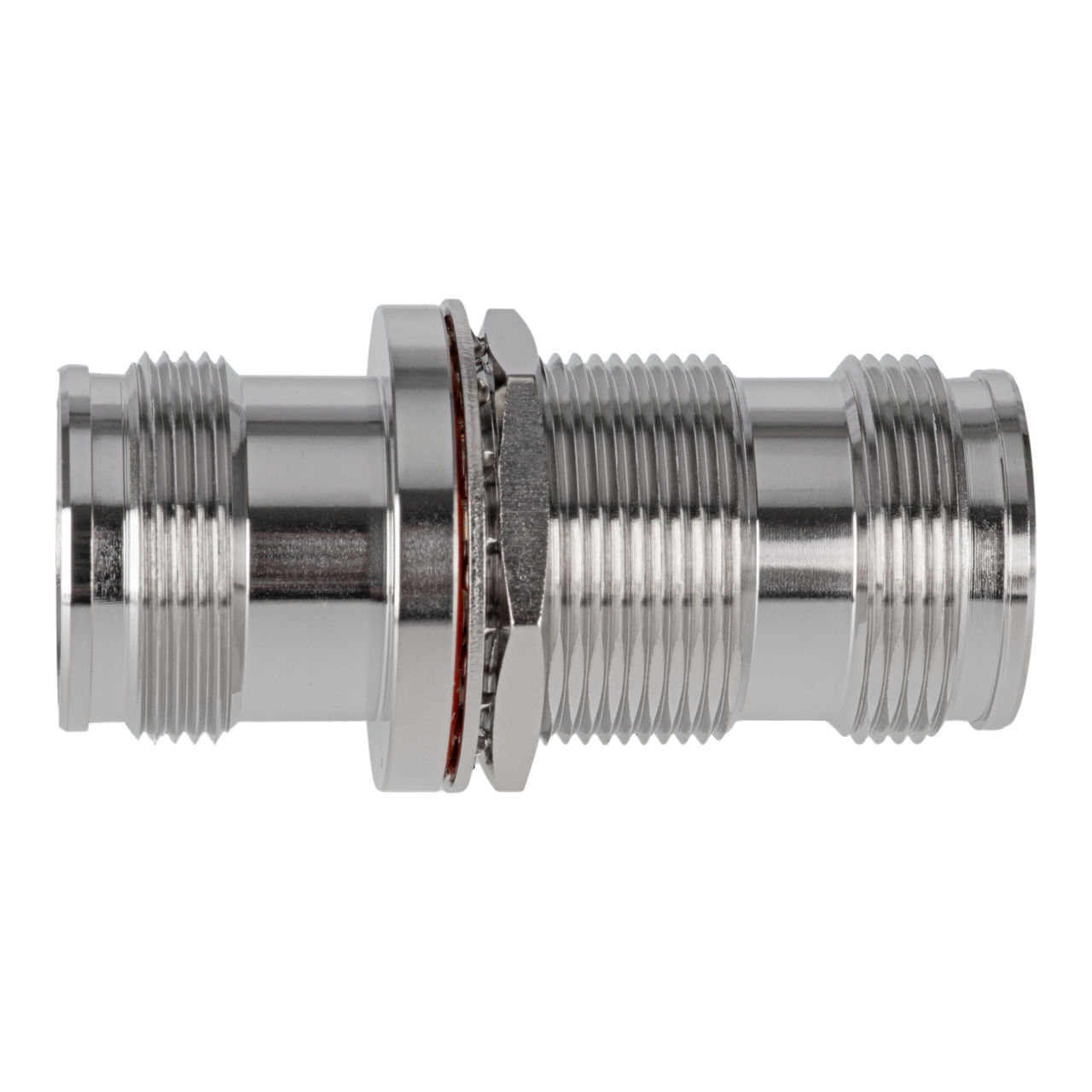

RF Adapter 4.3-10 Female to 4.3-10 Female Secure Bulkhead Connector IBC-PT-00035 AD-432432-BRM
SKU: IBC-PT-00035
Powertec RF Adapter, 4.3-10 Female to 4.3-10 Female Bulkhead. High-quality connector for seamless signal transmission. Ensure optimal performance and secure connections. Ideal for professional setups.
High-Performance 4.3-10 Female to 4.3-10 Female Bulkhead Connector for Reliable and Secure RF Connections
This RF Adapter is a high-performance RF connector designed for seamless integration in demanding environments. This connector features a 4.3-10 female-to-female bulkhead configuration, making it ideal for applications requiring secure and reliable connections. Engineered with precision, it ensures superior electrical and mechanical performance.
Key features
- Impedance 50 Ohm: Optimized for minimal signal loss and maximum power transfer in RF systems.
- VSWR ≤ 1.15: Ensures low voltage standing wave ratio for efficient signal transmission with minimal reflection.
- Frequency Range DC to 6 GHz: Supports a wide range of applications, including high-frequency communication systems.
- Insertion Loss ≤ 0.1 dB @ DC-3.0 GHz: Guarantees minimal signal loss, maintaining the integrity and strength of the transmitted signal.
- Temperature Range -40°C to +85°C: Designed to operate reliably in extreme environmental conditions.
- RoHS Compliance Yes: Environmentally friendly, meeting the Restriction of Hazardous Substances directive.
| Product Specification | |
|---|---|
| Product Type | 4.3-10 Female to 4.3-10 Female Bulkhead (Nut Mounted) |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstanding Voltage | 2500V rms (DC) |
| Operating Voltage | 1000V rms |
| VSWR | ≤ 1.15 |
| PIM Performance | ≤ -165 dBc |
| Frequency Range | DC to 6 GHz |
| Insertion Loss | ≤ 0.1 dB @ DC-3.0 GHz |
| Durability | ≥ 500 mating cycles |
| Temperature Range | -40°C to +85°C |
| RoHS Compliance | Yes |
| Construction Materials | |
| Inner Conductor Pin | Brass with Silver Plating |
| Body & Outer Conductor | Brass with Trimetal Plating |
| Insulator | PTFE |
| Gasket | Silicon Rubber |
| Nut | Brass with Nickel Plating |
| Compliance and Testing | |
| Vibration Test | MIL-STD-202, Method 204, Condition A |
| Mechanical Shock Test | MIL-STD-202, Method 213, Condition D |
| General Information | |
|---|---|
| Manufacturer: | Powertec |
| Manufacturer Part Number: | AD-432432-BRM |
| Barcode: | 9337692001741 |
| Bulkhead: | Yes |
| Connector Type 1: | 4.3-10 Female |
| Connector Type 2: | 4.3-10 Female |
| Packaging Details | |
| Weight: | 0.10 KGS |
| Width: | 1.00 (cm) |
| Height: | 2.00 (cm) |
| Depth: | 1.00 (cm) |
(IBC-PT-00035)
| SKU | IBC-PT-00035 |
| Model # | AD-432432-BRM |
| Barcode # | 9337692001741 |
| Brand | POWERTEC |
