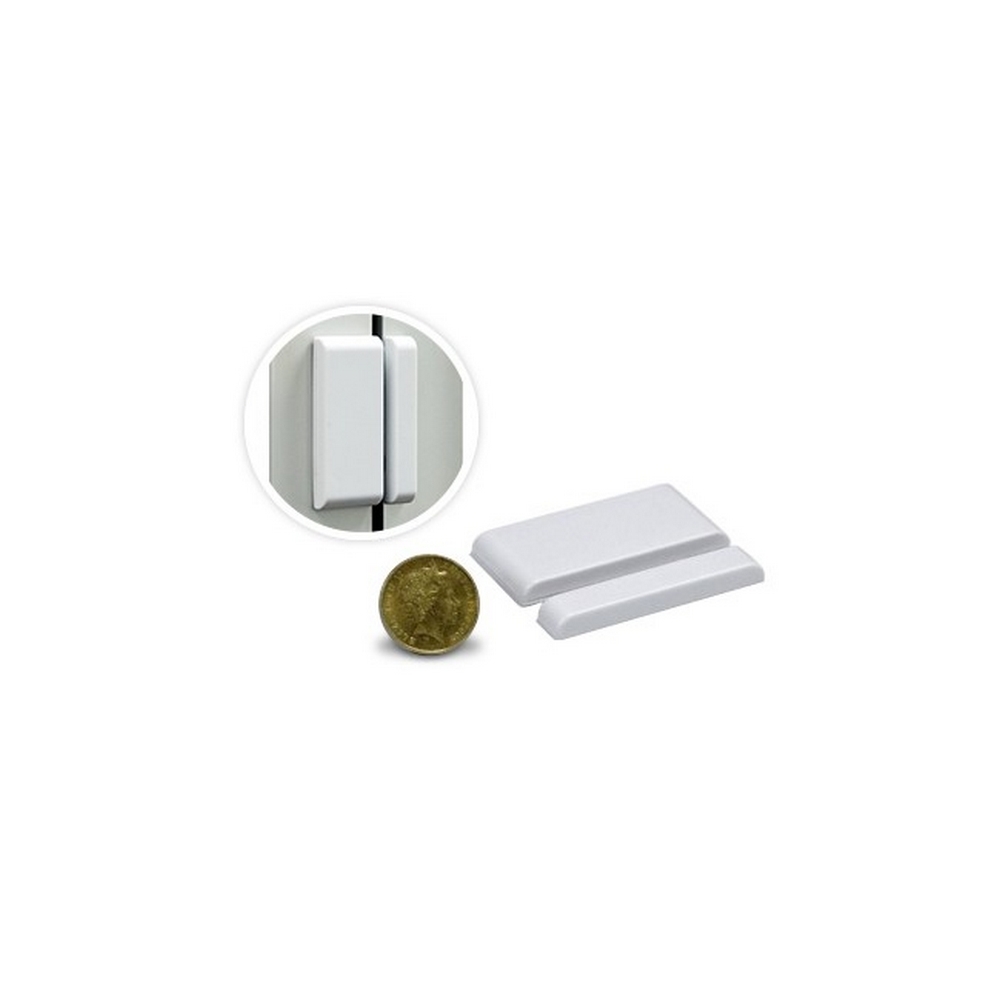

An ultra low profile wireless reed switch for unobtrusive protection.

The Ness RR3 Micro Radio Reed Switch is a battery operated radio transmitter with internal reed switch.

The ultra low profile body of the reed switch and supplied magnet allows for unobtrusive installation on door and window frames in cases where wired reed switches cannot be used.

  • On-board reed switch
  • Fully supervised, encrypted signals
  • Compatible with all Ness radio receivers
  • Lithium battery operation
  • Ultra low standby current draw
  • Unique Earthing spring for extra range
  • Self adhesive pad mount
OPERATION VOLTAGE 3V Lithium
STANDBY CURRENT DRAW                Typically 4µA
SIGNALS TRANSMITTED 1. Alarm/Restore
2. Low Battery
3. Supervision signal hourly
4. Learn message
RADIO SECURITY Encryption. Supervised operation
FREQUENCY 303.85MHz/868MHz
INDICATOR LED (concealed, visible through front housing)
DIMENSIONS (H - W - D) 60 x 28 x 7 mm
WEIGHT 20g

(106-091)

12 Months
SKU 106-091
Model # 106-091
Brand NESS
Unit Of Measure Each
Assembled Width 0.022m
