Overview

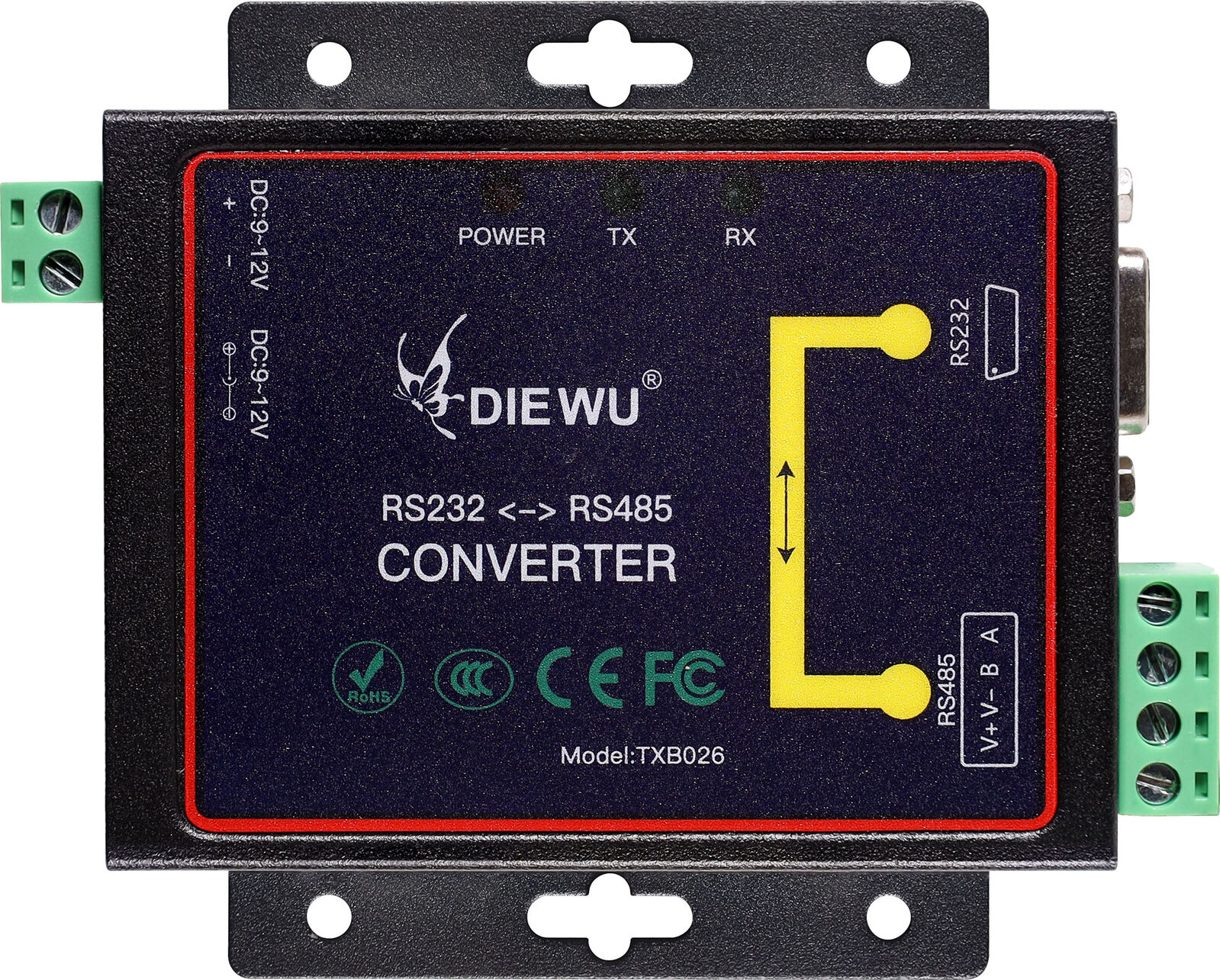

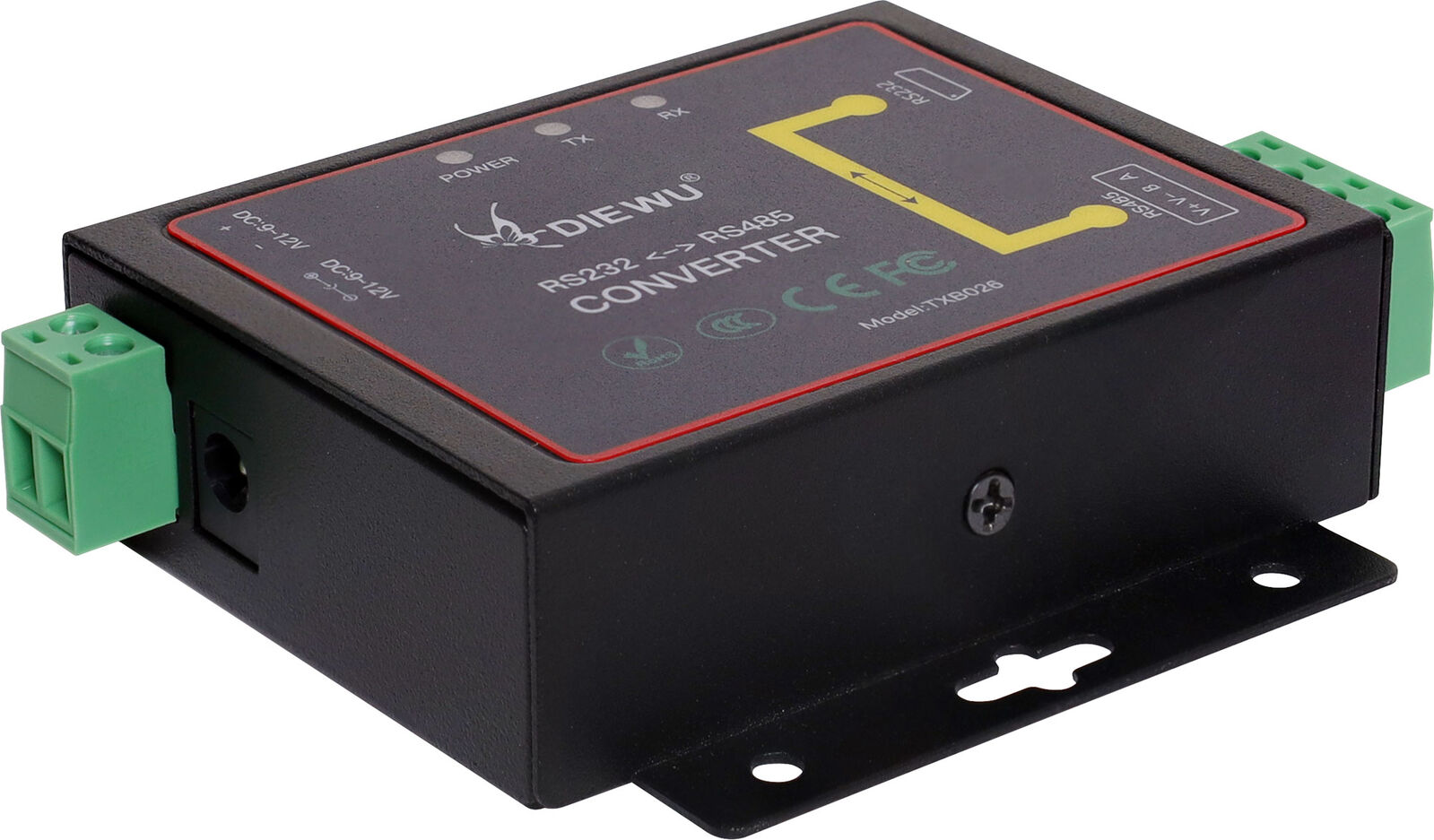

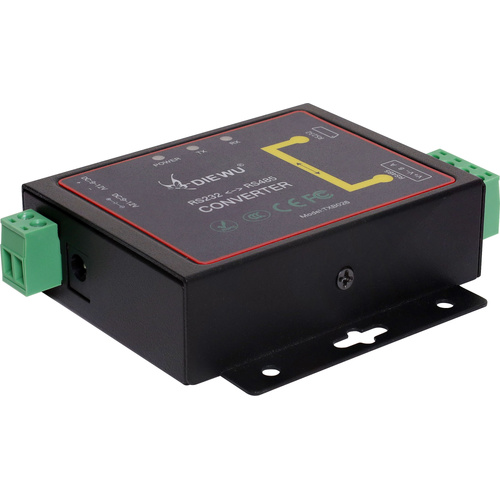

Easy convert RS-232 signals into RS-485 signals allowing devices with incompatible hardware interfaces to exchange data. Ideally used with industrial automation, security systems and more. 9-12V DC input.

Specifications

  • Chipset: ZT323+ZT485
  • Port Number: 1 x female com port, 1*RS485 port
  • Standard: compatible with RS232 and RS485 standard
  • LED Indicator: Power, TX, RX
  • Baud rate: 300bps~115200bps
  • Dimensions: 94x86x25mm
  • Power Input: 9V-12V DC
  • Power Consumption: 0.15W Max
  • Operating Temperature: -10°C to 55°C
  • Relative Humidity: 10%-90% (non-condensing)
  • Storage Temperature: -40°C to 85%.
  • Relative Humidity: 5%-90% (non-condensing

    *Specifications are subject to change without notice.

(D4209)

SKU D4209
Model # D4209
Barcode # 9321758264331
