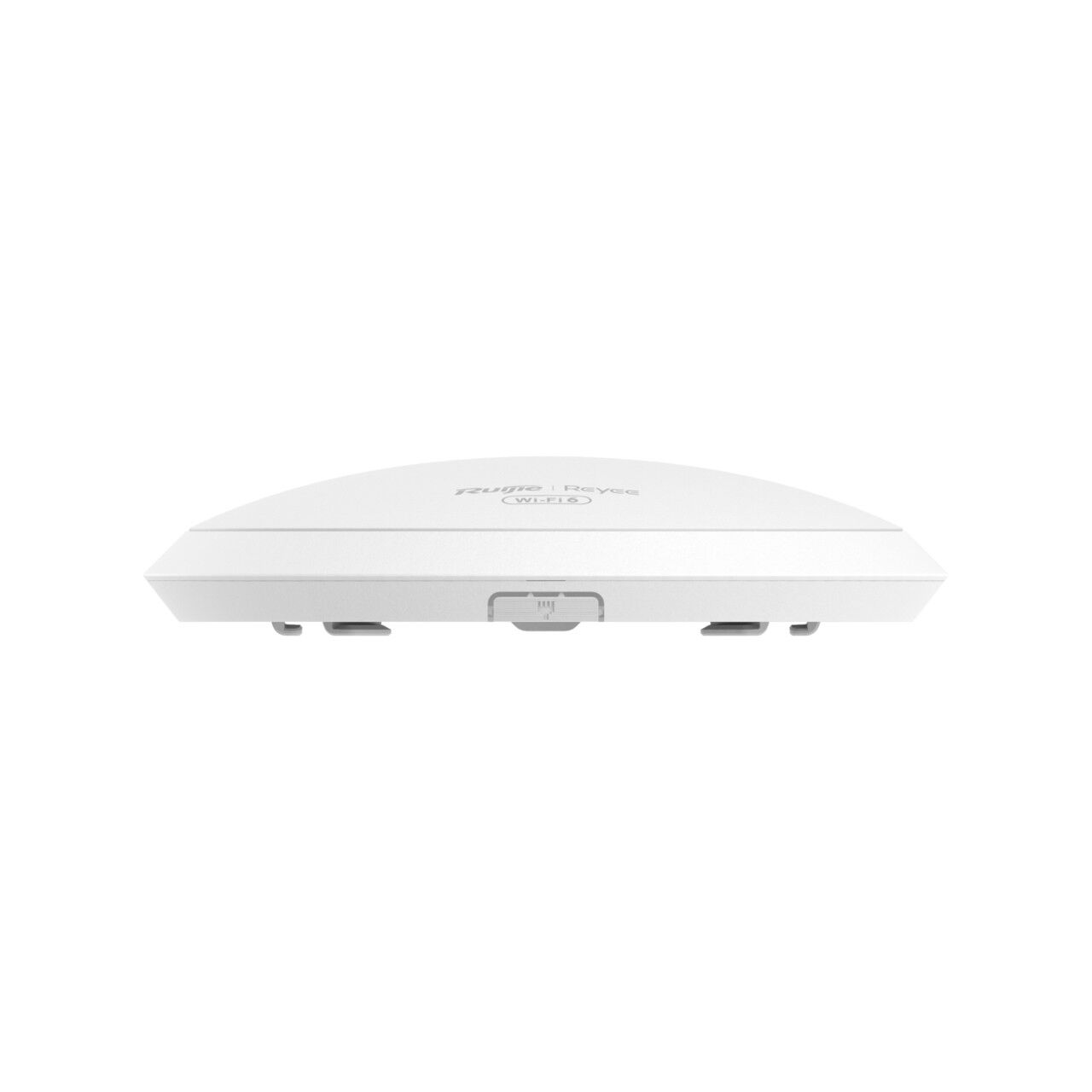

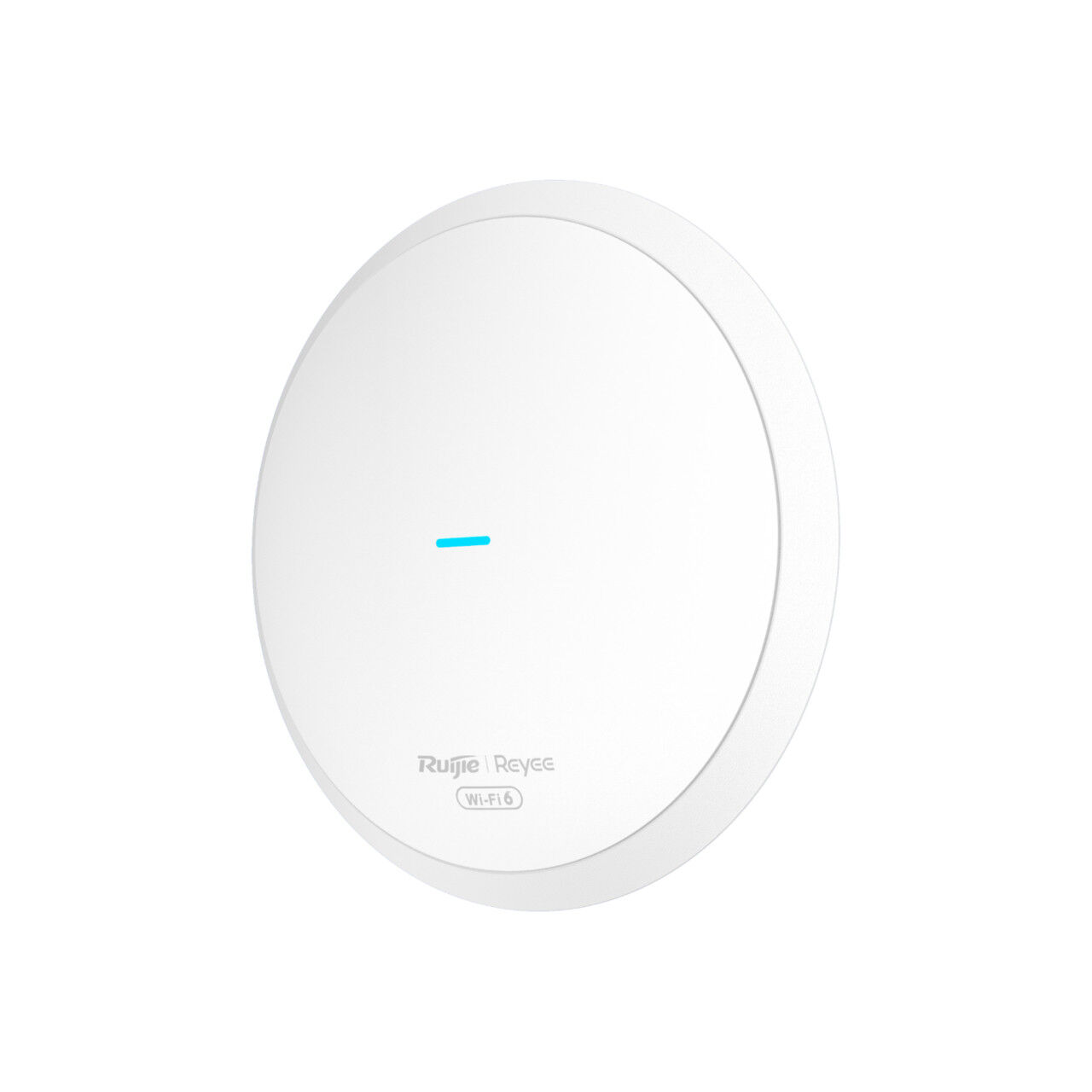

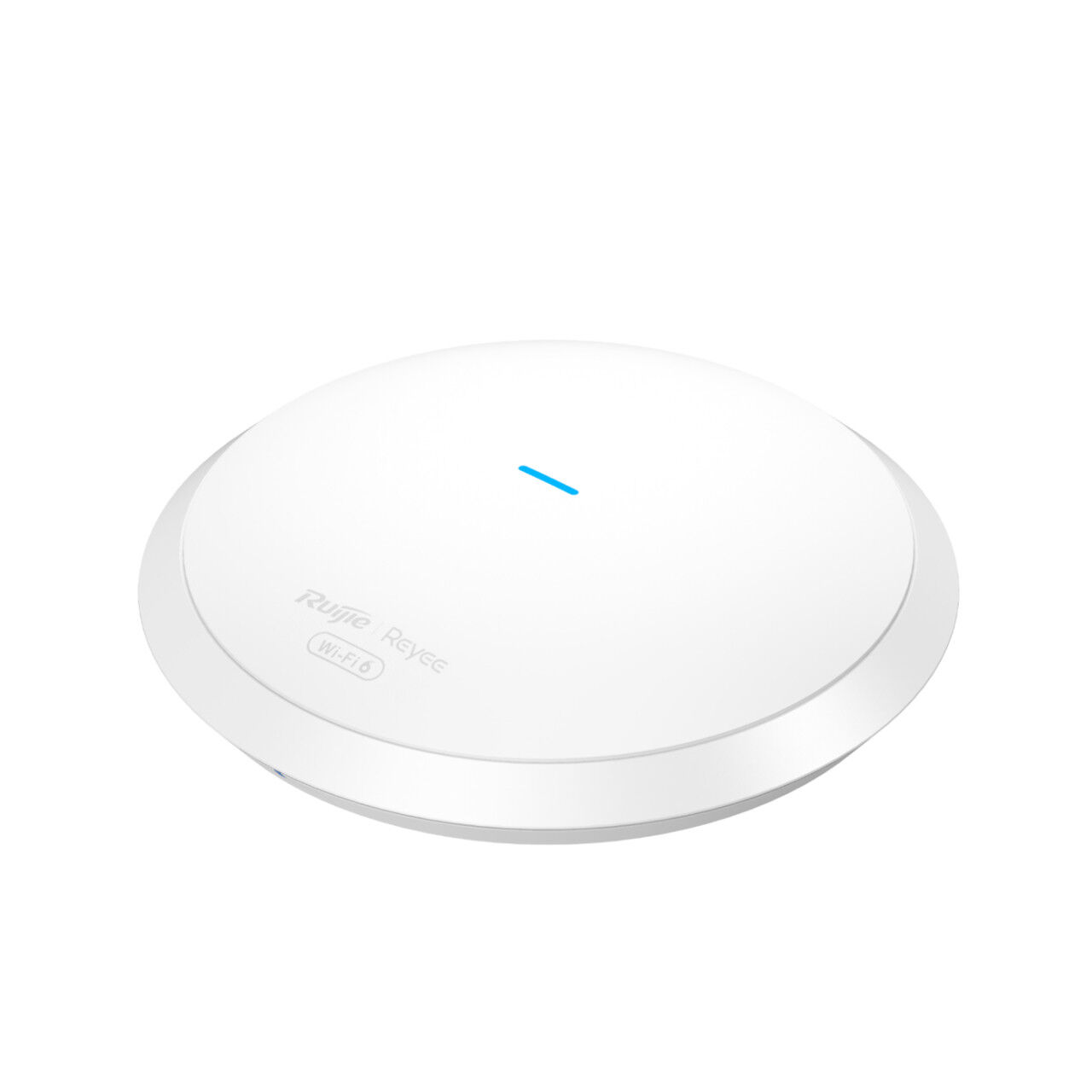

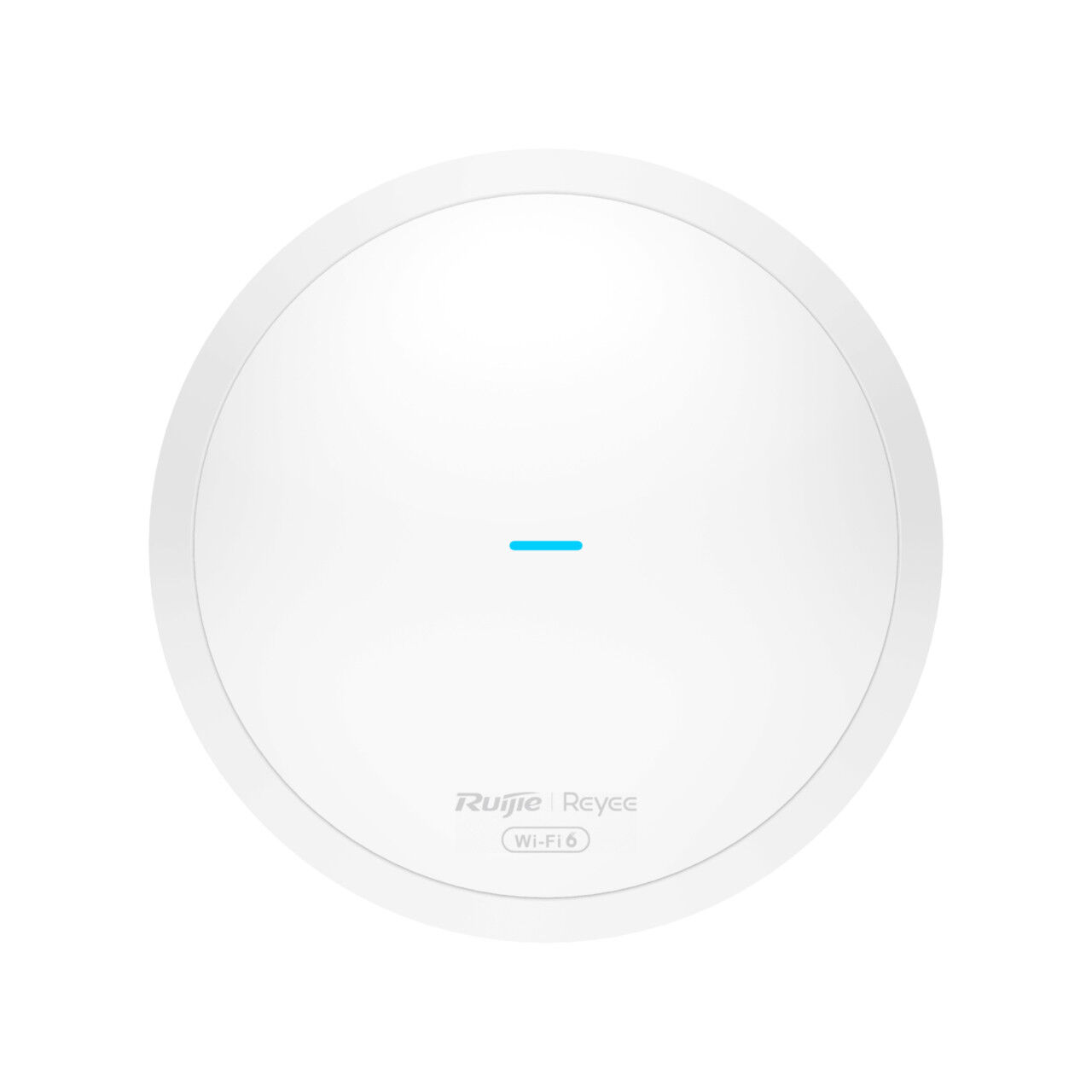

Ruijie Reyee RAP62 Wi-Fi 6 AX1800 Dual-band Ceiling Access Point WIF-RY-00301
SKU: WIF-RY-00301
Fast, Reliable Indoor WiFi 6 Performance for Modern Networks
The RG-RAP62 is a dual-band, ceiling-mount indoor access point delivering AX1800-class WiFi 6 speeds ideal for small businesses, offices, and smart homes. Designed for high-density environments, it supports simultaneous connections with enhanced stability and lower latency. Its clean, discreet form factor ensures seamless installation on ceilings or walls, while centralised cloud management offers simplified network oversight.
Key Features
- WiFi 6 AX1800 Performance: Supports the 802.11ax standard with up to 574 Mbps on 2.4GHz and 1201 Mbps on 5GHz for fast and efficient throughput.
- Ceiling-Mount Slim Design: Sleek, compact form factor allows discreet installation in indoor settings with wide signal coverage.
- Dual-Band Connectivity: Ensures optimal wireless performance and device compatibility across both 2.4GHz and 5GHz frequency bands.
- Centralised Cloud Management: Compatible with Ruijie Cloud for real-time remote monitoring, configuration, and maintenance.
- High User Capacity: Designed for environments with many concurrent users, maintaining performance and stability under load.
This ceiling-mount access point is the ideal solution for fast, modern indoor wireless networks with reliable coverage and enterprise-grade efficiency.
| General Specifications | |
|---|---|
| Model | RG-RAP62 |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Maximum Throughput | 1774 Mbps (2.4GHz: 573 Mbps, 5GHz: 1201 Mbps) |
| Frequency Bands | 2.4GHz and 5GHz (Country-specific limits apply) |
| Spatial Streams | 2x2 MIMO (both 2.4GHz and 5GHz) |
| Coverage Area | Up to 125 m² |
| Antenna Type | Omni-directional (4.58 dBi @5GHz, 3.13 dBi @2.4GHz) |
| Hardware Specifications | |
| Dimensions | 175 mm (Ø) x 39 mm (H) |
| Weight | ≤ 0.4 kg |
| LAN Ports | 1 x 10/100/1000BASE-T (PoE/PoE+ supported) |
| Power Supply | 12V/1.5A DC or 802.3af/at PoE |
| Power Consumption | ≤ 12.95W |
| Mounting Options | Ceiling and Wall Mount |
| IP Rating | IP41 |
| Lightning Protection | ±2 kV |
| Software Features | |
| Operating Modes | Router Mode, AP Mode |
| Max SSIDs | 8 |
| Client Capacity | Up to 100 clients (16 @2.4GHz, 84 @5GHz in 11ax) |
| Mesh Support | Reyee Mesh |
| Roaming Support | 802.11k/v/r, Layer 2/3, AI Roaming |
| Security | WPA3, WPA2, WPA, PSK, 802.1X, OWE |
| Management | Ruijie Cloud, Web UI, Ruijie App, SNMP |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| General Information | |
|---|---|
| Manufacturer: | Ruijie Reyee |
| Manufacturer Part Number: | RG-RAP62 |
| Barcode: | 6971693277519 |
| Packaging Details | |
| Weight: | 0.65 KGS |
| Width: | 19.00 (cm) |
| Height: | 7.00 (cm) |
| Depth: | 21.00 (cm) |
(WIF-RY-00301)
| SKU | WIF-RY-00301 |
| Model # | RG-RAP62 |
| Barcode # | 6971693277519 |
| Brand | Ruijie Reyee |
