High-performance Ceiling Access Point for Seamless Coverage
This advanced ceiling-mounted wireless access point delivers next-generation Wi-Fi 7 performance with BE3600 dual-band capability, ideal for villas, retail spaces, and hospitality environments. Featuring a sleek, compact design, it supports up to 100 clients, offers AI-driven wireless optimisation, and integrates seamlessly with Reyee Mesh for expansive coverage. Designed for both easy installation and powerful standalone operation, it ensures stable, high-speed connections with robust security and management features.
Key Features
- Wi-Fi 7 BE3600 Performance: Supports the latest IEEE 802.11be standard with 2.4 GHz and 5 GHz dual-band connectivity for ultra-fast speeds up to 3570 Mbps.
- High-capacity Client Support: Handles up to 100 connected devices with efficient load balancing and seamless roaming for uninterrupted connectivity.
- AI Wireless Optimisation: Automatically adjusts channel, transmit power, and frame settings for optimal network performance.
- Reyee Mesh Integration: Easily pairs with other Reyee devices for expanded wireless coverage without complex configurations.

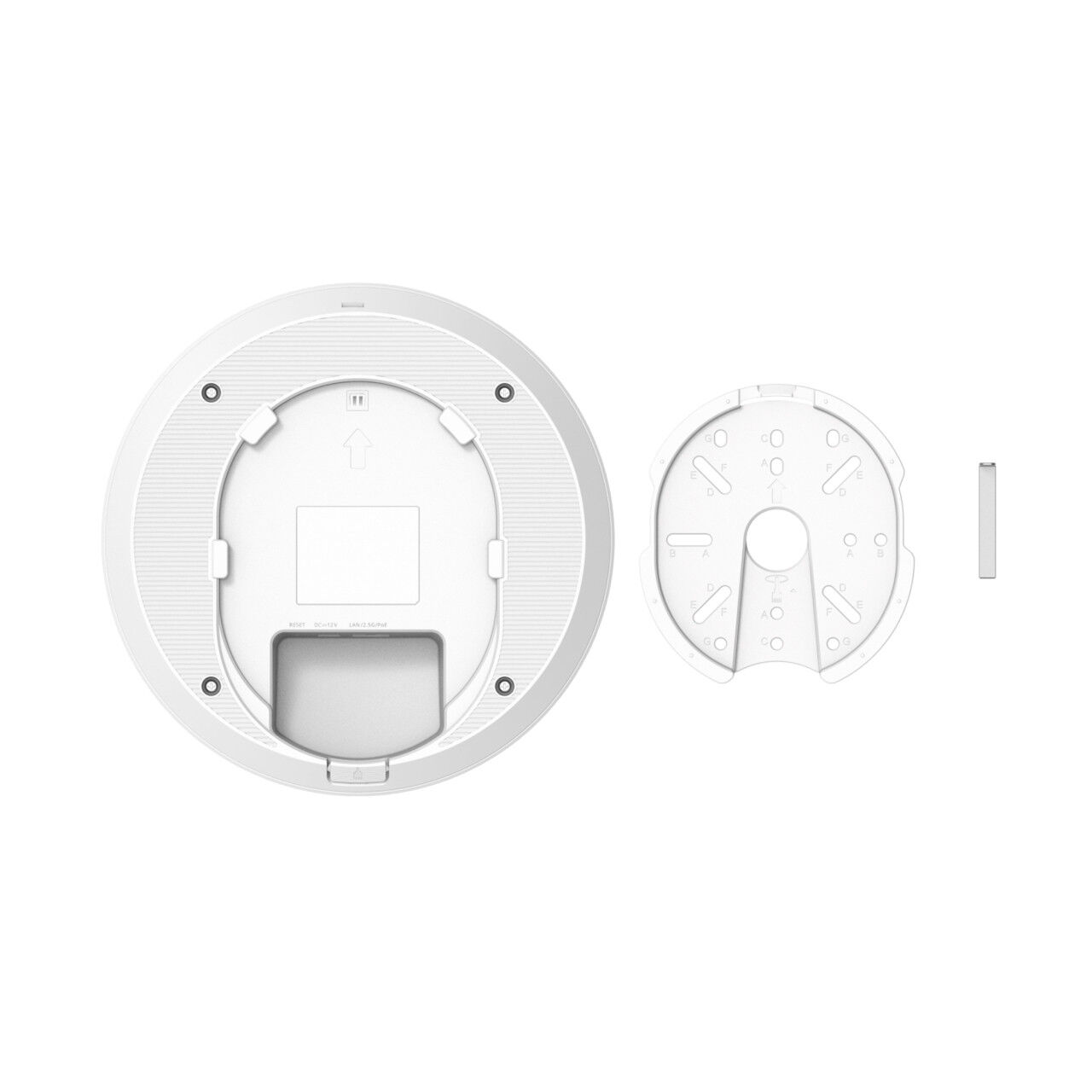

- Versatile Mounting Options: Supports ceiling and wall mounting for flexible deployment in various environments.
- Enhanced Security: Offers WPA3, WPA2, OWE, 802.1X authentication, and VLAN support to protect network integrity.
- Multiple Management Methods: Manage locally via web interface, on-site through the Reyee app, or remotely via Ruijie Cloud.

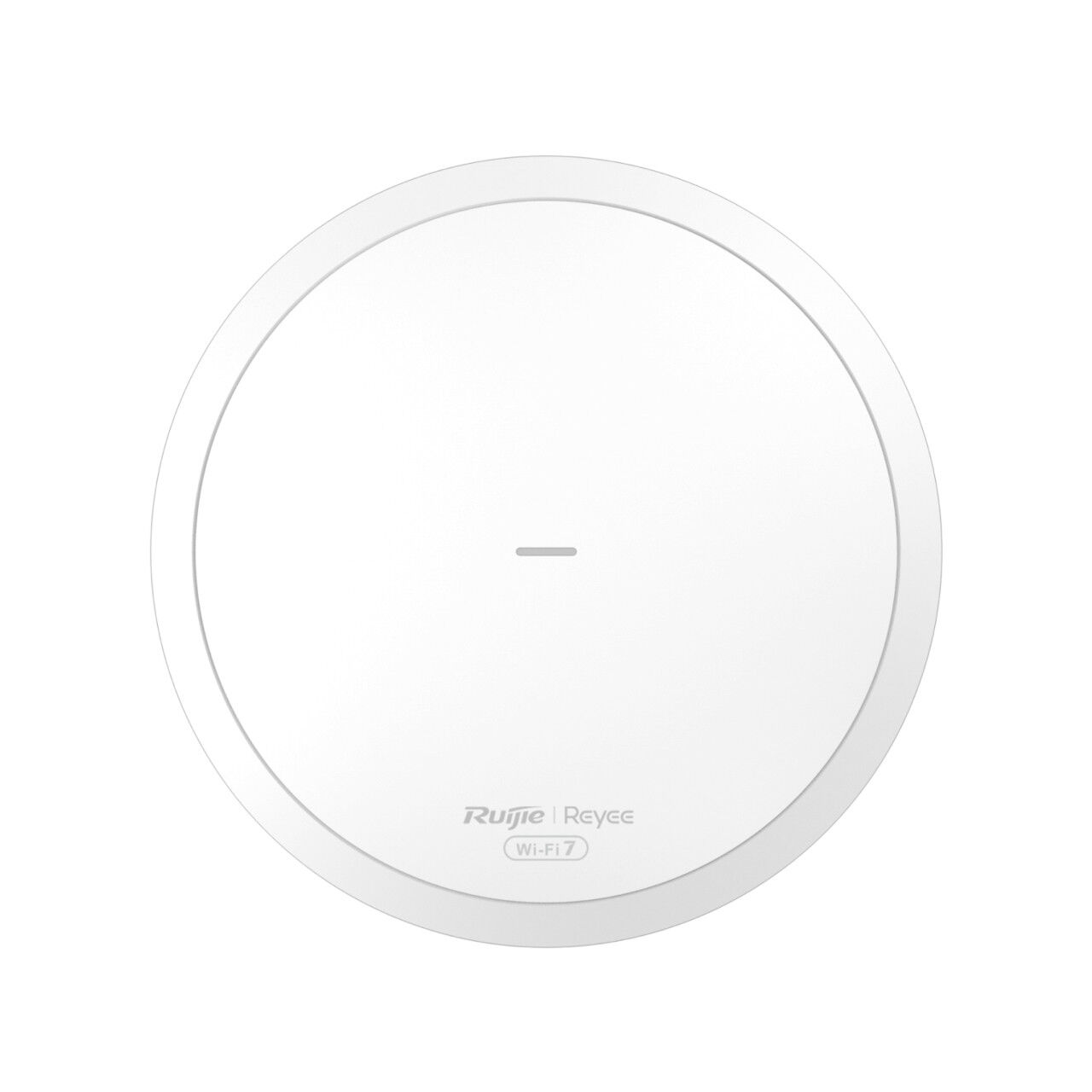

- Compact Sleek Design: 195 mm diameter and 41 mm height, blending into interiors with Ruijie White W-1 finish.
Delivering cutting-edge wireless technology in a stylish form factor, this solution ensures consistent, high-speed coverage for demanding commercial and residential environments.
| Product Specifications | |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be |
| Max Throughput | 3570 Mbps (5 GHz: 2882 Mbps, 2.4 GHz: 688 Mbps) |
| Spatial Streams | 2x2 MIMO on both 2.4 GHz and 5 GHz |
| Antenna Type | Omni-directional (5 GHz: 4.44 dBi, 2.4 GHz: 3.23 dBi) |
| Channel Width | 5 GHz: Auto/20/40/80/160 MHz, 2.4 GHz: Auto/20/40 MHz |
| Transmit Power | 5 GHz: ≤ 25.7 dBm, 2.4 GHz: ≤ 25 dBm (country-dependent) |

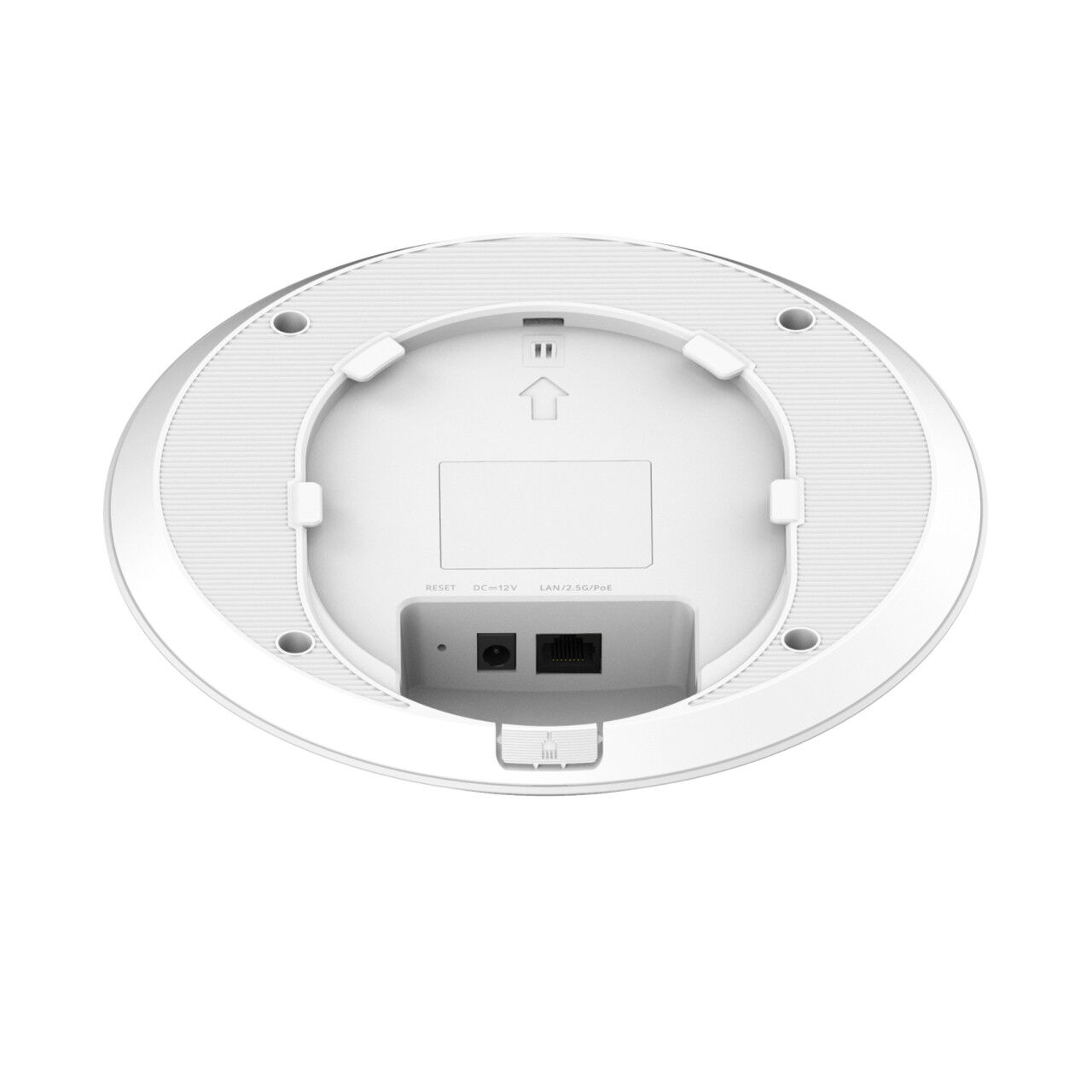

| Service Ports | 1 x 10/100/1000/2.5GBASE-T |
| Power Supply | 12 V DC, 1.5 A or 802.3af/802.3at PoE |
| Power Consumption | ≤ 14 W |
| Dimensions | Ø195 mm x 41 mm |
| Weight | ≤ 0.6 kg |
| Operating Temperature | 0°C to 40°C |
| IP Rating | IP41 |
| Management | Ruijie Cloud, Reyee App, Local Web Interface |
| Security | WPA3, WPA2, WPA, OWE, 802.1X |
| General Information | |
|---|---|
| Manufacturer: | Ruijie Reyee |
| Manufacturer Part Number: | RG-RAP72 |
| Barcode: | WIF-RY-00307 |
| Packaging Details | |
| Weight: | 0.90 KGS |
| Width: | 23.00 (cm) |
| Height: | 7.00 (cm) |
| Depth: | 25.00 (cm) |
(WIF-RY-00307)
| SKU | WIF-RY-00307 |
| Model # | RG-RAP72 |
| Barcode # | WIF-RY-00307 |
| Brand | Ruijie Reyee |
