Overview

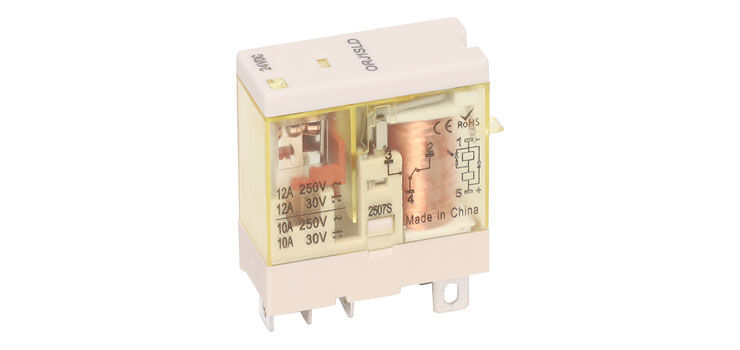

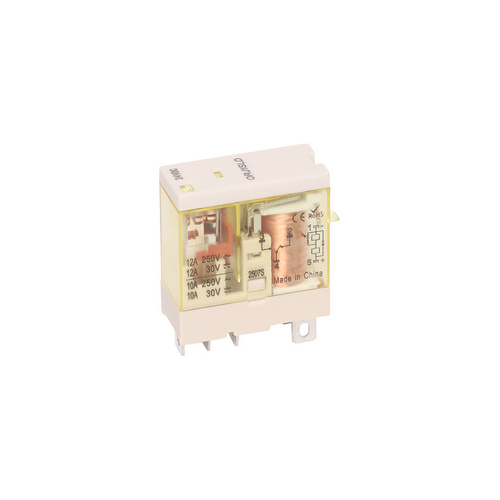

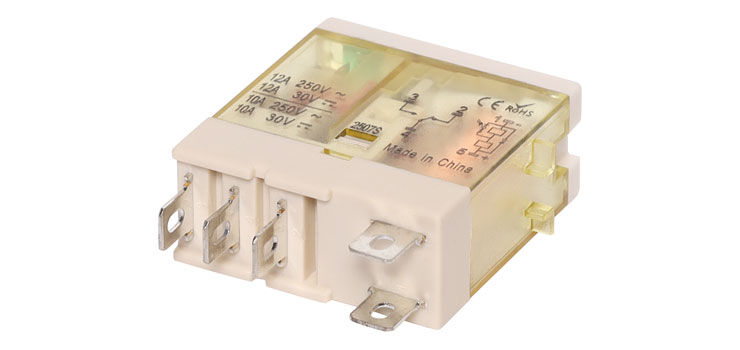

This 12A 24VDC SPST Cradle Relay acts like a simple on-off switch for a single electrical circuit. The cradle provides a secure mounting point and connection terminals for the relay, making it useful in applications like automotive electrical systems.

Specifications

  • Resistive Load: 12A/250V AC, 30V DC
  • Resistive switching power: 3000VA, 360W
  • Electrical Life: ?100,000 cycles
  • Initial contact resistance: ?50m?
  • Insulation resistance: ?100m? (500V DC)
  • Coil power: DC: About 0.53W. AC: About 0.9VA
  • Contact release time: AC: ?20ms. DC: ?10ms. Diode: ?20ms
  • Operating temperature: -40°C to 70°C
  • Impact resistance: Stability 98m/S². Strength 980m/S²
  • Installation: Plug-in Installation
  • Weight: ~20g

Power frequency withstand voltage:

  • Between contacts of the same pole: 1,500V AC, 1min
  • Between contacts of the opposite pole: 3,000V AC, 1min
  • Between contact and coil: 3,000V AC, 1min

Materials:

  • Contact: SIlver Alloy
  • Body: PC
  • Base: PBT

(SA4195)

SKU SA4195
Model # SA4195
Barcode # 9321758260692
