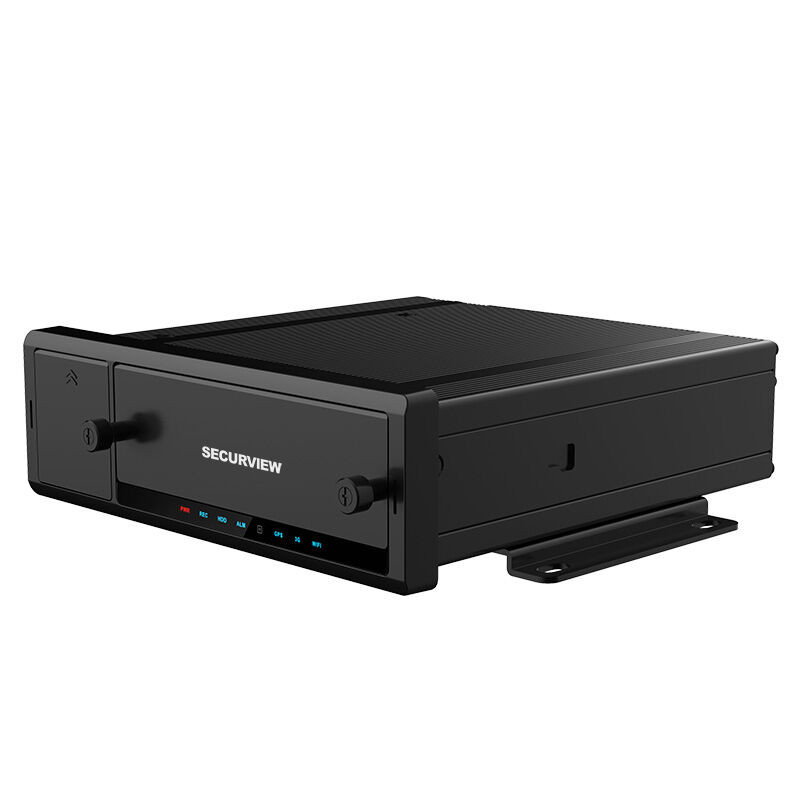

The MXVR-GPS8GW is an 8 channel mobile HDCVI DVR with support for a wide range of mobile cameras to suit your vehicle surveillance needs.

A part of the Mobile Series from Securview, this model combines Full HD video, precision GPS, 4G and WiFi connectivity to deliver peace of mind when on the road. This series offers wide compatibility with all mobile camera technologies, including HDCVI, AHD, TVI, composite or IP* cameras, so you can create a vehicle video solution to your exact requirements.

Product features:

• Records 8 channels at 2.0MP / Full HD 1080p up to 25fps
• Support for HDCVI, HDTVI, AHD or analogue cameras (via M12, 4-pin inputs)
• Support for 4CH additional PoE IP cameras via RJ45 inputs or via external switch (sold separately)
• GPS tracking coordinate overlay on footage, GPS/GLONASS, includes GPS antenna
• Built-in 4G radio for remote viewing & management (standard size SIM card sold separately)
• Built in 2.4GHz WiFi module for PC web-interface access, includes WiFi antenna
• Storage interface 2 x 2.5'' SATA HDD or SSD and standard SD card slot up to 512GB
• VGA (M16, 10-pin connector),composite (M12, 4-pin) or coaxial (M12, 7-pin) display outputs
• Up to 8 alarm inputs and 1 pulse input, with 1 relay output and 1 controllable output
• Supports HDCVI camera audio inputs as well as 1 external microphone input
• Features RS485, RS232 and CAN auxiliary inputs
• Robust, lockable housing with vibration-dampening design
• Heavy duty M12 video input connectors
• Single DIN size for standardised installation in vehicles

*DVRs include 4 year warranty; HDDs/SSDs and SD Card include 1 year warranty

Specifications

General

• Main Processor - Embedded Processor
• Operating System - Embedded Linux
• Video Input - 8 channels HDCVI / Analogue (M12, 4-pin), 4 channels IP (RJ45)
• Camera Configuration (Coaxial) - 8 channels, up to 2.0MP / 1080p resolution
• Camera Configuration (Network) - 4 channels, up to 2.0MP / 1080p resolution (via 4 x RJ45 input, or via 6-pin ETH2 port cable/switch sold separately)

Display

• Video Output - 1 x VGA (M16, 10-pin), 1 x Composite (M12, 4-pin), 1 x Coaxial (M12, 7-pin)
• Display Resolution - 1920 x 1080 to 800 x 600
• Display Split - 1 / 4 / 8 / 9 / 16
• OSD - Channel, time, GPS position, license plate

Recording

• Recording Resolution - Main: Up to 1080p (1920 x 1080), Sub: Up to D1 (720 x 576)
• Frame Rate - 1 ~ 25fps
• Video Compression - H.265 / H.264
• Playback Sync - 1 / 4
• Backup Modes - USB Device / Network

Interface

• Storage Capacity - 2 x 2.5’’ SATA ports for HDD/SSD, 1 x SD card slot, up to 512GB
• Alarm Interface - Up to 8 channels local input and 1 channel pulse input, 1 controllable 12V 0.75A output, 1 relay output
• Audio Interface - Supports HDCVI audio cameras and 1 external microphone input
• USB Interface - 2 x USB3.0 (front), 1 x USB2.0 (rear, via extend port)
• GPS - GPS/GLONASS Satellite Positioning, 1 x SMA GPS Antenna
• Auxiliary Inputs - 2 x RS232, 1 x RS485, 1 x CAN

Network

• Ethernet - 1 x RJ45 port 100/1000M (front), 4 x RJ45 port 100M & 1 x 6-pin ETH2 port (rear)
• WiFi - Built-in WiFi module, 1 x 2.4GHz WiFi SMA Antenna
• Network Functions - TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
• Max. User Access - 128 users
• Remote View - iOS (iPhone, iPad); Android devices; PC applications and via web interface

Environmental

• Power Supply - 6 ~ 36VDC
• Power Consumption - <12W (no peripherals)
• Operating Conditions - -30 ~ +70°C / 0~90%RH
• Dimensions (WxDxH) - 180 x 190 x 50mm / 1 DIN (Front Panel 190 x 60mm)
