Overview

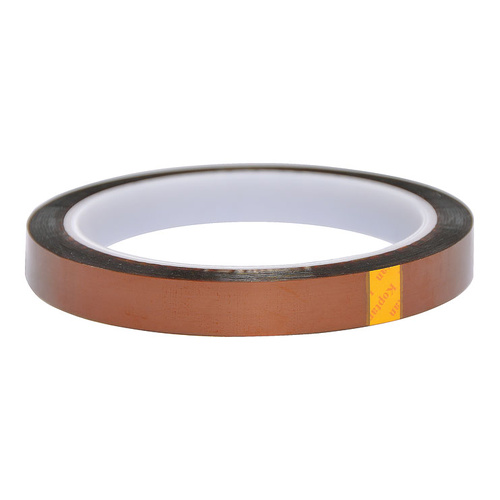

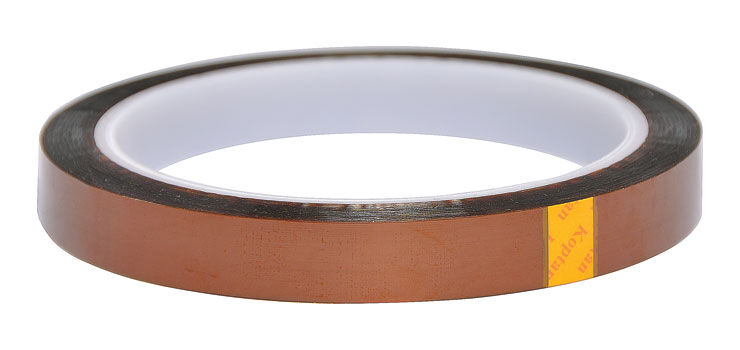

These 33m rolls of 12mm wide, high temperature polyimide tape offer high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue, making it ideal for use in electrical insulation or masking circuit boards during wave soldering.

Typical Applications

• Magnet wire and cable
• Slot liner insulation
• lnter-layer insulation in motors and transformers
• Flexible PCBs
• Solder masking
• 3D printing

Specifications

• Total Thickness: 60±2µm
• Backing Thickness: 25µm
• Initial Tack: 25±2
• Adhesion to Steel: 6.5±1
• Holding Power: ?72hrs
• Tensile Strength: 90
• Elongation at Break: 70%
• Max Temperature resistance: 260*C
• Tape Structure: Silicon adhesive Pi film
