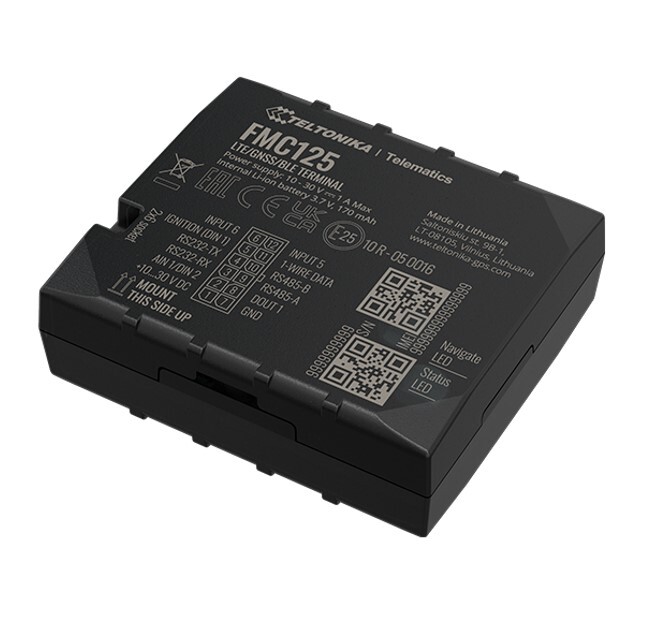

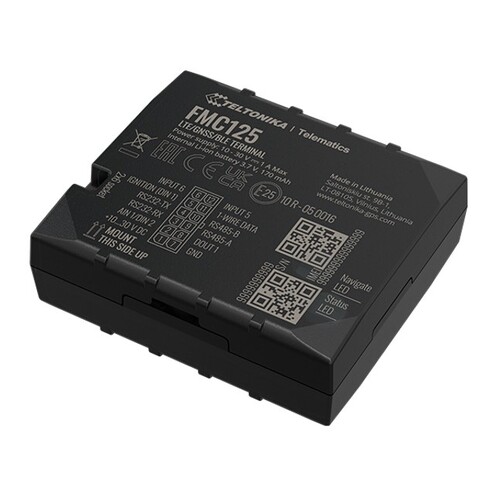

Teltonika FMC125 ADVANCED LTE TERMINAL WITH GNSS AND LTE/GSM CONNECTIVITY, RS485/RS232 INTERFACES AND BACKUP BATTERY

  Features

• RS232/RS485 serial interfaces for fuel monitoring and other external data reading
• Dual SIM considerably reduces roaming costs
• Impulse input for reading fuel flow meter data and precisely controlling fuel usage
• Connecting via RS232 to get videos and pictures of the events that might happen on the road or inside a vehicle

  PRODUCT SPECIFICATIONS

 Module

• Name: FMC125-MBIB0: MeiG SLM320-E with Teltonika TM2500

                      FMC125-MCIB0: MeiG SLM320-LA with Teltonika TM2500

• Technology: LTE CAT1/GSM/GPRS/GNSS/BLUETOOTH® LE
• Data support: SMS (text/data)
• Input voltage range: 10 - 30 V DC with overvoltage protection

GNSS

• GNSS: : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: 33 tracking channels,99 acquisition channels
• Tracking sensitivity: -165 dBM
• Position Accuracy: < 2.5 m CEP
• Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s

Cellular

• Technology: LTE CAT 1, GSM
• 2G bands: FMC125-MBIB0: GSM: B2/B3/B5/B8

                            FMC125-MCIB0: GSM: B2/B3/B5/B8

• 4G LTE bands: FMC125-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28,LTE-TDD:B38/B40/B41

                                   FMC125-MCIB0:LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28,LTE-TDD:B40

Data transfer

• LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
• LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
• GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
