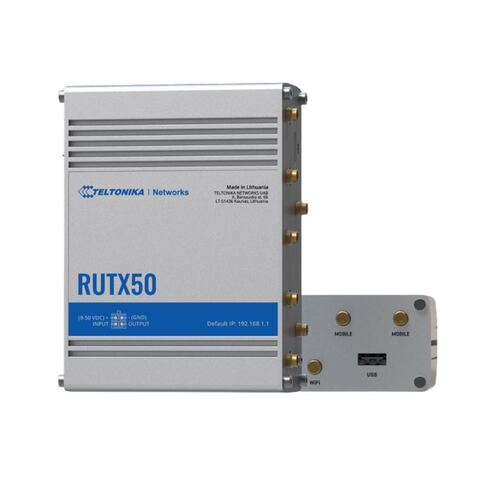

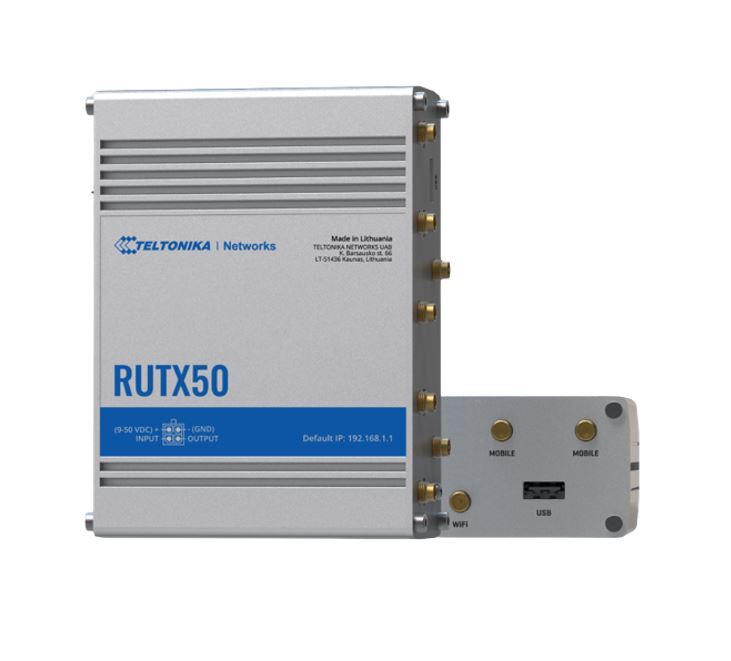

Teltonika RUTX50 Industrial 5G Router, 5G dual SIM cellular, 5 Gigabit Ethernet ports, dual-band WI-Fi, PSU included

RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.

System Characteristics

• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM: 256 MB
• FLASH storage: 256 MB

Input/Output

• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate event

Physical Interfaces

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
• SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
• Power: 1 x 4-pin power connector
• Antennas: 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
• USB: 1 x USB A port for external devices
• Reset: Reboot/User default reset/Factory reset button
• Other: 1 x Grounding screw

Physical Specification

• Casing material: Aluminium housing
• Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
• Weight: 533 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
