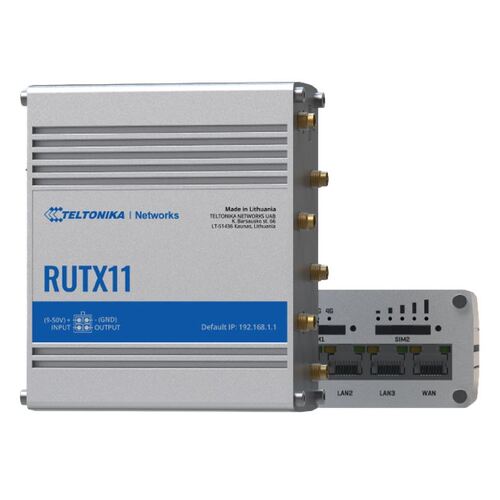

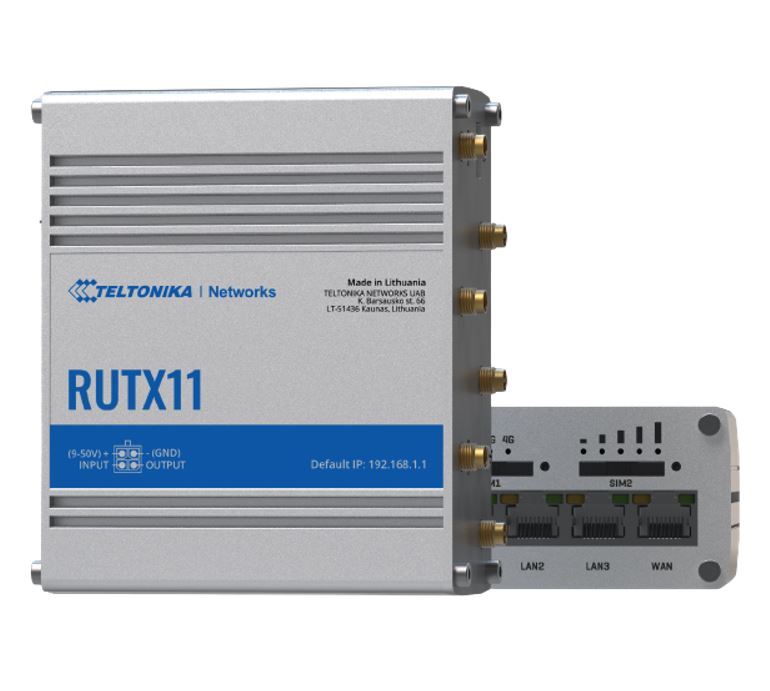

Teltonika RUTX11 Industrial Cellular Router, 4G LTE CAT 6, Dual SIM with auto failover, Backup WAN, Dual Band WiFi, Bluetooth LE, PSU included

This powerful LTE Cat 6 cellular router is designed for professional applications requiring reliable, fast connection and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC Wi-Fi, Bluetooth LE, and is EN 45545-2-certified, making it approved for use in passenger trains across Europe.

System Characteristics

• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM: 256 MB, DDR3
• FLASH storage: 256 MB, SPI Flash
• Input/Output
• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate event

Physical Interfaces

• Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
• Power: 1 x 4-pin power connector
• Antennas: 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
• USB: 1 x USB A port for external devices
• Reset: Reboot/User default reset/Factory reset button
• Other: 1 x Grounding screw

Physical Specification

• Casing material: Aluminium housing
• Dimensions (W x H x D): 115 x 44.2 x 95.1 mm
• Weight: 456 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
