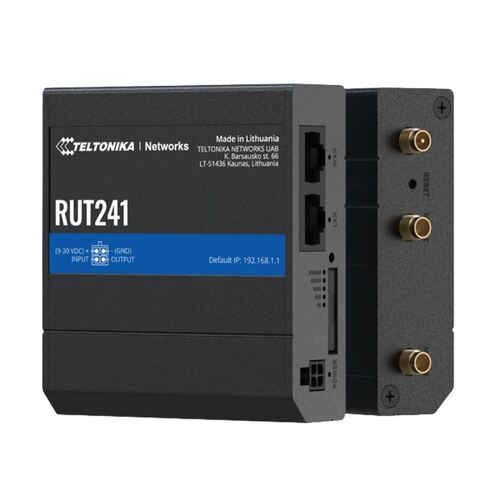

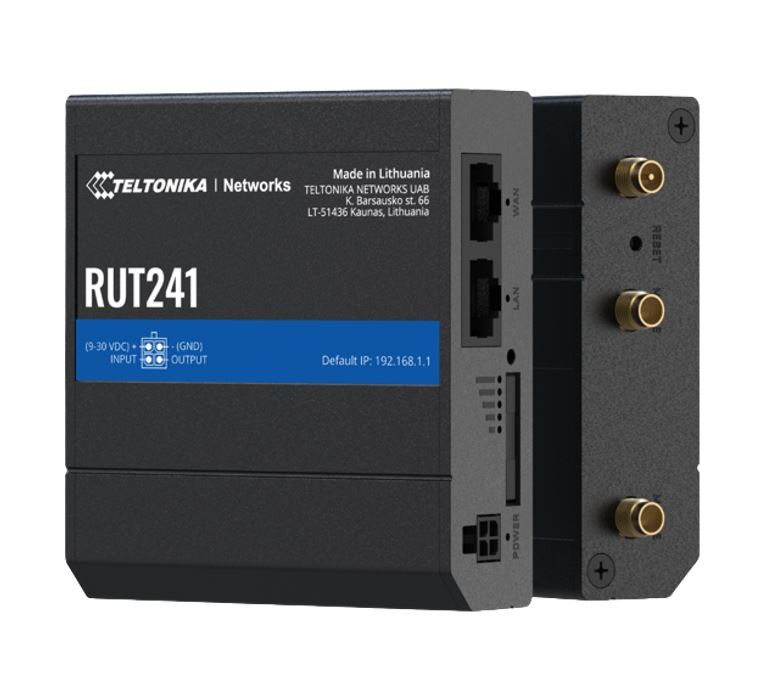

Teltonika RUT241 Industrial Cellular Router, Instant LTE Failover, Compact and Powerful Industrial 4G LTE Router/Firewall, PSU included

The RUT241 is a compact, industrial-grade cellular router designed for reliable and versatile connectivity in IoT and M2M applications. RUT241 features rugged design, multiple connection interfaces including 4G LTE, Wi-Fi, and two Ethernet ports, as well as full compatibility with Teltonika’s Remote Management System (RMS). With support for automatic WAN failover and advanced RutOS software, the RUT241 enables continuous connectivity and solution automation through its digital inputs and outputs. RUT241 includes eSIM™ functionality based on the SGP.22 architecture, allowing up to seven eSIM™ profiles alongside a physical SIM card—easily managed via WebUI and RMS—offering even greater flexibility for global deployment. A non-eSIM™ version is also available - see the order code for details.

Input/Output

• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler:Allows to set certain I/O conditions to initiate event

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
• Power consumption: < 6.5 W Max

Physical Interfaces:

• Ethernet: 2 x RJ45 ports, 10/100 Mbps
•  I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
• Power: 1 x 4-pin power connector
• Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing, plastic panels
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 125 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30
