3W QUICK CONNECT EMERGENCY EXIT LIGHT

WITH UP TO 90 MINUTES OF EMERGENCY BACKUP

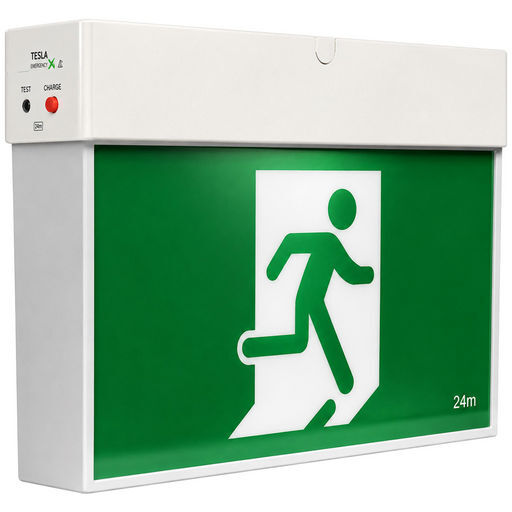

The Tesla Hellcat Essential Quick Connect Exit Light is a low-profile LED emergency exit fitting designed for fast installation and compliant emergency egress in commercial, industrial, and public buildings. Operating on 240V AC, 50Hz, it features a long-life, energy-efficient 3W LED delivering a 24m viewing distance. Rated to AS 2293 with a classification of C0=D12.5 and C90=D8, the fitting is supplied as a complete one-box solution with single- and double-sided running man pictograph and EXIT decals for flexible wall and ceiling mounting. Its quick-connect design, large terminal block, and generous cable entry simplify installation, while the durable polycarbonate construction and manual test switch provide a reliable, low-maintenance emergency lighting solution.

• Quick connect LED emergency exit light.
• One box solution with single and double-sided decal options.
• Running Man and EXIT signage supplied
• 240V, 50Hz operating voltage.
• With 3.2V 1.5A backup battery.
• Low 3W standby power consumption.
• 24m viewing distance.
• Durable polycarbonate housing.
• Manual test switch operating system.
• Wall or ceiling mounting.
• Large terminal block and cable entry.
• AS 2293 classification C0=D12.5, C90=D8.
• Dimensions 338x206mmx66mm
