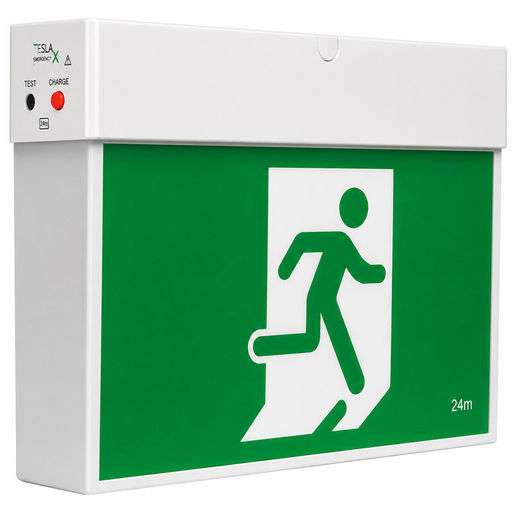

3W QUICK CONNECT EMERGENCY EXIT LIGHT

WITH AUTOMATIC SELF TESTING

The Tesla Hellcat Select Quick Connect Exit Light with Self-Testing is a low-profile LED emergency exit fitting designed for rapid installation and compliant emergency egress in commercial, industrial, and public buildings. Operating on 240 V AC, 50 Hz, the fitting features a long-life, energy-efficient 3 W LED, providing a viewing distance of 24 metres. The integrated self-testing function automatically performs routine checks to support ongoing compliance and reduce maintenance. Its quick-connect wiring system and one-box design, complete with single- and double-sided running man pictographs and EXIT decals, simplify installation while supporting both wall and ceiling mounting. The fitting is constructed from durable polycarbonate for indoor applications.

• Quick connect LED emergency exit light.
• One-box design with single- and double-sided decals included.
• Running Man and EXIT signage supplied.
• 240V, 50Hz operating voltage.
• With 3.2V 1.5A backup battery.
• Low 3W standby power consumption.
• 24m viewing distance.
• Polycarbonate body with polycarbonate diffuser.
• Integrated self-testing automatically performs routine checks.
• Wall or ceiling mounting.
• Large terminal block and cable entry.
• AS 2293 classification C0=D12.5, C90=D8.
• Dimensions: 338x206x66mm.
