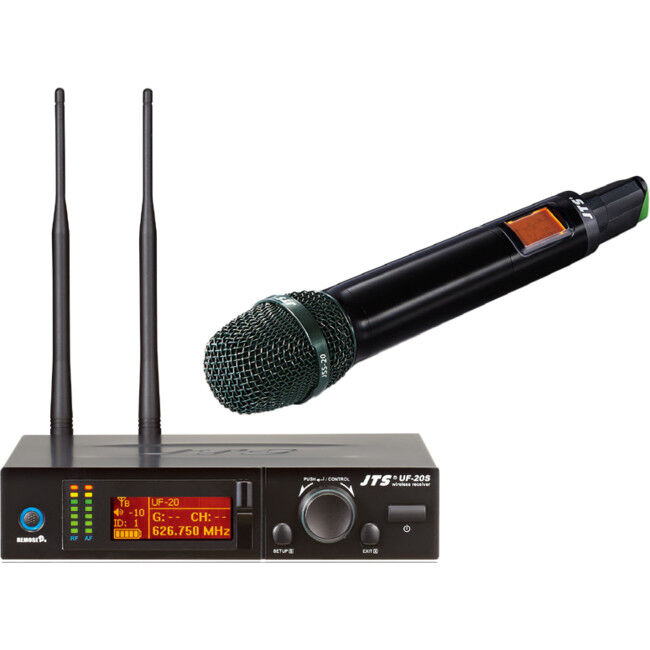

UF20S TRUE DIVERSITY SINGLE CH KIT 624-694MHZ

UHF True diversity technology renders 200-480 meters of operation distance
Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
Preset 15 groups each of up to 63 compatible channels
User programmable 6 groups each of 64 channels
Free space scan function
JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:

The is now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
RF “NO SIGNAL” alert function.
AF “MUTE” alert function.
Transmitter “LOW BATTERY” alert function.
Built in equalizer

Frequency Preparation	PLL Synthesized Control
Frequency setting	JTS patented obstacles-free RF REMOSET
Carrier Frequency range	UHF470-960MHz
Channel	Single
Bandwidth	60~75MHz Wideband
S / N Ratio	> 108dB (A)
THD	<0.5% @ 1KHz
Chasis	1U/2U standard metal chassis
Preset channels group	From group 1 ~ 15 up to 63 interference-free compatible channels. 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth. User programmable from U1 ~ U6 each of 64 channels reserved.
Display	LCD
Display Contents	Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity	6dBµV, at S / N> 80dB
Receiving mode	True Diversity
Audio output level	Maximum 6dBu
AF output impedance	600Ω
Frequency Response	50Hz ~ 18kHz, with high-pass filter
Squelch	Pilot Tone & Noise Mute
Power supply	100 ~ 240V or 12V DC

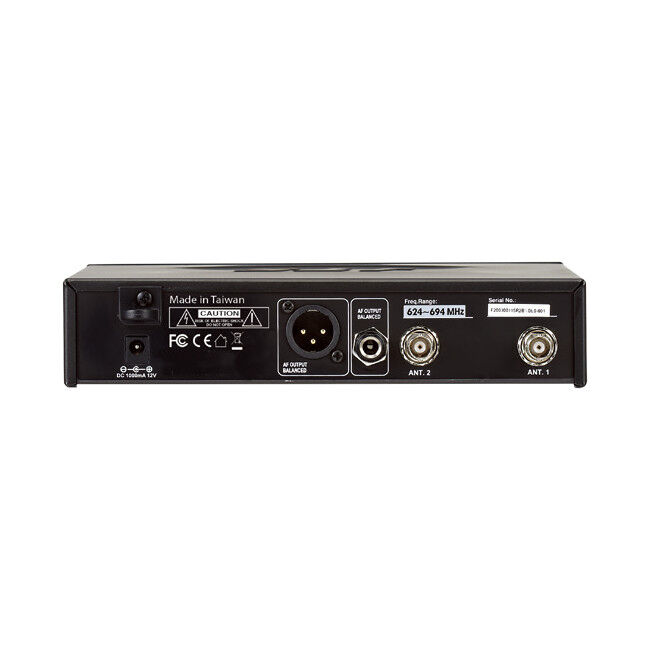

Output connector	1 XLR Balanced Socket 1 Ø6.3mm Unbalanced phone jack
Dimensions	212mm(W)x44Mmm(H)x213.9mm(D)

NOTES:	Actual product specifications may vary depending on model and region.

NEWEST FEATURE :

Low cut function.

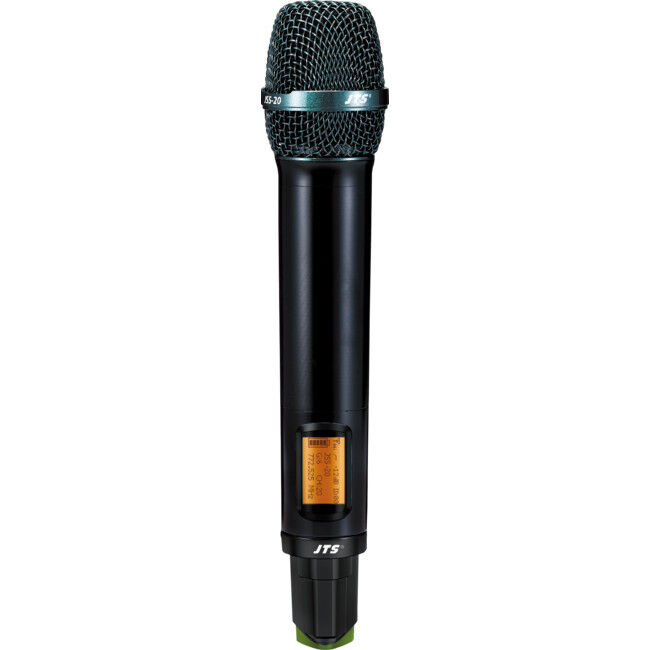

JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
Interchangeable capsule design for various choices including some classic capsule modules.
It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

Frequency Preparation	PLL Synthesized Control
Carrier Frequency range	UHF 470-960MHz
Bandwidth	60~75MHz Wideband
RF Outputs	Low / High
Stability	< ±10KHz
Frequency Deviation	± 48KHz (Peak)

LCD Display	Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls	Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector	4P Mini XLR
Spurious emissions	<-50 DBC
Audio Frequency response	50Hz ~ 18k Hz
Battery	AA NiMH x2
Dimensions	50mm (W) x253mm (H) x35.5mm (D)
Weight	350g

Notes	Actual product specifications may vary depending on model and region.
